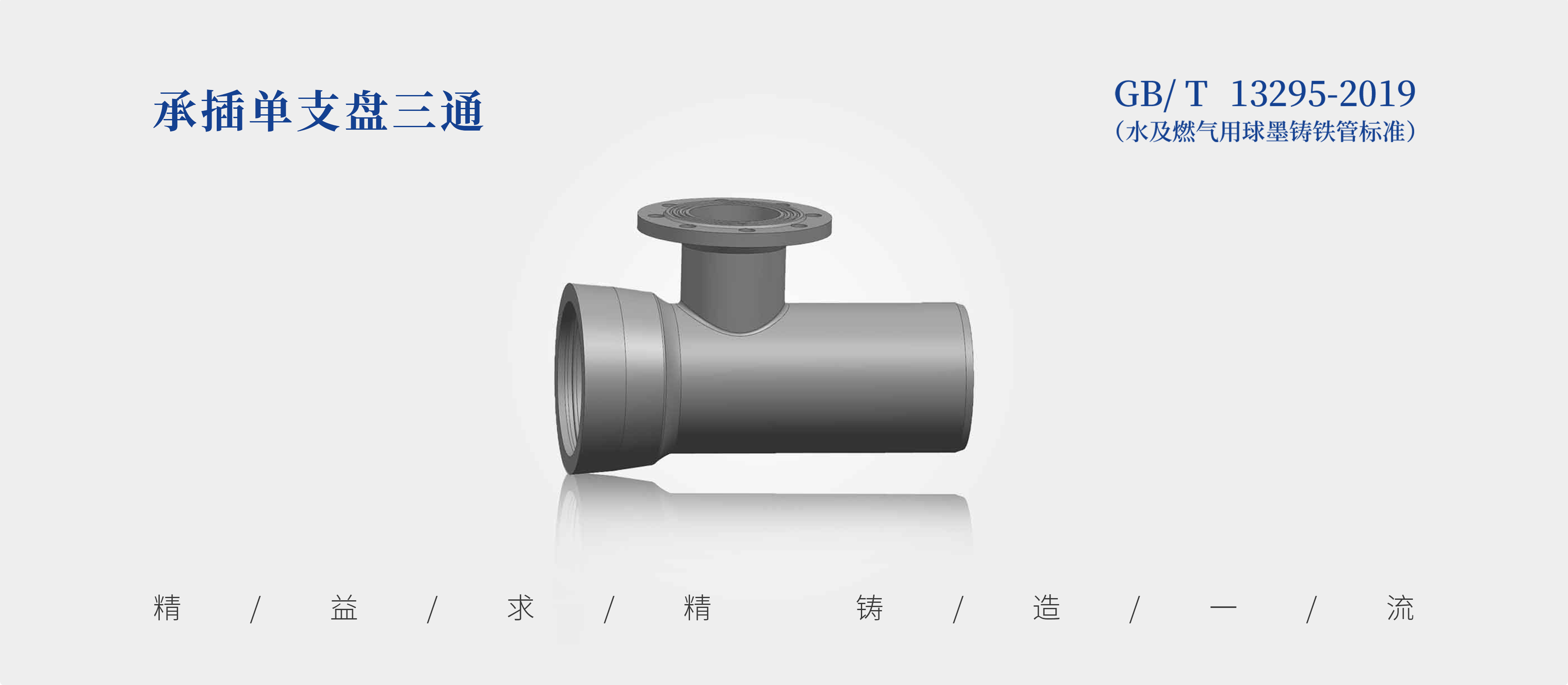

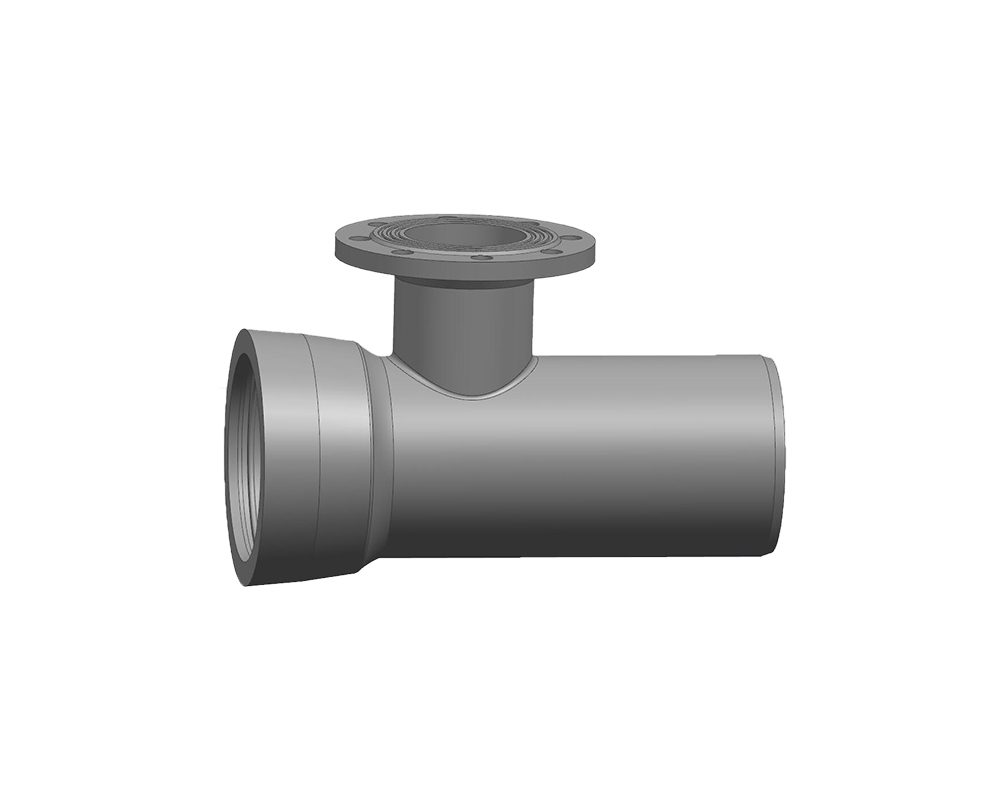

Socket-and-Spigot Tee with Flanged Branch

Multi-photo catalogue · Technical reference · Export quotation

Product enquiry

Supply coordination by Aurorvix. Specify DN, PN, connection, dimensions, quantity and delivery port. Technical figures and connection type require order-specific confirmation.

Request a Quote Email Aurorvix

01 · Parameters

Technical Parameters

Product	Ductile cast-iron fitting
Model / type	Socket-and-Spigot Tee with Flanged Branch
Reference standard on source page	GB/T 13295-2019
Internal protection	Cement mortar
External protection	Zinc spray
Connection	The source lists a generic socket connection; verify whether the ordered product includes flanged ends and confirm exact joint drawings.
Applications	Municipal pipeline and water infrastructure; project suitability to be confirmed

02 · Details

Technical drawings and weight references

English table of printed original-product mass references. Quotation and technical approval required before purchase.

Select a source-chart main size to jump to its weight rows. On narrow screens, swipe the table sideways to see all columns.

Main size (source)	Branch size (source)	PN10 nominal mass (kg)	PN16 nominal mass (kg)	PN25 nominal mass (kg)
80	80	14	14	14
100	80	16.4	16.4	16.4
100	100	17.8	17.8	17.8
150	80	23.7	23.7	23.7
150	100	25.4	25.4	25.1
150	150	30.2	30.2	30.2
200	80	32.5	32.5	32.5
200	100	34.3	34.3	34.3
200	150	40.2	40.2	40.2
200	200	46.6	47	48.5
250	80	43.4	43.4	43.4
250	100	44.9	44.9	45
250	150	57.3	57.3	58.3
250	200	57.7	57.9	59.7
250	250	65.7	66.7	70.2
300	80	51.7	51.7	51.7
300	100	57.5	62	62.6
300	150	70.9	71.9	71.9
300	200	73.5	77.6	79.4
300	250	85.5	87	90.6
300	300	91.9	97.9	112.7
350	80	57	57	57
350	100	70.2	72.7	73.2
350	150	85.2	85.2	85.2
350	200	87.7	88.7	90.5
350	250	106	116	127
350	300	114	120	131
350	350	121	123.3	132
400	80	81.6	81.6	81.6
400	100	84.2	84.2	84.2
400	150	99.8	99.8	99.6
400	200	105	104	106
400	250	120	120	123
400	300	134	133	139
400	350	144	146	155
400	400	151	158.5	167.7
450	80	97.2	97.2	97.2
450	100	106	107	107
450	150	120	120	124
450	200	130	130	132
450	250	141	140	144
450	300	156	155	161
450	350	165	168	177
450	400	180	185	196
450	500	191	199	215
500	80	114	114	114
500	100	116	116	116
500	150	138	138	138
500	200	142	141	143
500	250	165	164	168
500	300	178	178	183
500	350	192	195	203
500	400	198	204	215
500	450	219	227	243
500	500	231	246	258
600	80	166	162.7	163
600	100	166	166	167
600	150	183	183	184
600	200	184	184	186
600	250	215	215	219
600	300	231	230	235
600	350	247	250	258
600	400	253	258	269
600	450	279	288	303
600	500	299	303	326
600	600	333	359	373
700	80	238	238	238
700	100	242	242	243
700	150	246	246	247
700	200	249	249	251
700	250	275	275	278.5
700	300	300	300	306
700	350	312	315	324
700	400	329	338	344
700	450	369	378	391
700	500	391	406	418
700	600	421	445	456
700	700	476	487	525
800	80	299	299	299
800	100	304	304	305
800	150	308	308	309
800	200	311	311	313
800	250	351	351	355
800	300	371	371	377
800	350	388	390.5	399
800	400	405	410	421
800	450	463.5	473.5	485
800	500	522	537	549
800	600	588	612	624
800	700	620	635	669
800	800	640	655	708
900	80	356.1	356.1	356.1
900	100	378	364.9	365.4
900	150	381	391.3	392.2
900	200	385	416.6	418.4
900	250	455	443.4	447
900	300	455	467.2	482.4
900	350	494.1	496.9	504.8
900	400	497	529.2	538.4
900	450	547.6	556.5	567.3
900	500	666	594.7	605.1
900	600	758	670.4	682.8
900	700	788	713.4	746.1
900	800	835	794.1	840.1
900	900	961	874.8	930.8
1000	80	434.6	434.6	434.6
1000	100	461	448.4	448.9
1000	150	464	475.8	476.7
1000	200	467	505.2	507
1000	250	521	536.5	540.1
1000	300	552	536.9	579.1
1000	350	595.3	598.1	606
1000	400	598	634.7	643.9
1000	450	657.1	666.4	676.8
1000	500	852	708.7	719.1
1000	600	958	793	805.4
1000	700	985	843.8	876.1
1000	800	1006	929	975
1000	900	1052	1013	1069
1000	1000	1072	1133	1206
1200	80	649.9	649.9	649.9
1200	100	676	663.5	664.1
1200	150	678	704.7	705.7
1200	200	682	739.3	741.1
1200	250	725	781.1	784.7
1200	300	769	823.2	838.4
1200	350	861.1	863.9	871.8
1200	400	852	909.1	918.3
1200	450	943.9	953.2	963.6
1200	500	968	1009	1019
1200	600	1031	1116	1128
1200	700	1169	1173	1205
1200	800	1227	1285	1331
1200	900	1367	1373	1435
1200	1000	1436	1514	1586
1200	1200	1682	1768	1859
1400	80	979.3	979.3	979.3
1400	100	1120	1023	1023
1400	150	1154	1079	1080
1400	200	1189	1128	1128
1400	250	1164	1163	1167
1400	300	1273	1229	1245
1400	350	1281	1284	1292
1400	400	1357	1340	1349
1400	450	1385	1394	1405
1400	500	1449	1458	1469
1400	600	1478	1598	1610
1400	700	1652	1666	1698
1400	800	1709	1801	1847
1400	900	1879	1901	1957
1400	1000	1956	2047	2140
1400	1200	2375	2340	2430
1400	1400	2697	2617	2757
1600	80	1605	1605	1605
1600	100	1261	1612	1612
1600	150	1646	1646	1647
1600	200	1361	1658	1660
1600	250	1725	1724	1728
1600	300	1786	1785	1801
1600	400	1561	1934	1943
1600	500	2066	2080	2091
1600	600	1831	2146	2158
1600	800	2121	2353	2399
1600	1000	2416	2659	2732
1600	1200	2743	3007	3098
1600	1400	3073	3331	3471
1600	1600	3461	3767	3927

167 PN10/PN16/PN25 nominal mass reference rows transcribed from this product's archived charts: 16891521192713.jpg, 16891521191573.jpg, 16891521191338.jpg and 16891521199339.jpg. Source anomalies have deliberately not been corrected: for example DN900/100 PN10 = 378 kg exceeds PN16 = 364.9 kg, DN1000/500 PN10 = 852 kg exceeds PN16 = 708.7 kg, DN1400/100 PN10 = 1120 kg, and the chart lists DN450/500. These are supplier chart figures, not independently verified weights or certified drawings. Confirm DN, PN, connection arrangement, dimensions and actual weight with the manufacturer before commercial quotation or purchase.

Manufacturing process overview

Moulding and castingSource-described sand preparation, moulding and pouring

FinishingMachining, surface treatment and corrosion protection

InspectionDimensions and testing subject to project specification
