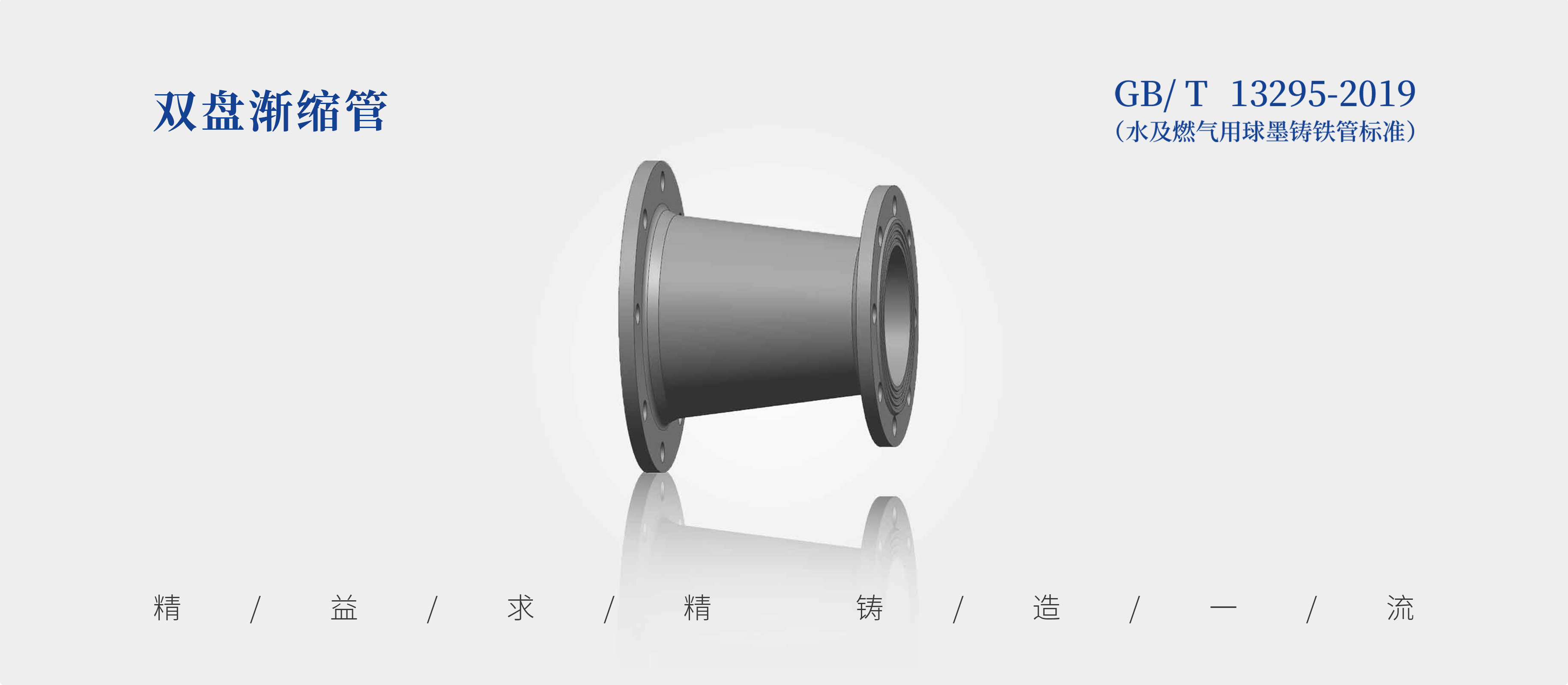

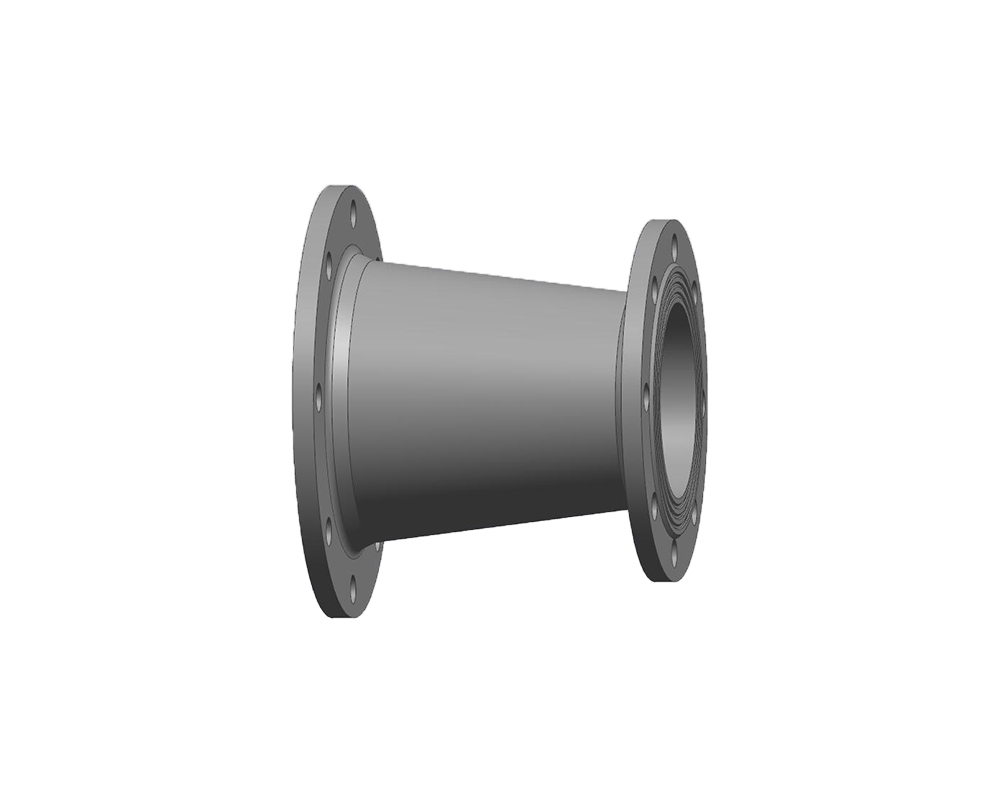

Double-Flanged Reducer
Multi-photo catalogue · Technical reference · Export quotation
Product enquiry
Supply coordination by Aurorvix. Specify DN, PN, connection, dimensions, quantity and delivery port. Technical figures and connection type require order-specific confirmation.
Technical Parameters
| Product | Ductile cast-iron fitting |
|---|---|
| Model / type | Double-Flanged Reducer |
| Reference standard on source page | GB/T 13295-2019 |
| Internal protection | Cement mortar |
| External protection | Zinc spray |
| Connection | Original page says socket-type even for flange-designated products; confirm the actual joint from drawing |
| Applications | Municipal pipeline and water infrastructure; project suitability to be confirmed |
Technical drawings and weight references
The archived manufacturer's image chart has been rebuilt as a searchable English HTML table. Figures require checking against approved order specifications.
| Size A (source) | Size B (source) | Nominal mass (kg) |
|---|---|---|
| 100 | 80 | 9.3 |
| 125 | 80 | 11 |
| 125 | 100 | 11.3 |
| 150 | 80 | 15 |
| 150 | 100 | 16 |
| 150 | 125 | 14 |
| 200 | 100 | 21 |
| 200 | 125 | 21 |
| 200 | 150 | 22 |
| 250 | 100 | 28.5 |
| 250 | 125 | 31 |
| 250 | 150 | 31 |
| 250 | 200 | 30 |
| 300 | 100 | 42 |
| 300 | 150 | 41 |
| 300 | 200 | 41 |
| 300 | 250 | 40.5 |
| 350 | 100 | 55 |
| 350 | 150 | 54 |
| 350 | 200 | 54 |
| 350 | 250 | 52 |
| 350 | 300 | 49.5 |
| 400 | 100 | 68 |
| 400 | 150 | 67 |
| 400 | 200 | 69 |
| 400 | 250 | 68 |
| 400 | 300 | 66 |
| 400 | 350 | 58 |
| 450 | 100 | 90 |
| 450 | 150 | 91 |
| 450 | 200 | 92 |
| 450 | 250 | 91 |
| 450 | 300 | 90 |
| 450 | 350 | 88 |
| 450 | 400 | 72.4 |
| 500 | 100 | 130 |
| 500 | 150 | 128 |
| 500 | 200 | 120 |
| 500 | 250 | 120 |
| 500 | 300 | 115 |
| 500 | 350 | 113 |
| 500 | 400 | 110 |
| 500 | 450 | 115 |
| 600 | 100 | 108 |
| 600 | 150 | 165 |
| 600 | 200 | 166 |
| 600 | 250 | 165 |
| 600 | 300 | 165 |
| 600 | 350 | 161 |
| 600 | 400 | 160 |
| 600 | 450 | 155 |
| 600 | 500 | 149 |
| 700 | 500 | 214 |
| 700 | 600 | 195 |
| 800 | 600 | 272 |
| 800 | 700 | 250 |
| 900 | 700 | 338 |
| 900 | 800 | 308 |
| 1000 | 800 | 412 |
| 1000 | 900 | 373 |
| 1200 | 1000 | 586 |
| 1400 | 1200 | 814 |
| 1600 | 1400 | 1103 |
English reference table transcribed from the archived technical source image. Both size columns reproduce the source's grouped specification values; their engineering orientation must be confirmed against drawings. The source lists 600/100 as 108 kg (lower than 500/100); retain as printed pending manufacturer confirmation. Nominal masses are not guaranteed dispatch weights; confirm all project data with the quotation.
Manufacturing process overview
Email / Request a Quote
Double-Flanged Reducer
Send size, pressure class, quantities and port.
Email: samson@aurorvix.com
