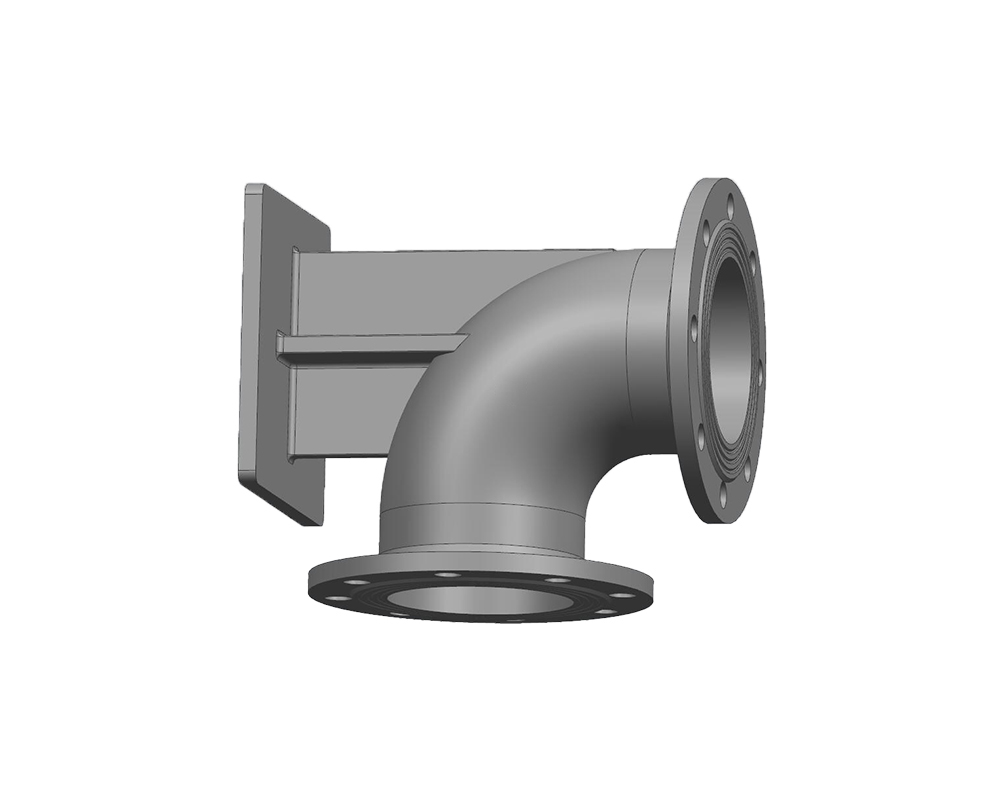

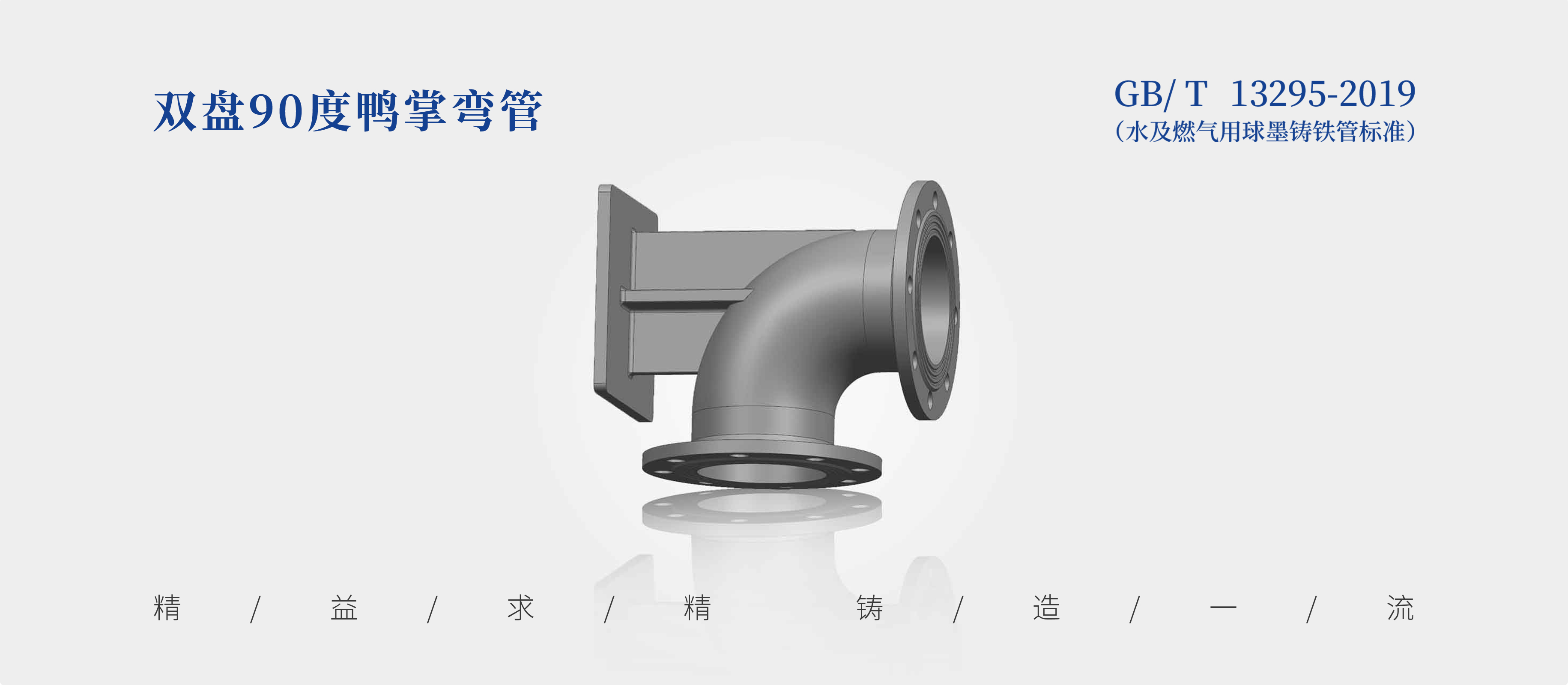

Double-Flanged 90° Duckfoot Bend
Multi-photo catalogue · Technical reference · Export quotation
Product enquiry
Supply coordination by Aurorvix. Specify DN, PN, connection, dimensions, quantity and delivery port. Technical figures and connection type require order-specific confirmation.
Technical Parameters
| Product | Ductile cast-iron fitting |
|---|---|
| Model / type | Double-Flanged 90° Duckfoot Bend |
| Reference standard on source page | GB/T 13295-2019 |
| Internal protection | Cement mortar |
| External protection | Zinc spray |
| Connection | Original page says socket-type even for flange-designated products; confirm the actual joint from drawing |
| Applications | Municipal pipeline and water infrastructure; project suitability to be confirmed |
Technical drawings and weight references
The archived manufacturer's image chart has been rebuilt as a searchable English HTML table. Figures require checking against approved order specifications.
| Source nominal size | PN10 mass (kg) | PN16 mass (kg) | PN25 mass (kg) |
|---|---|---|---|
| 80 | 11.4 | 14.1 | 14.1 |
| 100 | 17.8 | 17.8 | 18.8 |
| 125 | 23.5 | 23.5 | 24.5 |
| 150 | 30 | 30 | 32 |
| 200 | 46.5 | 46 | 50.5 |
| 250 | 75 | 75 | 82 |
| 300 | 106 | 105 | 116 |
| 350 | 139 | 145 | 162 |
| 400 | 178 | 189 | 212 |
| 450 | 229 | 249 | 275 |
| 500 | 283 | 313 | 337 |
| 600 | 428 | 481 | 509 |
| 700 | 700 | 741 | 811 |
| 800 | 846 | 884 | 982 |
| 900 | 1118 | 1165 | 1286 |
| 1000 | 1698 | 1781 | 1937 |
English reference table transcribed from the archived technical source image. PN values are column labels of the original mass chart; they are not a standalone certification of pressure rating. Confirm PN compatibility and base support geometry. Nominal masses are not guaranteed dispatch weights; confirm all project data with the quotation.
