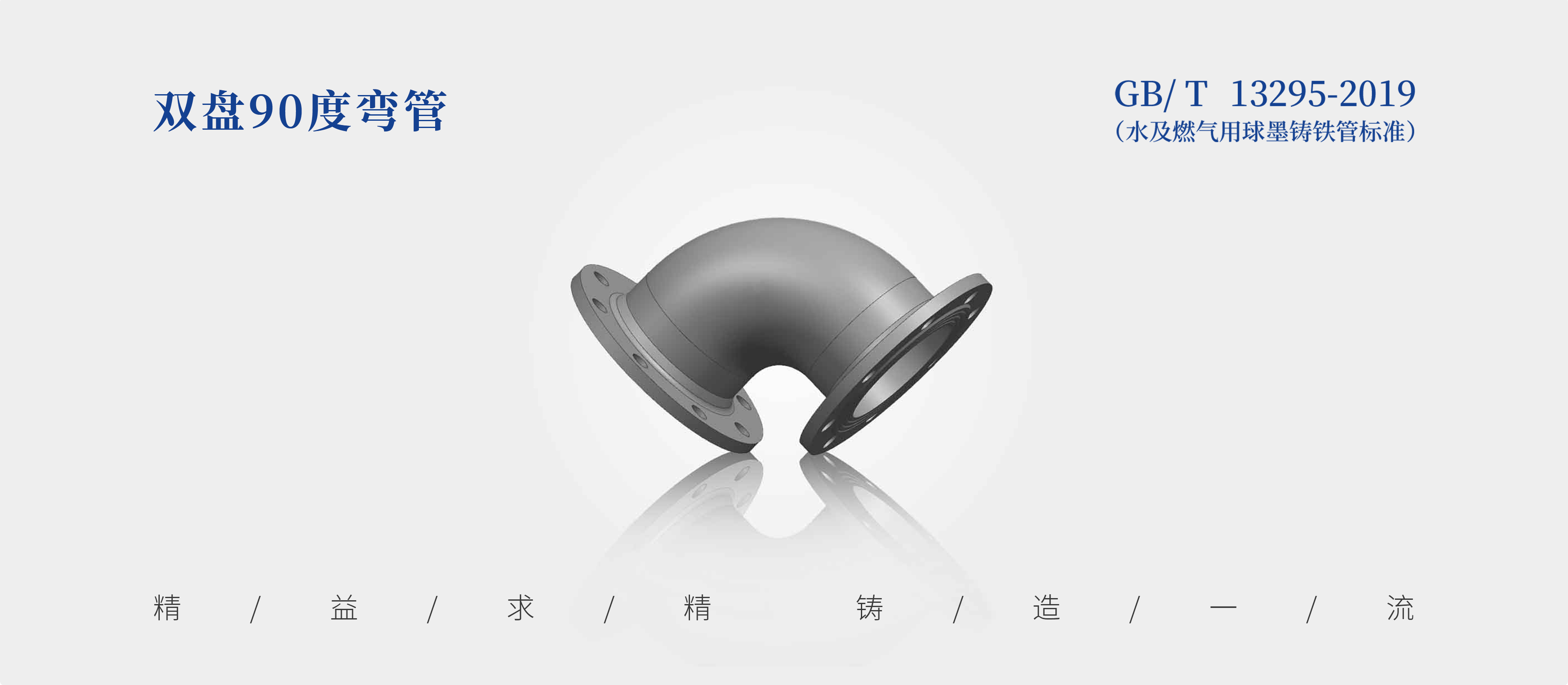

Double-Flanged 90° Bend
Multi-photo catalogue · Technical reference · Export quotation
Product enquiry
Supply coordination by Aurorvix. Specify DN, PN, connection, dimensions, quantity and delivery port. Technical figures and connection type require order-specific confirmation.
01 · Parameters
Technical Parameters
| Product | Ductile cast-iron fitting |
|---|---|
| Model / type | Double-Flanged 90° Bend |
| Reference standard on source page | GB/T 13295-2019 |
| Internal protection | Cement mortar |
| External protection | Zinc spray |
| Connection | Original page says socket-type even for flange-designated products; confirm the actual joint from drawing |
| Applications | Municipal pipeline and water infrastructure; project suitability to be confirmed |
02 · Details

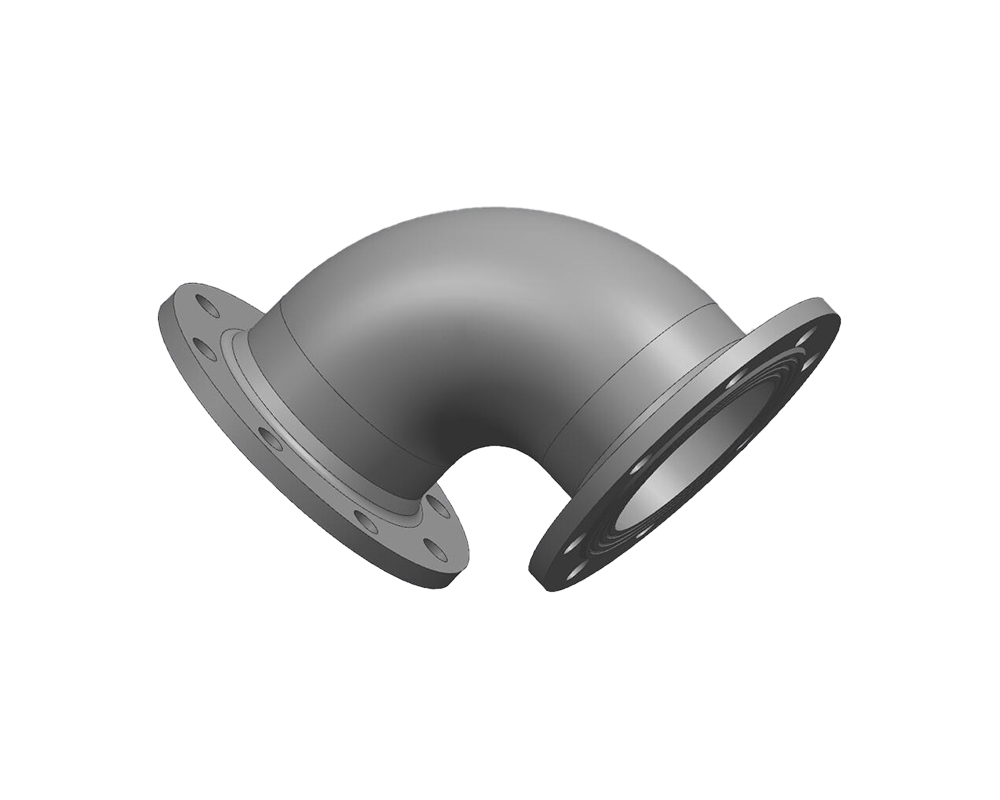

Technical drawings and weight references
| DN (mm) | PN10 mass (kg) | PN16 mass (kg) | PN25 mass (kg) |
|---|---|---|---|
| 80 | 10.1 | 10.1 | 10.1 |
| 100 | 12.6 | 12.6 | 12.6 |
| 125 | 15.6 | 15.6 | 16.9 |
| 150 | 19.9 | 20 | 22 |
| 200 | 33.1 | 30.5 | 34.5 |
| 250 | 50.8 | 49.5 | 57 |
| 300 | 70.8 | 70 | 81 |
| 350 | 90 | 96 | 113 |
| 400 | 117 | 127 | 149 |
| 450 | 143 | 161 | 181.8 |
| 500 | 200 | 211 | 235 |
| 600 | 285 | 325 | 353 |
| 700 | 399 | 429 | 473.6 |
| 800 | 552 | 590 | 653 |
| 900 | 722 | 770 | 840.8 |
| 1000 | 937 | 1020 | 1163 |
| 1200 | 1490 | 1619 | 1728 |
| 1400 | 2199 | 2335 | 2640 |
| 1600 | 2750 | — | — |
Reference values transcribed from archived technical chart. Confirm dimensions, PN, source row labels and mass before purchase.
Manufacturing process overview
Moulding and castingSource-described sand preparation, moulding and pouring
FinishingMachining, surface treatment and corrosion protection
InspectionDimensions and testing subject to project specification
Email / Request a Quote
Double-Flanged 90° Bend
Send size, pressure class, quantities and port.
Email: samson@aurorvix.com
