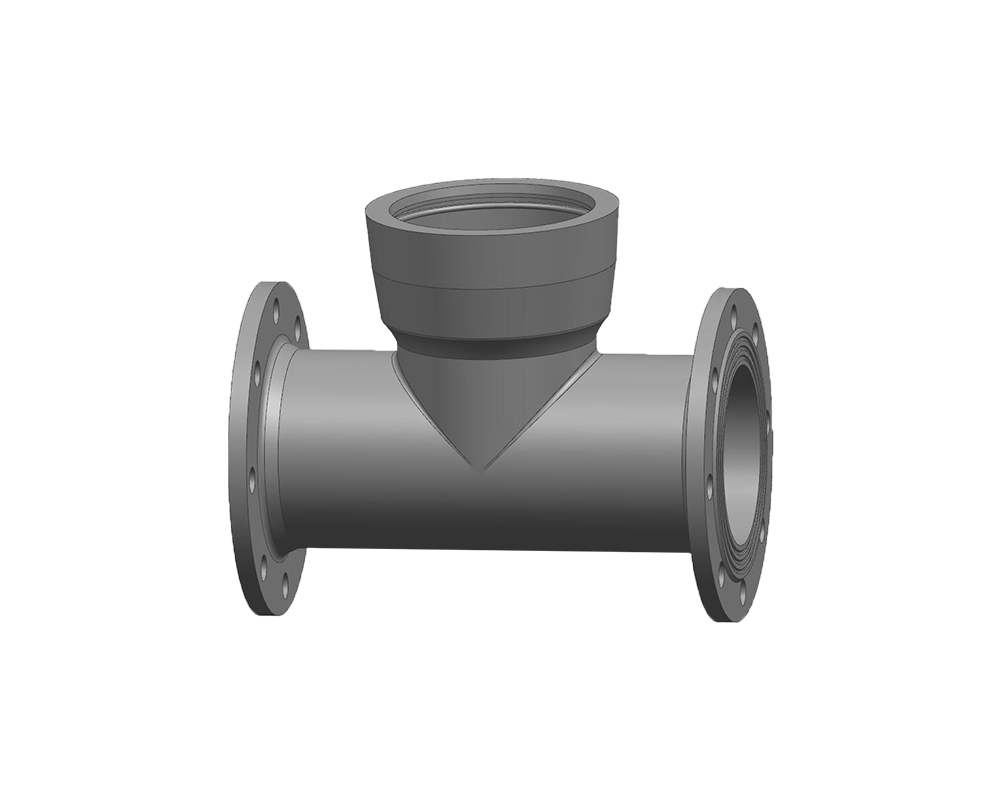

Double-Flanged Tee with Socket Branch
Multi-photo catalogue · Technical reference · Export quotation
Product enquiry
Supply coordination by Aurorvix. Specify DN, PN, connection, dimensions, quantity and delivery port. Technical figures and connection type require order-specific confirmation.
Technical Parameters
| Product | Ductile cast-iron fitting |
|---|---|
| Model / type | Double-Flanged Tee with Socket Branch |
| Reference standard on source page | GB/T 13295-2019 |
| Internal protection | Cement mortar |
| External protection | Zinc spray |
| Connection | Original page says socket-type even for flange-designated products; confirm the actual joint from drawing |
| Applications | Municipal pipeline and water infrastructure; project suitability to be confirmed |
Technical drawings and weight references
The archived manufacturer's image chart has been rebuilt as a searchable English HTML table. Figures require checking against approved order specifications.
| Size group (source) | Branch size (source) | Nominal mass (kg) |
|---|---|---|
| 80 | 80 | 15.4 |
| 100 | 80 | 17.2 |
| 100 | 100 | 19 |
| 150 | 80 | — |
| 150 | 100 | 29 |
| 150 | 150 | 33 |
| 200 | 80 | — |
| 200 | 100 | 42 |
| 200 | 150 | 44 |
| 200 | 200 | 48 |
| 250 | 100 | 66 |
| 250 | 150 | 70 |
| 250 | 200 | 75 |
| 250 | 250 | 79 |
| 300 | 100 | 92 |
| 300 | 150 | 95 |
| 300 | 200 | 99 |
| 300 | 250 | 105 |
| 300 | 300 | 110 |
| 400 | 100 | 154 |
| 400 | 150 | 158 |
| 400 | 200 | 161 |
| 400 | 250 | 169 |
| 400 | 300 | 171 |
| 400 | 400 | 180 |
| 500 | 100 | 211 |
| 500 | 150 | 216.2 |
| 500 | 200 | 218.5 |
| 500 | 250 | 222.6 |
| 500 | 300 | 232.8 |
| 500 | 400 | 255 |
| 500 | 500 | 273 |
| 600 | 100 | 269 |
| 600 | 150 | 285.2 |
| 600 | 200 | 308.5 |
| 600 | 250 | 311.6 |
| 600 | 300 | 317.8 |
| 600 | 400 | 342 |
| 600 | 500 | 370 |
| 600 | 600 | 383.5 |
English reference table transcribed from the archived technical source image. Blank cells in the original chart (150/80 and 200/80) remain blank; source did not state masses there. Confirm size orientation and flange/socket geometry against approved engineering drawings. Nominal masses are not guaranteed dispatch weights; confirm all project data with the quotation.
