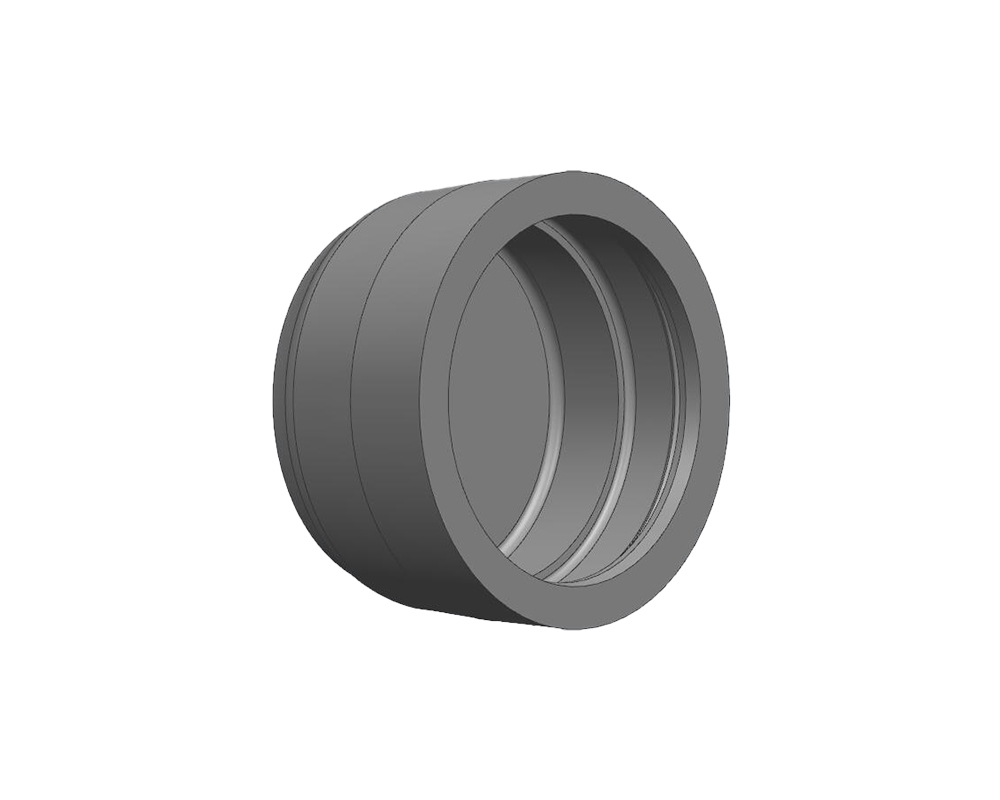

Spigot End Plug
Multi-photo catalogue · Technical reference · Export quotation
Product enquiry
Supply coordination by Aurorvix. Specify DN, PN, connection, dimensions, quantity and delivery port. Technical figures and connection type require order-specific confirmation.
01 · Parameters
Technical Parameters
| Product | Ductile cast-iron fitting |
|---|---|
| Model / type | Spigot End Plug |

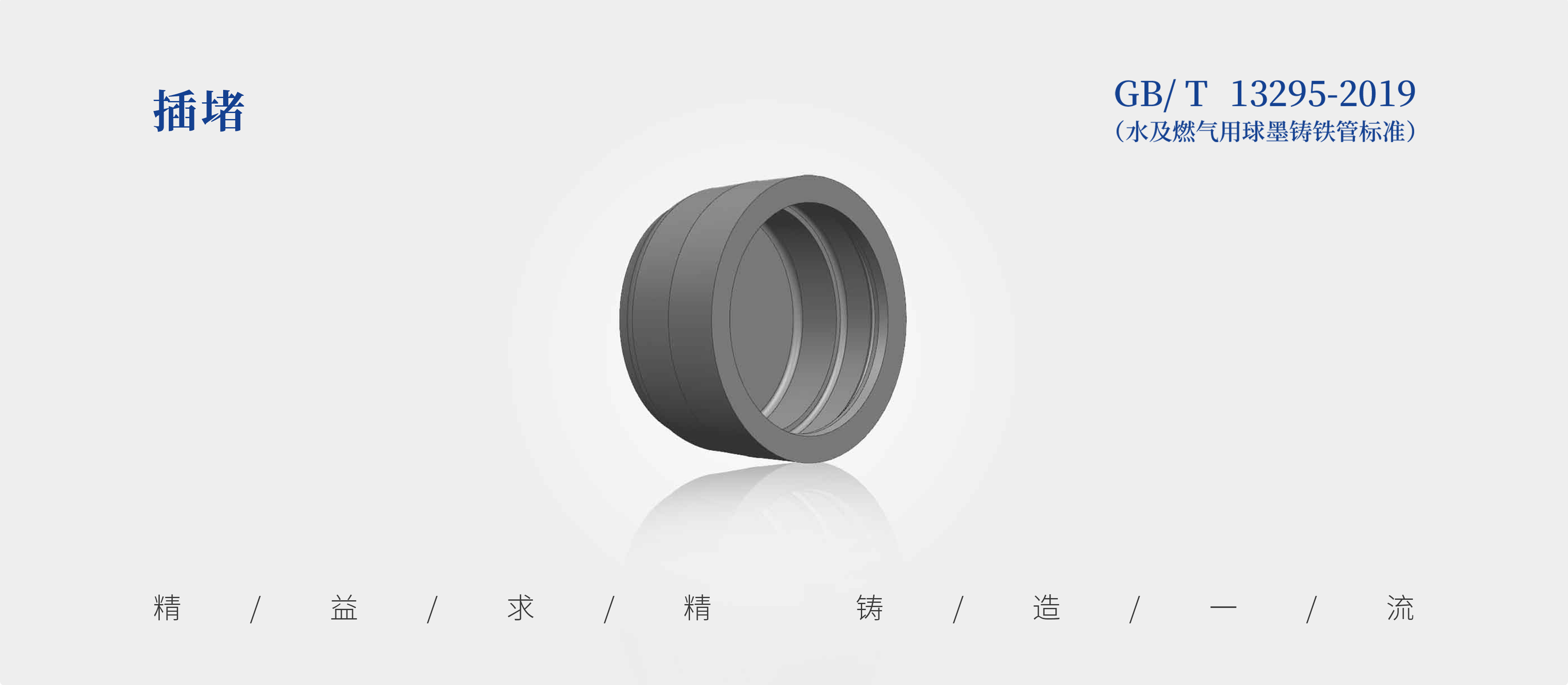

| Reference standard on source page | GB/T 13295-2019 |
| Internal protection | Cement mortar |
| External protection | Zinc spray |
| Connection | Spigot-end plug belongs to socket-and-spigot product family; confirm closure geometry from approved drawing. |
| Applications | Municipal pipeline and water infrastructure; project suitability to be confirmed |
02 · Details
Technical drawings and weight references
English HTML transcription of nominal DN and weight chart as printed in archived technical details. Confirm dimensions with the quotation drawing.
| DN (source) | Nominal mass (kg) |
|---|---|
| 80 | 7.3 |
| 100 | 8.5 |
| 150 | 14.1 |
| 200 | 19.8 |
| 250 | 27.4 |
| 300 | 42.8 |
| 350 | 61.7 |
| 400 | 76.3 |
| 450 | 93.7 |
| 500 | 107 |
| 600 | 132 |
| 700 | 202 |
| 800 | 275 |
| 900 | 353 |
| 1000 | 454 |
| 1200 | 613 |
| 1400 | 1018 |
| 1600 | 1441 |
The source product is a spigot-end plug. Generic 'socket-type' in source describes joint family, not a verified specification of plug/gasket geometry. Printed weights are source references, not certified shipping weights.
Manufacturing process overview
Moulding and castingSource-described sand preparation, moulding and pouring
FinishingMachining, surface treatment and corrosion protection
InspectionDimensions and testing subject to project specification
