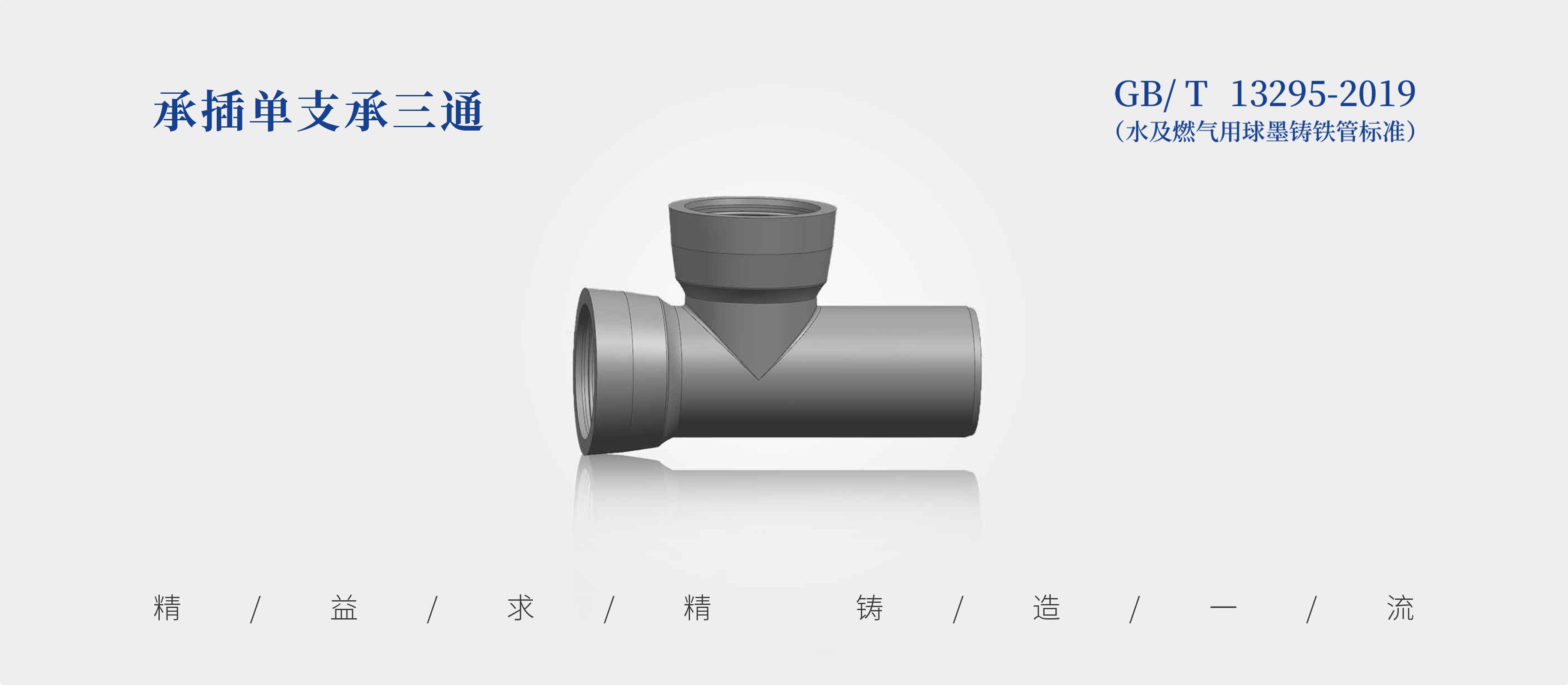

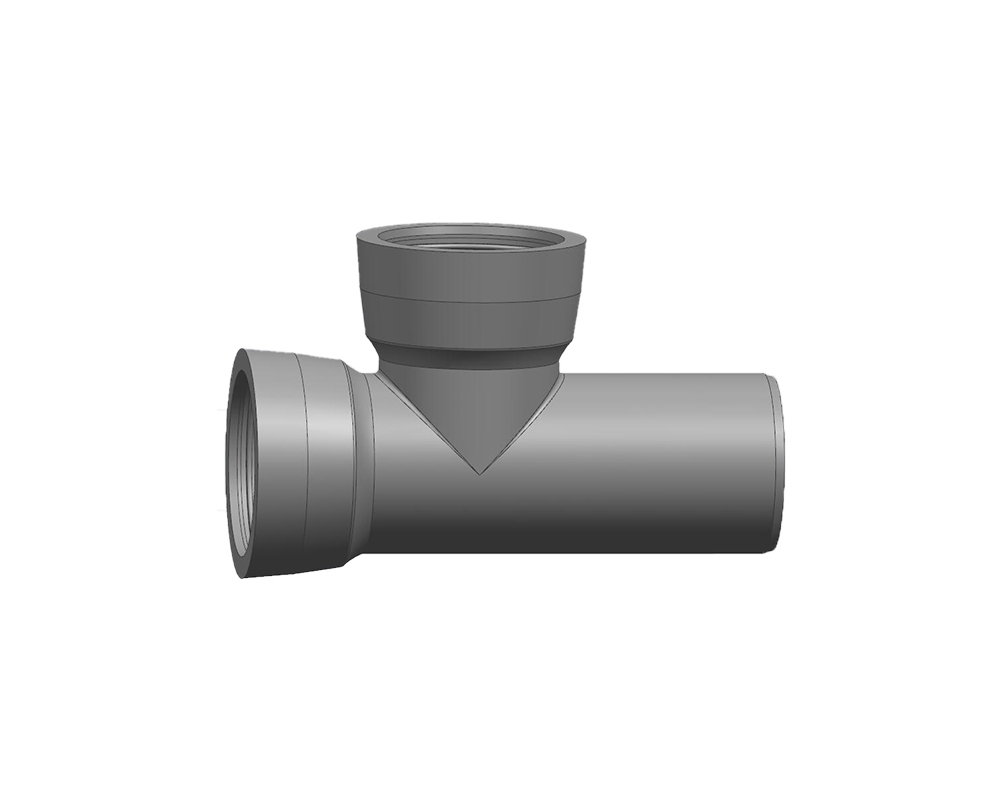

Socket-and-Spigot Tee with Socket Branch

Multi-photo catalogue · Technical reference · Export quotation

Product enquiry

Supply coordination by Aurorvix. Specify DN, PN, connection, dimensions, quantity and delivery port. Technical figures and connection type require order-specific confirmation.

Request a Quote Email Aurorvix

01 · Parameters

Technical Parameters

Product	Ductile cast-iron fitting
Model / type	Socket-and-Spigot Tee with Socket Branch
Reference standard on source page	GB/T 13295-2019
Internal protection	Cement mortar
External protection	Zinc spray
Connection	Archived source specifies a socket-and-spigot joint. Confirm actual socket, spigot, gasket and connection dimensions from order drawings.
Applications	Municipal pipeline and water infrastructure; project suitability to be confirmed

02 · Details

Technical drawings and weight references

English HTML table transcribed from the available original chart. DN and mass figures are quotation reference values, subject to approved drawings.

First size (source)	Branch size (source)	Nominal mass (kg)
80	80	13.1
100	80	15.6
100	100	16.9
150	80	22.6
150	100	24.6
150	150	28.9
200	80	31.4
200	100	33.2
200	150	38.2
200	200	44
250	80	41.3
250	100	43.8
250	150	51.9
250	200	56.7
250	250	64
300	80	51.7
300	100	57.5
300	150	67.1
300	200	72.3
300	250	82.7
300	300	89.1
350	80	66.8
350	100	69.9
350	150	81.8
350	200	87.1
350	250	99.1
350	300	109
350	350	118
400	80	78.7
400	100	84.2
400	150	98.7
400	200	103
400	250	118
400	300	128
400	350	139
400	400	152
450	80	103
450	100	107
450	150	116
450	200	127
450	250	138
450	300	150
450	350	162
450	400	172
450	450	185
500	80	111
500	100	115
500	150	136
500	200	140
500	250	161
500	300	174
500	350	186
500	400	199
500	450	212
500	500	231
600	80	161
600	100	165
600	150	180
600	200	183
600	250	210
600	300	227
600	350	241
600	400	252
600	450	274
600	500	287
600	600	334
700	80	217
700	100	224
700	150	241
700	200	259
700	250	277
700	300	297
700	350	317
700	400	337
700	450	361
700	500	380
700	600	430
700	700	486
800	80	278
800	100	287
800	150	307
800	200	330
800	250	352
800	300	374
800	350	398
800	400	420
800	450	448
800	500	472
800	600	526
800	700	586
800	800	655
900	80	349
900	100	360
900	150	386
900	200	410
900	250	437
900	300	462
900	350	490
900	400	518
900	450	547
900	500	574
900	600	635
900	700	700
900	800	774
900	900	858
1000	80	433
1000	100	443
1000	150	474
1000	200	502
1000	250	533
1000	300	564
1000	350	594
1000	400	626
1000	450	659
1000	500	690
1000	600	758
1000	700	831
1000	800	913
1000	900	1000
1000	1000	1096

120 source-chart reference rows are shown through DN1000, transcribed from archived chart images 16891505043522.jpg, 16891505049065.jpg and 16891505047740.jpg. These nominal masses are as printed by the source, not independent certification or guaranteed dispatch weights. Confirm available DN combinations, connection geometry, standards and current approved drawings before ordering.

Manufacturing process overview

Moulding and castingSource-described sand preparation, moulding and pouring

FinishingMachining, surface treatment and corrosion protection

InspectionDimensions and testing subject to project specification
