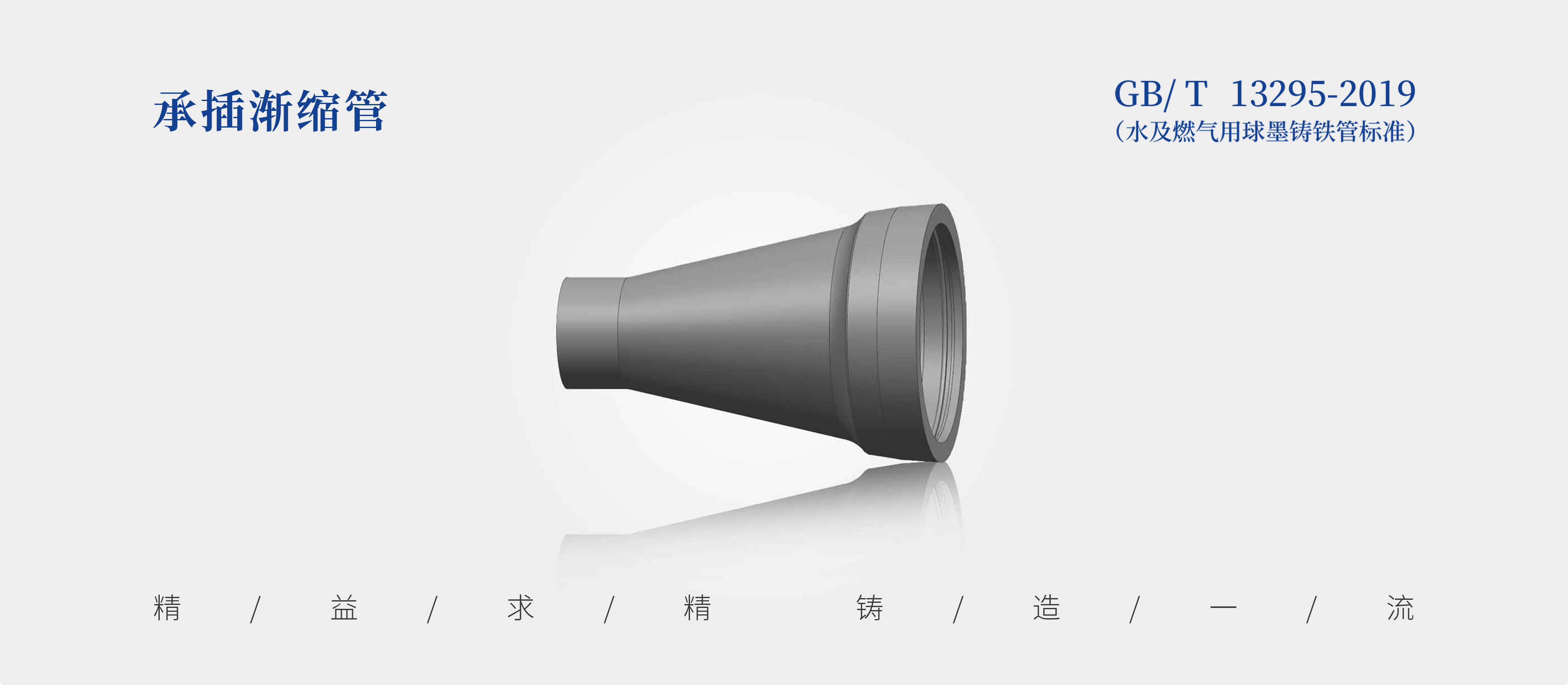

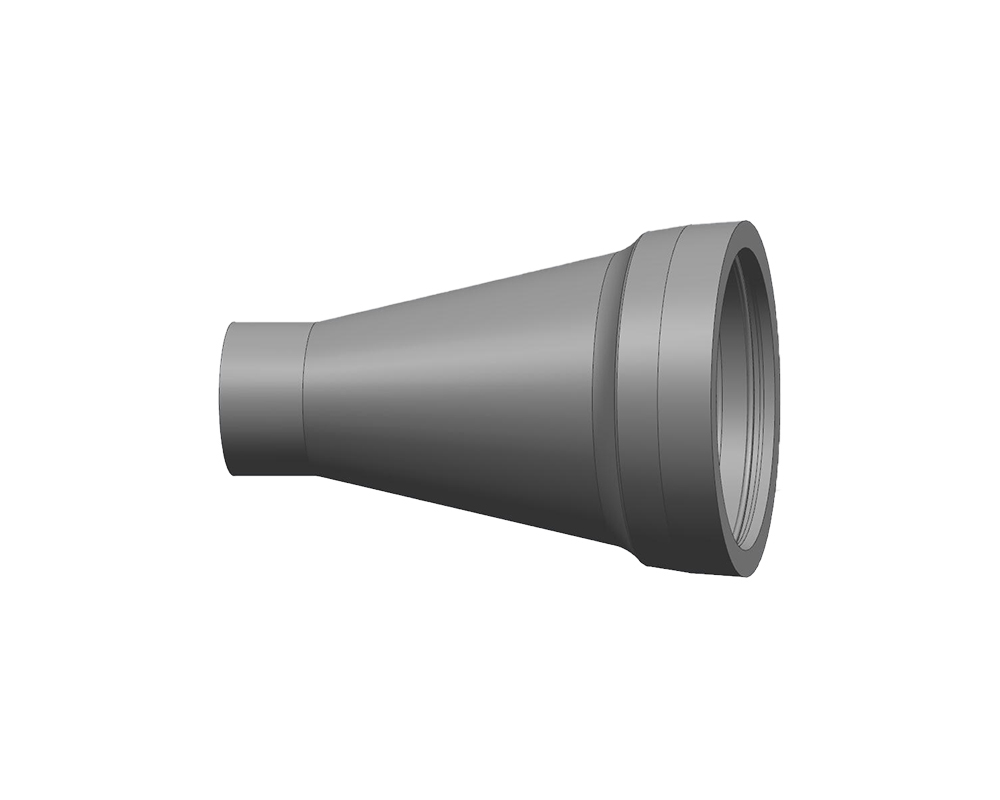

Socket-and-Spigot Reducer
Multi-photo catalogue · Technical reference · Export quotation
Product enquiry
Supply coordination by Aurorvix. Specify DN, PN, connection, dimensions, quantity and delivery port. Technical figures and connection type require order-specific confirmation.
Technical Parameters
| Product | Ductile cast-iron fitting |
|---|---|
| Model / type | Socket-and-Spigot Reducer |
| Reference standard on source page | GB/T 13295-2019 |
| Internal protection | Cement mortar |
| External protection | Zinc spray |
| Connection | Archived source specifies a socket-and-spigot joint. Confirm actual socket, spigot, gasket and connection dimensions from order drawings. |
| Applications | Municipal pipeline and water infrastructure; project suitability to be confirmed |
Technical drawings and weight references
English HTML table transcribed from the available original chart. DN and mass figures are quotation reference values, subject to approved drawings.
| First size (source) | Second size (source) | Nominal mass (kg) |
|---|---|---|
| 100 | 80 | 9.3 |
| 150 | 80 | 15.6 |
| 150 | 100 | 20 |
| 200 | 100 | 23 |
| 200 | 150 | 20 |
| 250 | 100 | 28.5 |
| 250 | 150 | 29 |
| 250 | 200 | 29 |
| 300 | 100 | 44 |
| 300 | 150 | 46 |
| 300 | 200 | 47 |
| 300 | 250 | 38.5 |
| 400 | 100 | 76 |
| 400 | 150 | 75 |
| 400 | 200 | 74 |
| 400 | 250 | 72 |
| 400 | 300 | 73 |
| 500 | 100 | 102.8 |
| 500 | 150 | 103.9 |
| 500 | 200 | 102.9 |
| 500 | 250 | 102.7 |
| 500 | 300 | 103.8 |
| 500 | 400 | 97 |
| 600 | 100 | 157.8 |
| 600 | 150 | 158.9 |
| 600 | 200 | 160 |
| 600 | 250 | 158.7 |
| 600 | 300 | 159.9 |
| 600 | 400 | 149 |
| 600 | 450 | 136.7 |
| 700 | 500 | — |
| 700 | 600 | — |
| 800 | 400 | — |
| 800 | 500 | — |
| 800 | 600 | — |
The original chart leaves listed DN700 and DN800 mass cells blank. They appear as dashes rather than estimates. First/second size labels follow the source grouped specification; confirm the exact reducer orientation. Do not assume current certification or weight tolerances without the applicable order documents.
Manufacturing process overview
