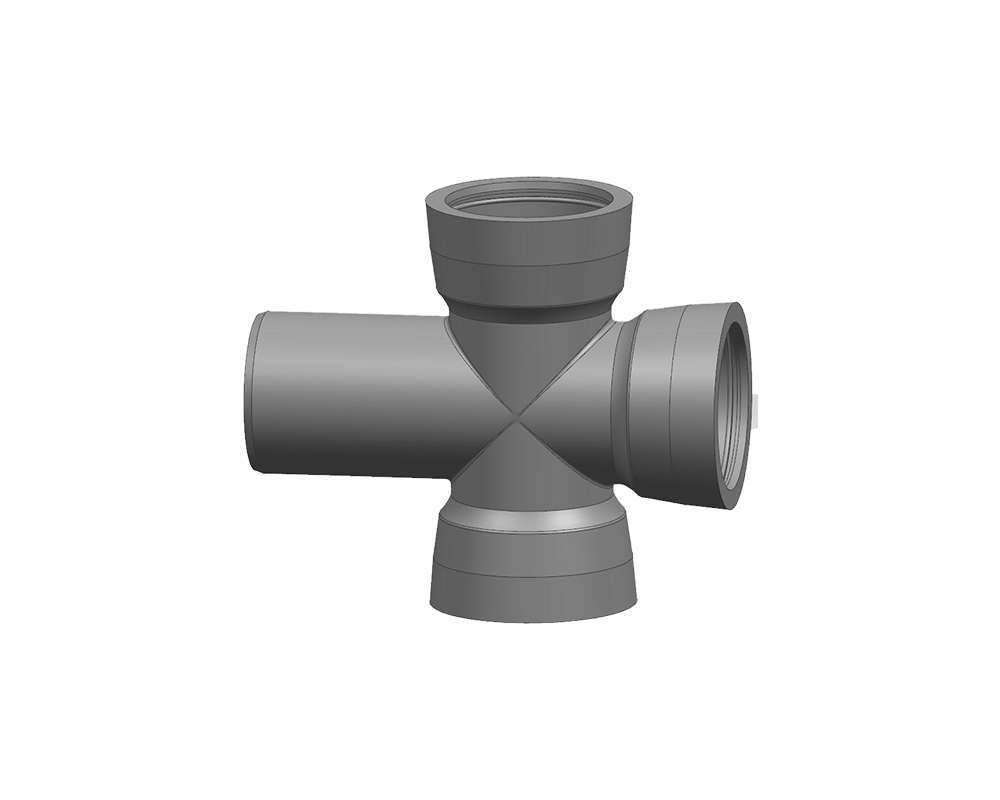

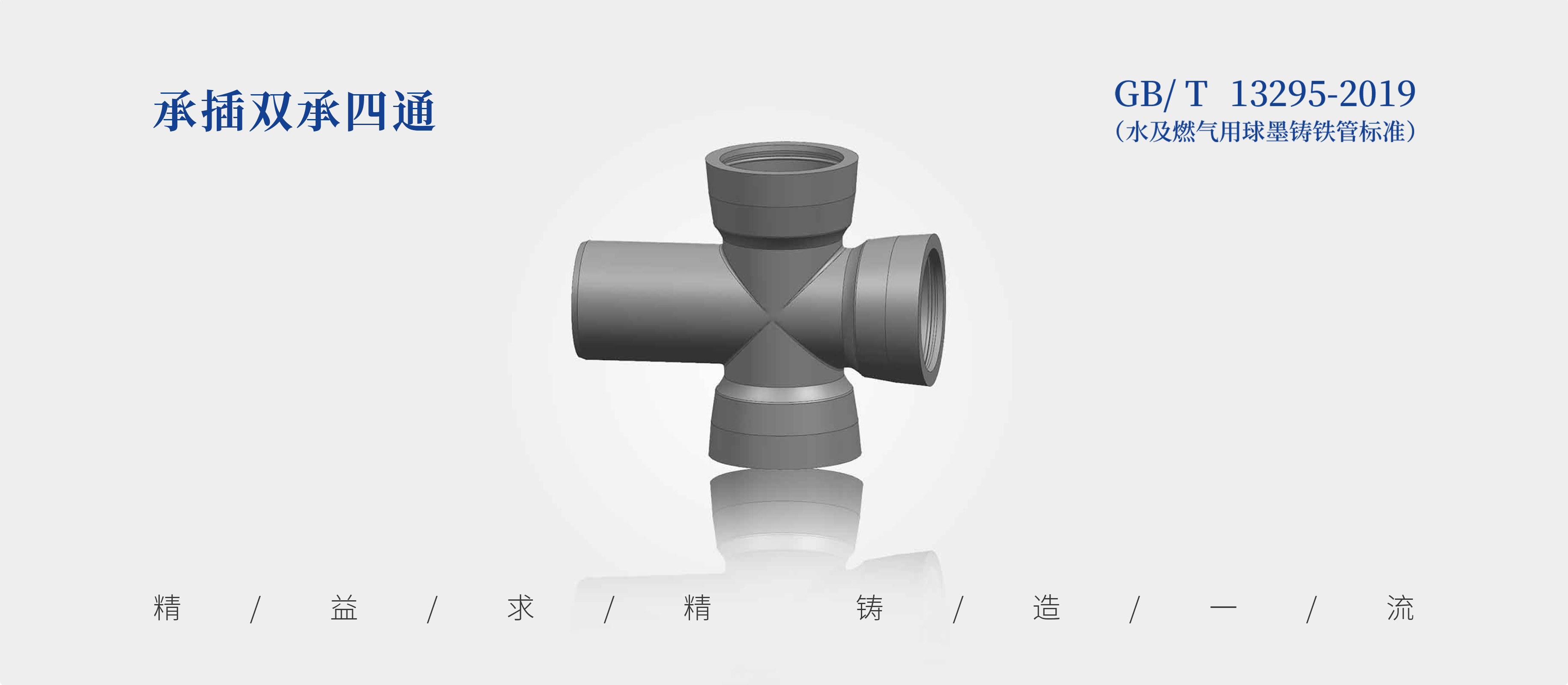

Socket-and-Spigot Double-Socket Cross
Multi-photo catalogue · Technical reference · Export quotation
Product enquiry
Supply coordination by Aurorvix. Specify DN, PN, connection, dimensions, quantity and delivery port. Technical figures and connection type require order-specific confirmation.
Technical Parameters
| Product | Ductile cast-iron fitting |
|---|---|
| Model / type | Socket-and-Spigot Double-Socket Cross |
| Reference standard on source page | GB/T 13295-2019 |
| Internal protection | Cement mortar |
| External protection | Zinc spray |
| Connection | The source lists a generic socket connection; verify whether the ordered product includes flanged ends and confirm exact joint drawings. |
| Applications | Municipal pipeline and water infrastructure; project suitability to be confirmed |
Technical drawings and weight references
English table of printed original-product mass references. Quotation and technical approval required before purchase.
| Main size (source) | Branch size (source) | Nominal mass (kg) |
|---|---|---|
| 100 | 100 | 17.1 |
| 150 | 100 | 24.8 |
| 150 | 150 | 29.1 |
| 200 | 100 | 33.4 |
| 200 | 150 | 38.3 |
| 200 | 200 | 44.6 |
| 250 | 100 | 45.2 |
| 250 | 150 | 55.8 |
| 250 | 200 | 59.2 |
| 250 | 250 | 66.4 |
| 300 | 100 | 57.3 |
| 300 | 150 | 70.3 |
| 300 | 200 | 74 |
| 300 | 250 | 86.2 |
| 300 | 300 | 89.8 |
| 350 | 200 | 89.7 |
| 350 | 250 | 105 |
| 350 | 300 | 114 |
| 350 | 350 | 123 |
| 400 | 200 | 114 |
| 400 | 250 | 136 |
| 400 | 300 | 134 |
| 400 | 350 | 145 |
| 400 | 400 | 159 |
| 500 | 250 | 184 |
| 500 | 300 | 188 |
| 500 | 350 | 199 |
| 500 | 400 | 210 |
| 500 | 500 | 246 |
| 600 | 300 | 250 |
| 600 | 350 | 264 |
| 600 | 400 | 270 |
| 600 | 500 | 309 |
| 600 | 600 | 362 |
| 700 | 350 | 420 |
| 700 | 400 | 449 |
| 700 | 500 | 509 |
| 700 | 600 | 580 |
| 700 | 700 | 673 |
| 800 | 100 | 410 |
| 800 | 200 | 440 |
| 800 | 300 | 510 |
| 800 | 400 | 557 |
| 800 | 500 | 629 |
| 800 | 600 | 706 |
| 800 | 700 | 802 |
| 800 | 800 | 914 |
| 900 | 500 | 762 |
| 900 | 600 | 848 |
| 900 | 700 | 950 |
| 900 | 800 | 1067 |
| 900 | 900 | 1202 |
| 1000 | 100 | 510 |
| 1000 | 300 | 715 |
| 1000 | 600 | 1009 |
| 1000 | 700 | 1123 |
| 1000 | 800 | 1250 |
| 1000 | 900 | 1386 |
| 1000 | 1000 | 1539 |
| 1100 | 700 | 1317 |
| 1100 | 800 | 1446 |
| 1100 | 900 | 1590 |
| 1100 | 1000 | 1745 |
| 1100 | 1100 | 1928 |
| 1200 | 800 | 1678 |
| 1200 | 900 | 1831 |
| 1200 | 1000 | 1993 |
| 1200 | 1100 | 2181 |
| 1200 | 1200 | 2399 |
The chart lists an 800/800 and a separate 900/800 etc.; both size columns are retained without interpreting which end is main inlet. All clearly read entries from the two weight-chart images are shown, with unlisted combinations left out. Nominal values are source-chart references, not an independent measurement or certification.
Manufacturing process overview
