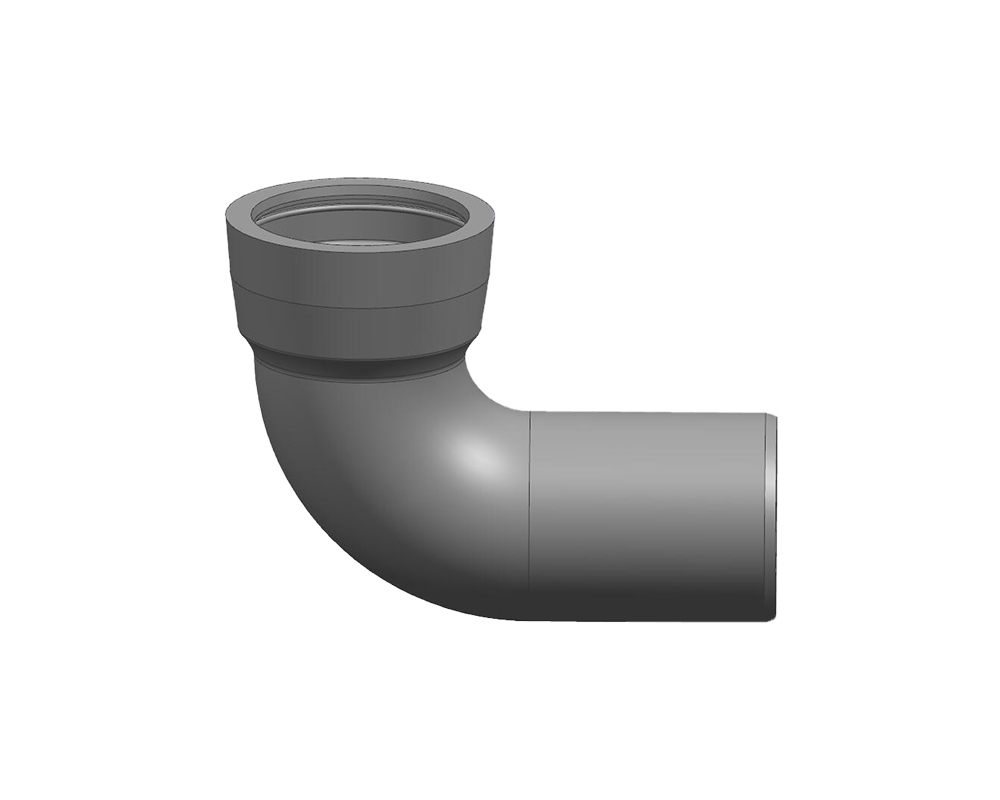

Socket-and-Spigot 90° Bend
Multi-photo catalogue · Technical reference · Export quotation
Product enquiry
Supply coordination by Aurorvix. Specify DN, PN, connection, dimensions, quantity and delivery port. Technical figures and connection type require order-specific confirmation.
01 · Parameters
Technical Parameters
| Product | Ductile cast-iron fitting |
|---|---|
| Model / type | Socket-and-Spigot 90° Bend |

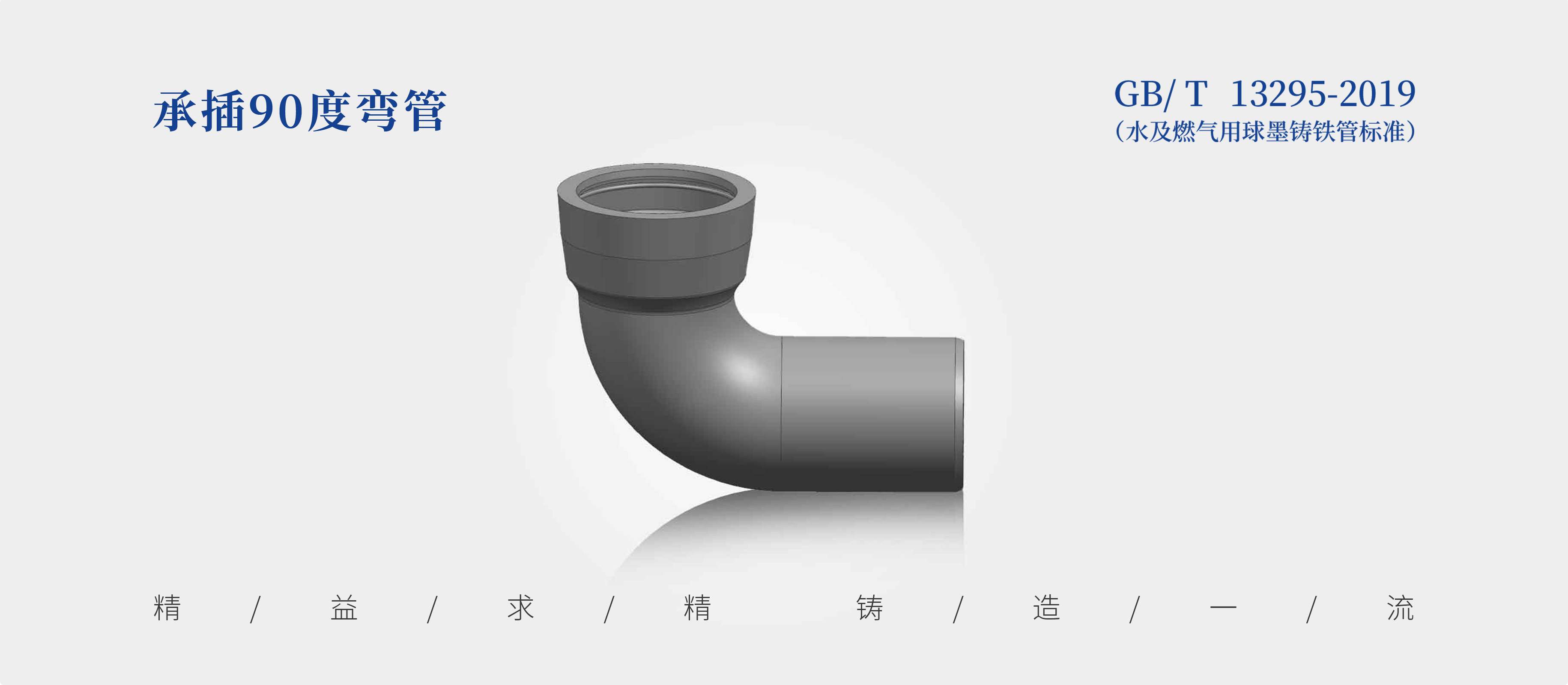

| Reference standard on source page | GB/T 13295-2019 |
| Internal protection | Cement mortar |
| External protection | Zinc spray |
| Connection | Archived source specifies a socket-and-spigot joint. Confirm actual socket, spigot, gasket and connection dimensions from order drawings. |
| Applications | Municipal pipeline and water infrastructure; project suitability to be confirmed |
02 · Details
Technical drawings and weight references
English HTML table transcribed from the available original chart. DN and mass figures are quotation reference values, subject to approved drawings.
| DN (source) | Nominal mass (kg) |
|---|---|
| 100 | 11.9 |
| 125 | 14.4 |
| 150 | 21.4 |
| 200 | 34.2 |
| 250 | 54.1 |
| 300 | 69.6 |
| 350 | 99.7 |
| 400 | 130 |
| 450 | 165 |
| 500 | 205 |
| 600 | 301 |
| 700 | 436 |
| 800 | 595 |
| 900 | 793 |
| 1000 | 986 |
| 1200 | 1624 |
| 1400 | 2419 |
| 1600 | 2887 |
18 source rows transcribed. The large-size DN1600 value is shown as 2887 kg in this product's chart; do not reuse another product's bend weight. Do not assume current certification or weight tolerances without the applicable order documents.
Manufacturing process overview
Moulding and castingSource-described sand preparation, moulding and pouring
FinishingMachining, surface treatment and corrosion protection
InspectionDimensions and testing subject to project specification
