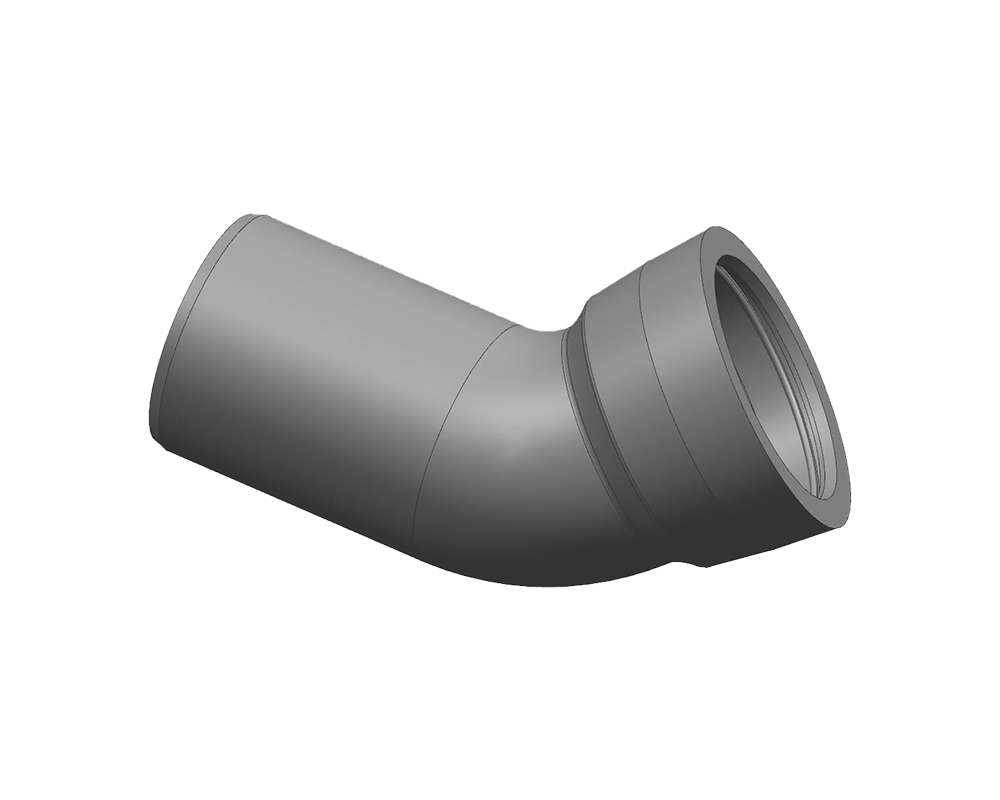

Socket-and-Spigot 45° Bend
Multi-photo catalogue · Technical reference · Export quotation
Product enquiry
Supply coordination by Aurorvix. Specify DN, PN, connection, dimensions, quantity and delivery port. Technical figures and connection type require order-specific confirmation.
01 · Parameters
Technical Parameters
| Product | Ductile cast-iron fitting |
|---|---|
| Model / type | Socket-and-Spigot 45° Bend |
| Reference standard on source page | GB/T 13295-2019 |
| Internal protection | Cement mortar |
| External protection | Zinc spray |
| Connection | Source lists socket-type joint; confirm exact socket/spigot and gasket dimensions in approved order drawing. |
| Applications | Municipal pipeline and water infrastructure; project suitability to be confirmed |
02 · Details
Technical drawings and weight references
English HTML transcription of nominal DN and weight chart as printed in archived technical details. Confirm dimensions with the quotation drawing.
| DN (source) | Nominal mass (kg) |
|---|---|
| 100 | 10.6 |
| 125 | 12.3 |
| 150 | 18.2 |
| 200 | 28.2 |
| 250 | 40.2 |
| 300 | 54.6 |
| 350 | 71.3 |
| 400 | 89.9 |
| 450 | 125 |
| 500 | 139 |
| 600 | 200 |
| 700 | 310 |
| 800 | 418 |
| 900 | 554 |
| 1000 | 710 |
| 1200 | 1109 |
| 1400 | 1632 |
| 1600 | 1693 |
The source's final 1600 DN value is 1693 kg; mass values are as printed for this product and not reused from other bend variants. Printed weights are source references, not certified shipping weights.
Manufacturing process overview
Moulding and castingSource-described sand preparation, moulding and pouring
FinishingMachining, surface treatment and corrosion protection
InspectionDimensions and testing subject to project specification
