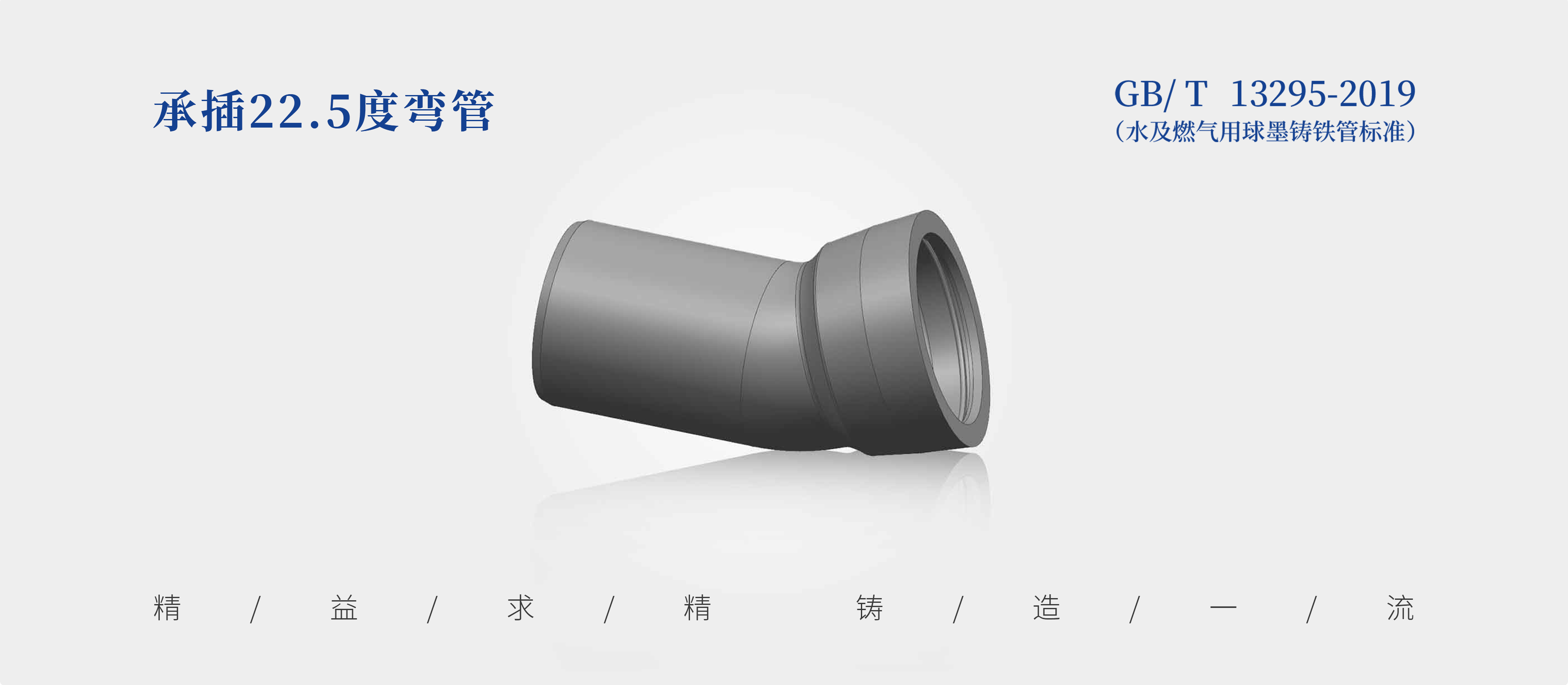

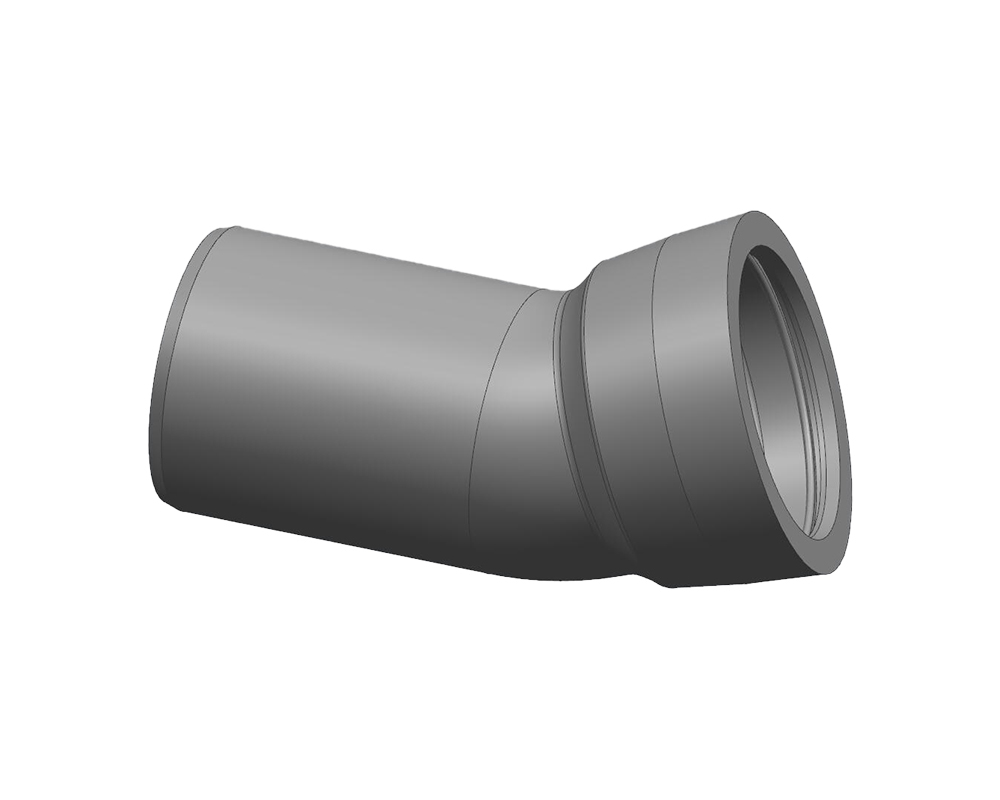

Socket-and-Spigot 22.5° Bend
Multi-photo catalogue · Technical reference · Export quotation
Product enquiry
Supply coordination by Aurorvix. Specify DN, PN, connection, dimensions, quantity and delivery port. Technical figures and connection type require order-specific confirmation.
01 · Parameters
Technical Parameters
| Product | Ductile cast-iron fitting |
|---|---|
| Model / type | Socket-and-Spigot 22.5° Bend |
| Reference standard on source page | GB/T 13295-2019 |
| Internal protection | Cement mortar |
| External protection | Zinc spray |
| Connection | Source lists socket-type joint; confirm exact socket/spigot and gasket dimensions in approved order drawing. |
| Applications | Municipal pipeline and water infrastructure; project suitability to be confirmed |
02 · Details
Technical drawings and weight references
English HTML transcription of nominal DN and weight chart as printed in archived technical details. Confirm dimensions with the quotation drawing.
| DN (source) | Nominal mass (kg) |
|---|---|
| 100 | 9.8 |
| 125 | 11.2 |
| 150 | 16.8 |
| 200 | 25.2 |
| 250 | 35.2 |
| 300 | 46.2 |
| 350 | 59 |
| 400 | 79.5 |
| 450 | 107 |
| 500 | 117 |
| 600 | 161 |
| 700 | 248 |
| 800 | 331 |
| 900 | 432 |
| 1000 | 550 |
| 1200 | 851 |
| 1400 | 1241 |
| 1600 | 1377 |
Original 18 DN/mass entries retained; reference masses differ from 45° and 11.25° bends. Printed weights are source references, not certified shipping weights.
Manufacturing process overview
Moulding and castingSource-described sand preparation, moulding and pouring
FinishingMachining, surface treatment and corrosion protection
InspectionDimensions and testing subject to project specification
