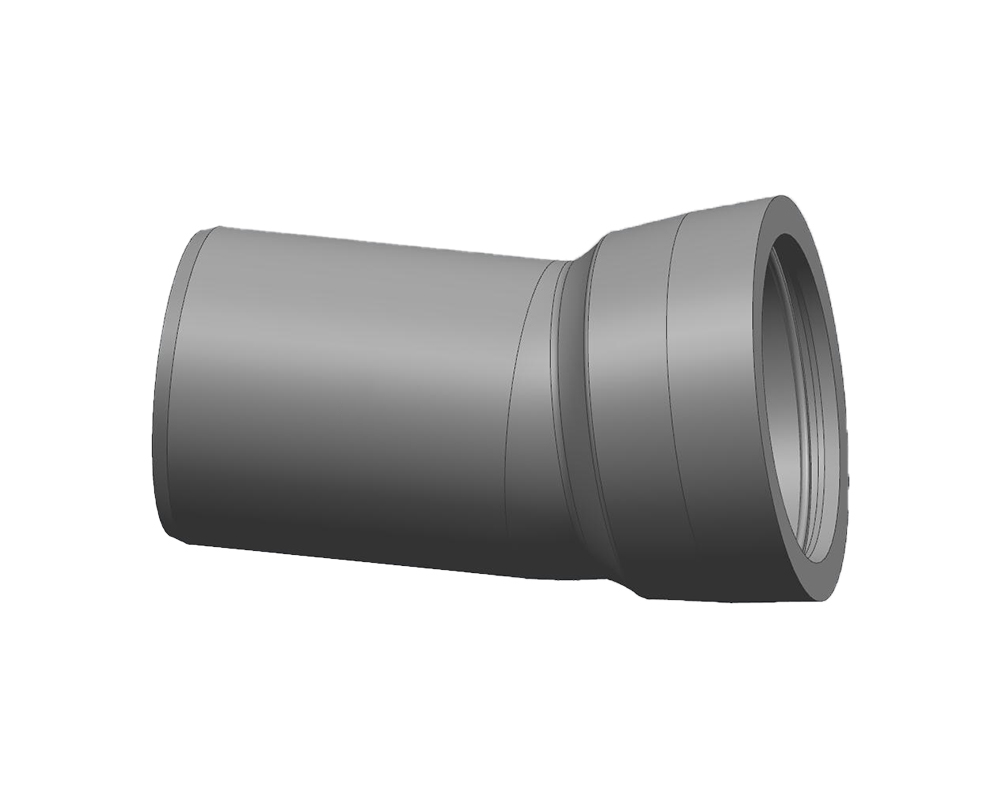

Socket-and-Spigot 11.25° Bend
Multi-photo catalogue · Technical reference · Export quotation
Product enquiry
Supply coordination by Aurorvix. Specify DN, PN, connection, dimensions, quantity and delivery port. Technical figures and connection type require order-specific confirmation.
01 · Parameters
Technical Parameters
| Product | Ductile cast-iron fitting |
|---|---|
| Model / type | Socket-and-Spigot 11.25° Bend |

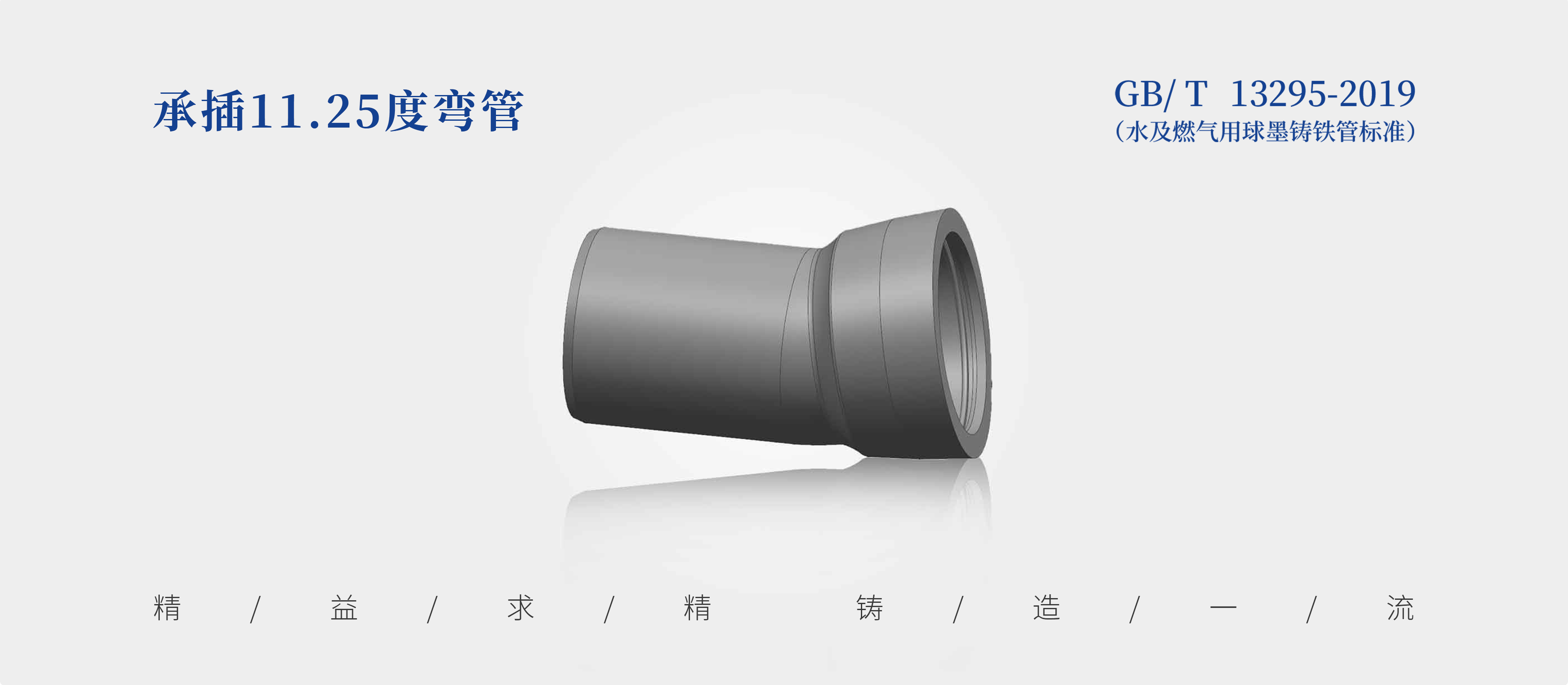

| Reference standard on source page | GB/T 13295-2019 |
| Internal protection | Cement mortar |
| External protection | Zinc spray |
| Connection | Source lists socket-type joint; confirm exact socket/spigot and gasket dimensions in approved order drawing. |
| Applications | Municipal pipeline and water infrastructure; project suitability to be confirmed |
02 · Details
Technical drawings and weight references
English HTML transcription of nominal DN and weight chart as printed in archived technical details. Confirm dimensions with the quotation drawing.
| DN (source) | Nominal mass (kg) |
|---|---|
| 100 | 8.9 |
| 125 | 11.9 |
| 150 | 14.9 |
| 200 | 22 |
| 250 | 30.5 |
| 300 | 40.5 |
| 350 | 52 |
| 400 | 65 |
| 450 | 91.9 |
| 500 | 96 |
| 600 | 134 |
| 700 | 216 |
| 800 | 286 |
| 900 | 374 |
| 1000 | 473 |
| 1200 | 724 |
| 1400 | 1047 |
| 1600 | 1134 |
All printed DN rows from this archived bend chart. No implied PN rating from the single mass column. Printed weights are source references, not certified shipping weights.
Manufacturing process overview
Moulding and castingSource-described sand preparation, moulding and pouring
FinishingMachining, surface treatment and corrosion protection
InspectionDimensions and testing subject to project specification
