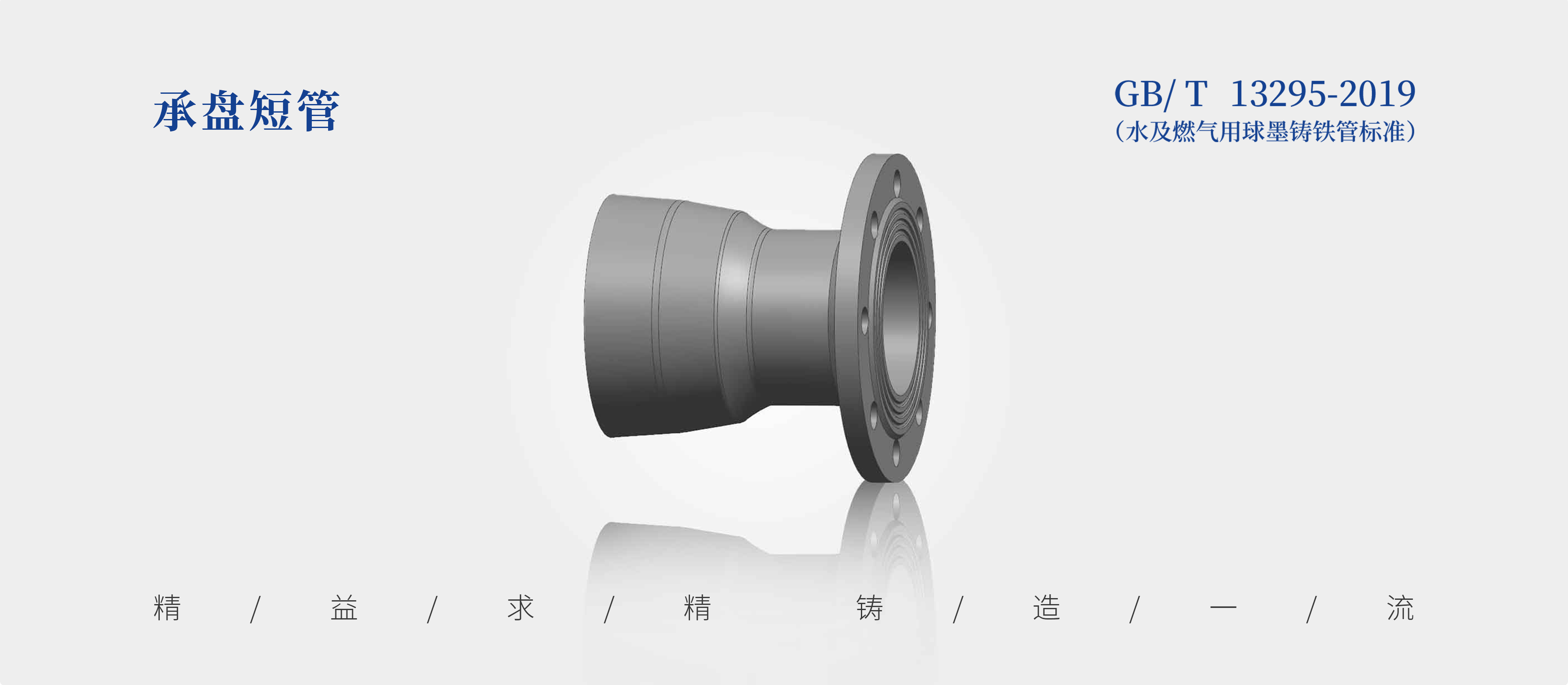

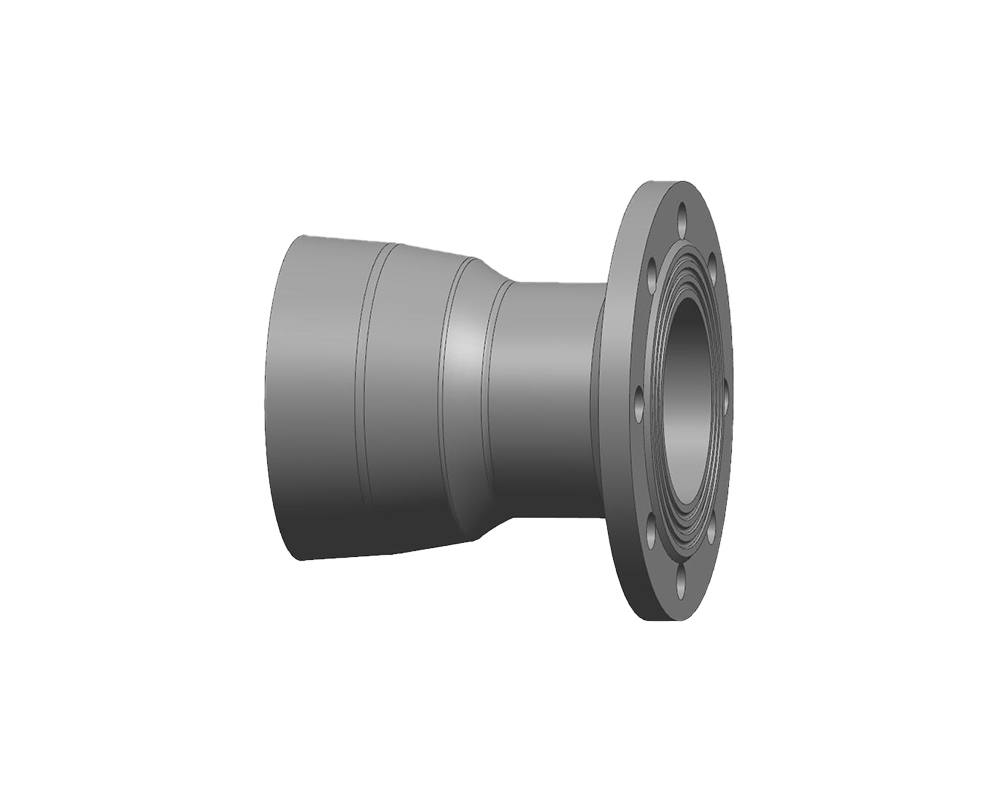

Socket-Flanged Short Pipe

Multi-photo catalogue · Technical reference · Export quotation

Product enquiry

Supply coordination by Aurorvix. Specify DN, PN, connection, dimensions, quantity and delivery port. Technical figures and connection type require order-specific confirmation.

Request a Quote Email Aurorvix

01 · Parameters

Technical Parameters

Product	Ductile cast-iron fitting
Model / type	Socket-Flanged Short Pipe
Reference standard on source page	GB/T 13295-2019
Internal protection	Cement mortar
External protection	Zinc spray
Connection	The source lists a generic socket connection; verify whether the ordered product includes flanged ends and confirm exact joint drawings.
Applications	Municipal pipeline and water infrastructure; project suitability to be confirmed

02 · Details

Technical drawings and weight references

English table of printed original-product mass references. Quotation and technical approval required before purchase.

DN nominal size (source)	PN10 nominal mass (kg)	PN16 nominal mass (kg)	PN25 nominal mass (kg)
80	7.4	7.6	7.6
100	9	9.1	9.6
125	11.5	11.9	12.5
150	14.2	14.2	15.2
200	20.5	20	22
250	28	32	33.3
300	37	36.5	42
350	45	48	56
400	55	60	71
450	66.5	86.2	87.5
500	78	93	104
600	108	—	149
700	144	159	216
800	189	235	287
900	235	284.1	340.1
1000	293	366	458
1200	456	554.3	664
1400	654	820.2	959.9
1600	897	1278	1438

The PN16 cell at DN600 contains the source character 'z', not a valid number, and is intentionally shown as a dash (unverified), not zero. Confirm the joint and class details against approved drawings. Nominal values are source-chart references, not an independent measurement or certification.

Manufacturing process overview

Moulding and castingSource-described sand preparation, moulding and pouring

FinishingMachining, surface treatment and corrosion protection

InspectionDimensions and testing subject to project specification
