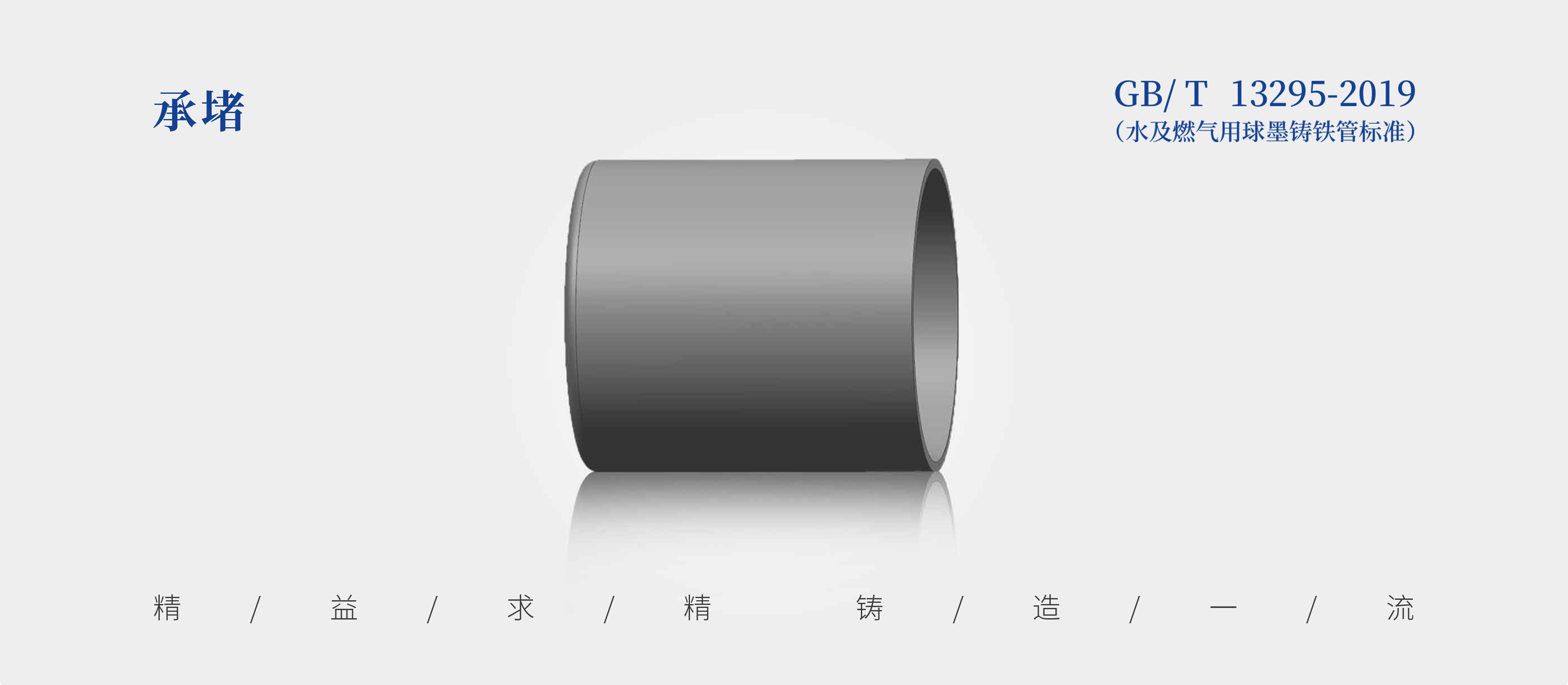

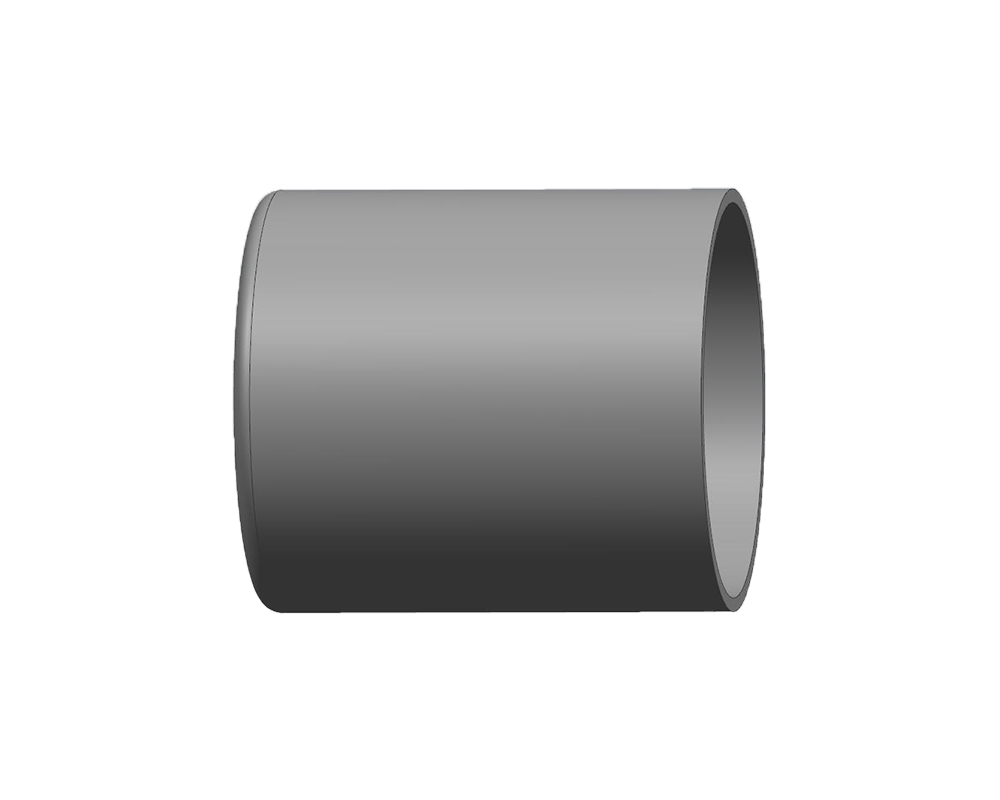

Socket End Plug
Multi-photo catalogue · Technical reference · Export quotation
Product enquiry
Supply coordination by Aurorvix. Specify DN, PN, connection, dimensions, quantity and delivery port. Technical figures and connection type require order-specific confirmation.
01 · Parameters
Technical Parameters
| Product | Ductile cast-iron fitting |
|---|---|
| Model / type | Socket End Plug |
| Reference standard on source page | GB/T 13295-2019 |
| Internal protection | Cement mortar |
| External protection | Zinc spray |
| Connection | The source lists a generic socket connection; verify whether the ordered product includes flanged ends and confirm exact joint drawings. |
| Applications | Municipal pipeline and water infrastructure; project suitability to be confirmed |
02 · Details
Technical drawings and weight references
English table of printed original-product mass references. Quotation and technical approval required before purchase.
| DN nominal size (source) | Nominal mass (kg) |
|---|---|
| 100 | 4.5 |
| 150 | 9.5 |
| 200 | 14.8 |
| 250 | 21.5 |
| 300 | 33.5 |
| 350 | 45.5 |
| 400 | 56 |
| 450 | 68.5 |
| 500 | 81 |
| 600 | 112 |
| 700 | 193 |
| 800 | 259 |
| 900 | 337 |
| 1000 | 437 |
| 1200 | 783 |
| 1400 | 1078 |
| 1600 | 1539 |
Complete nominal weights from the archived plug chart. Confirm exact spigot/socket closure geometry and sealing before order. Nominal values are source-chart references, not an independent measurement or certification.
Manufacturing process overview
Moulding and castingSource-described sand preparation, moulding and pouring
FinishingMachining, surface treatment and corrosion protection
InspectionDimensions and testing subject to project specification
