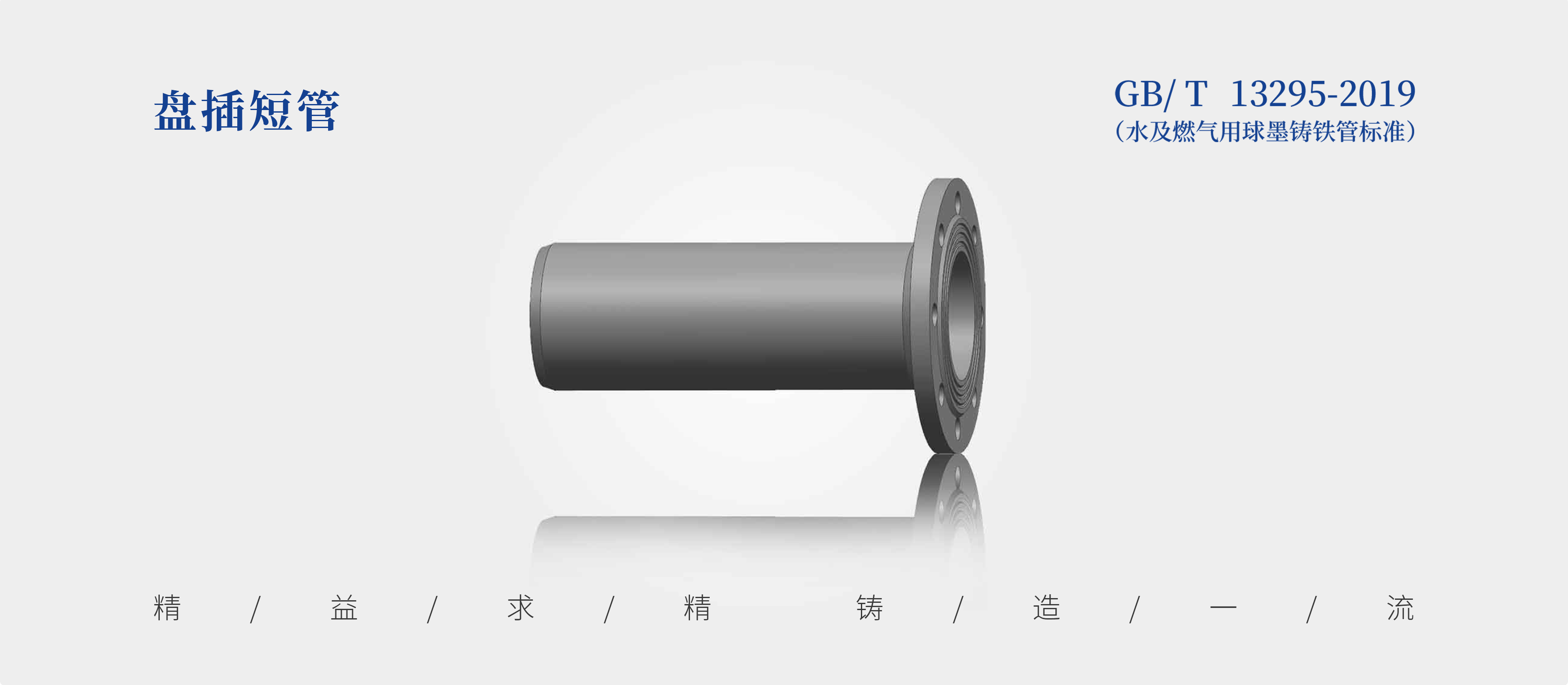

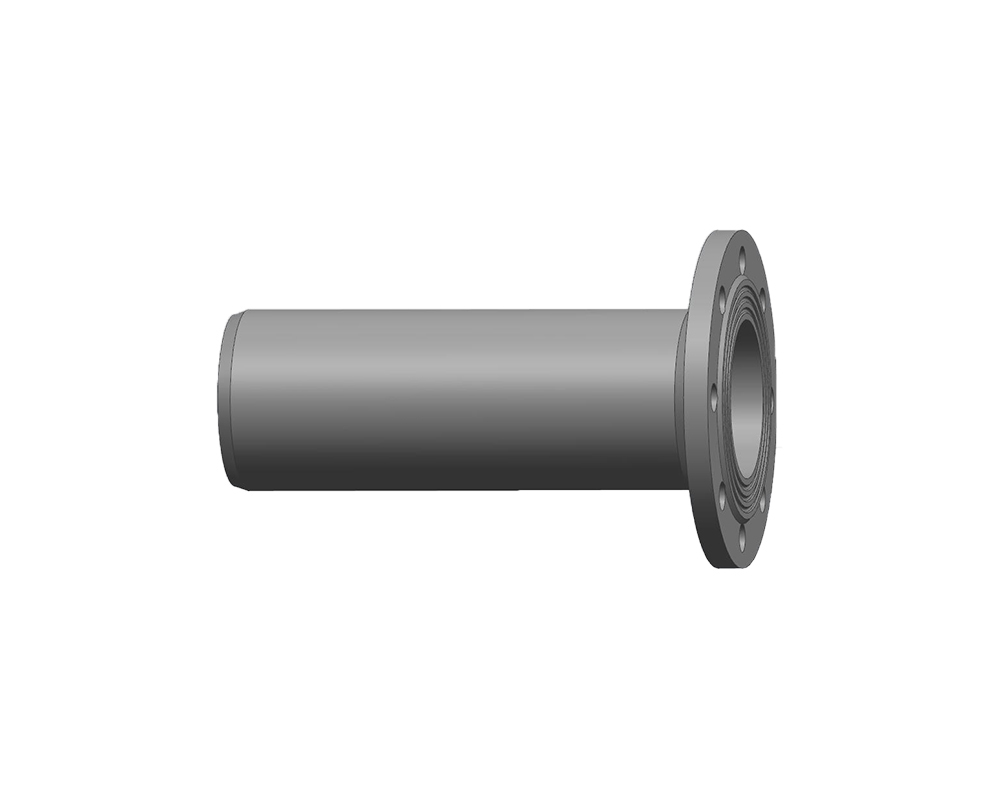

Flanged Spigot Short Pipe

Multi-photo catalogue · Technical reference · Export quotation

Product enquiry

Supply coordination by Aurorvix. Specify DN, PN, connection, dimensions, quantity and delivery port. Technical figures and connection type require order-specific confirmation.

Request a Quote Email Aurorvix

01 · Parameters

Technical Parameters

Product	Ductile cast-iron fitting
Model / type	Flanged Spigot Short Pipe
Reference standard on source page	GB/T 13295-2019
Internal protection	Cement mortar
External protection	Zinc spray
Connection	Source lists socket type; confirm actual socket/flange combination against approved fitting drawing.
Applications	Municipal pipeline and water infrastructure; project suitability to be confirmed

02 · Details

Technical drawings and weight references

Nominal source-chart masses, transcribed into searchable English tables. The figures are for quotation reference and not guaranteed dispatch weights.

DN nominal size (source)	PN10 nominal mass (kg)	PN16 nominal mass (kg)	PN25 nominal mass (kg)
80	7.8	7.6	7.8
100	9.6	7.8	10.2
125	12.4	12.4	13
150	15.6	15.6	16.6
200	22.5	22.5	24.5
250	32	31.5	35.5
300	43	42.5	47.5
350	52	55	64
400	64	70.4	81
450	79	88	103
500	94	109	121
600	133	159	173
700	179	197	228
800	226	245	294
900	272	295	356
1000	328	369	447
1200	456	520	620
1400	664	734	884
1600	922	1024	1173

All 19 reference rows from the archived product weight chart. PN class columns are mass references, not independently verified order pressure ratings. Confirm DN, connection geometry, standard edition and nominal weights using approved order drawings.

Manufacturing process overview

Moulding and castingSource-described sand preparation, moulding and pouring

FinishingMachining, surface treatment and corrosion protection

InspectionDimensions and testing subject to project specification
