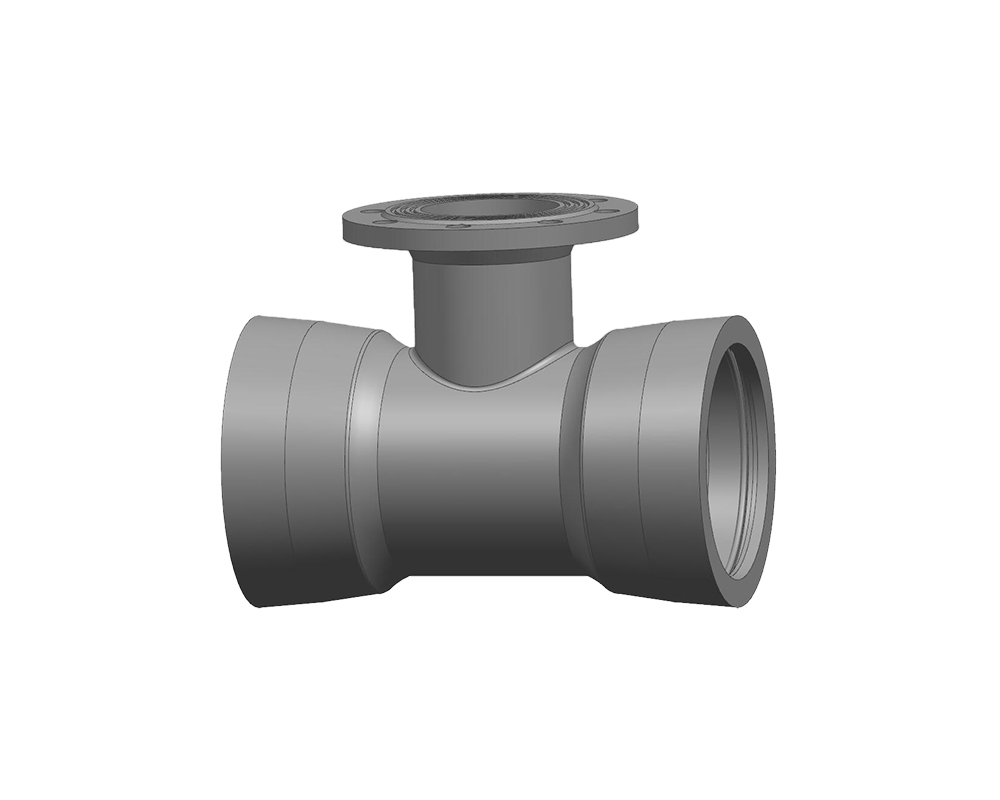

Double-Socket Tee with Flanged Branch

Multi-photo catalogue · Technical reference · Export quotation

Product enquiry

Supply coordination by Aurorvix. Specify DN, PN, connection, dimensions, quantity and delivery port. Technical figures and connection type require order-specific confirmation.

Request a Quote Email Aurorvix

01 · Parameters

Technical Parameters

Product	Ductile cast-iron fitting
Model / type	Double-Socket Tee with Flanged Branch

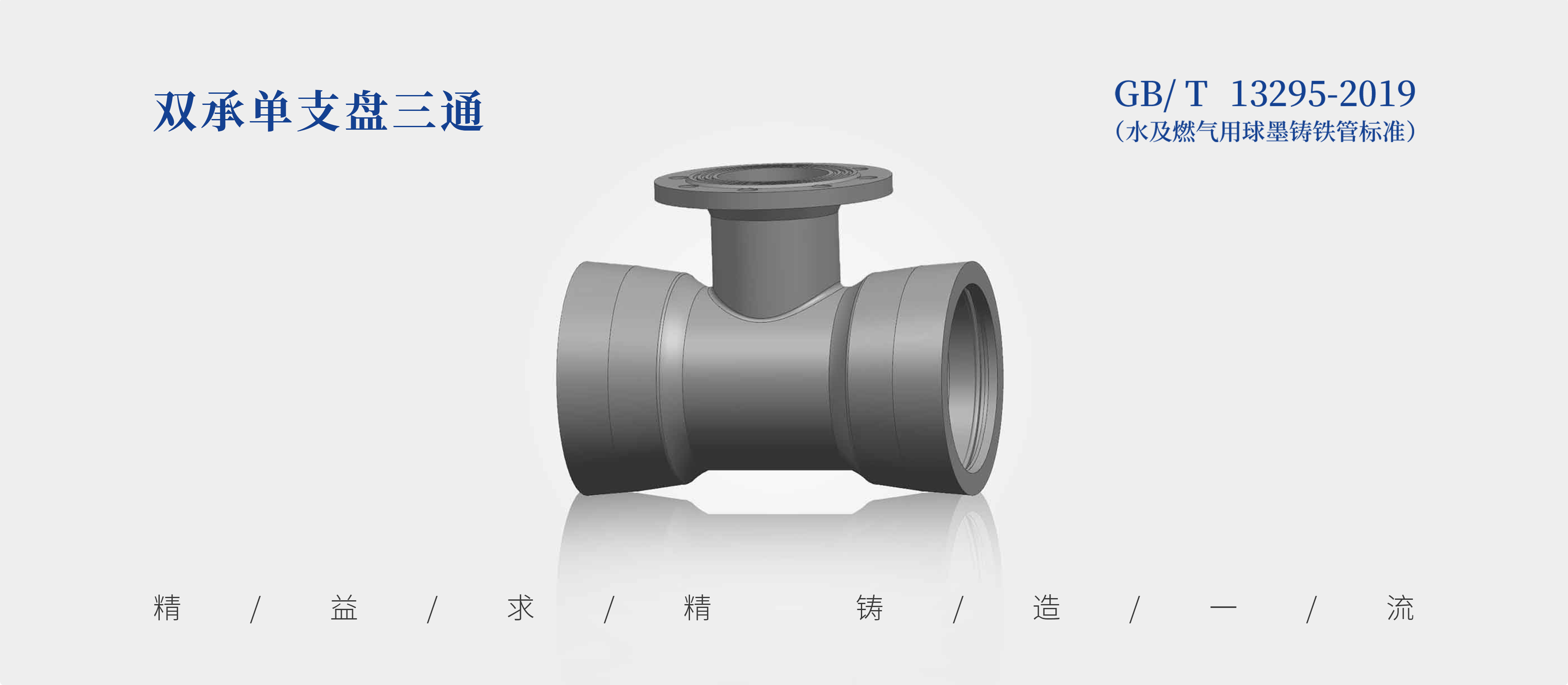

Reference standard on source page	GB/T 13295-2019
Internal protection	Cement mortar
External protection	Zinc spray
Connection	Source states socket-type; confirm the exact combination of flanged and socket ends with the approved fitting drawing
Applications	Municipal pipeline and water infrastructure; project suitability to be confirmed

02 · Details

Technical drawings and weight references

English HTML transcription of nominal source data. These reference weights and DN combinations must be confirmed against the approved quotation drawing.

Main size (source)	Branch size (source)	PN10 mass (kg)	PN16 mass (kg)	PN25 mass (kg)
80	80	13.5	13.5	13.5
100	80	15.8	15.8	15.8
100	100	17.2	17.2	17.2
125	80	19.4	19.4	19.4
125	100	21	21	21.5
125	125	23	23	24
150	80	23	23	23
150	100	24.5	24.5	25
150	150	29.5	29.5	30.5
200	80	31.5	31.5	31.5
200	100	33.5	33.5	34
200	150	39	39	40
200	200	45.6	46	47.5
250	80	44	42.2	42.2
250	100	43.5	43.5	44
250	150	56.6	51.3	52.2
250	200	57	57	59
250	250	65	67.1	70.7
300	80	52	60.8	60.8
300	100	55	64.2	64.7
300	150	68	71.2	72.1
300	200	71	77.9	79.7
300	250	83	87.4	91.1
300	300	89	98.4	103.6
350	80	66	66	66
350	100	68	68	69.5
350	150	82.3	81.3	82.3
350	200	86	86	88
350	250	103	92.9	96.5
350	300	111	104.7	109.9
350	350	117	120	129
400	80	80	80	80
400	100	83	83	83
400	150	98	89.3	90.3
400	200	112	102	104
400	250	119	111	114.6
400	300	131	123.2	128.4
400	350	143	146	151
400	400	150	156	167
450	80	85.8	85.8	85.8
450	100	107	90.5	91
450	150	119	101.3	102.2
450	200	130	113.2	115
450	250	141	126.1	129.7
450	300	154	139.4	144.6
450	350	166	150.8	158.7
450	400	179	173.1	182.3
450	500	191	190.8	201.2
500	80	103.2	103.2	103.2
500	100	116	116	117
500	150	137	121.9	122.9
500	200	142	141	143
500	250	165	145.8	149.4
500	300	179	160.2	165.4
500	350	192	175.4	183.3
500	400	199	205	216
500	450	220	212.6	223
500	500	232	247	259
600	80	165	168	169
600	100	171	171	171
600	150	187	187	188
600	200	189	189	191
600	250	219	218	222
600	300	235	235	240
600	350	252	255	263
600	400	258	263	274
600	450	285	293	309
600	500	304	309	331
600	600	340	366	380
700	80	208.8	208.8	208.8
700	100	242	215	215.5
700	150	246	231.1	232.1
700	200	249	252.4	254.2
700	250	268	267.7	271.3
700	300	300	285	290.2
700	350	312	306.9	314.8
700	400	329	337.2	346.4
700	450	369	350.9	361.3
700	500	391	381.4	391.8
700	600	421	432.5	444.9
700	700	476	491.8	524.3
800	80	278.9	278.9	278.9
800	100	304	286.1	286.7
800	150	308	305.1	306
800	200	311	321.5	323.3
800	250	351	347.6	351.2
800	300	371	370.9	376.1
800	350	389.9	392.7	400.6
800	400	405	418.7	427.9
800	450	434.6	443.9	454.3
800	500	522	470.8	481.2
800	600	588	539.6	552
800	700	620	585.5	618
800	800	640	663.5	709.5
900	80	354.6	354.6	354.6
900	100	378	363.6	363.9
900	150	381	385.7	386.7
900	200	385	407	408.8
900	250	436.1	435.8	439.4
900	300	455	463.6	468.8
900	350	486.5	489.3	497.2
900	400	497	521.6	530.8
900	450	538.1	547.4	557.8
900	500	666	579.1	589.5
900	600	758	656.8	669.2
900	700	788	706	738.5
900	800	808	786.5	832.5
900	900	835	873.2	929.2
1000	80	435	435	435
1000	100	461	445.2	445.7
1000	150	464	476.7	477.7
1000	200	467	498.4	500.2
1000	250	521	529.7	533.3
1000	300	552	561.9	567.1
1000	350	588.4	591.2	599.1
1000	400	598	630.3	639.5
1000	450	647.9	657.2	667.6
1000	500	852	692.4	702.8
1000	600	958	781.5	793.9
1000	700	985	839.4	871.9
1000	800	1006	922.2	968.2
1000	900	1052	1011	1067
1000	1000	1072	1132	1205
1200	80	646.3	646.6	646.3
1200	100	676	659.9	660.4
1200	150	678	694.6	695.6
1200	200	682	729.2	731
1200	250	771.3	771	774.6
1200	300	769	813.1	818.3
1200	350	847.7	850.5	858.4
1200	400	852	895.7	904.9
1200	450	930.5	939.8	950.2
1200	500	968	988.4	998.8
1200	600	1031	1099	1112
1200	700	1169	1166	1198
1200	800	1227	1281	1327
1200	900	1367	1382	1438
1200	1000	1436	1510	1583
1200	1200	1682	1761	1852
1400	80	1067	1067	1067
1400	100	1120	1135	1136
1400	200	1189	1188	1189
1400	250	1259	1259	1263
1400	300	1273	1338	1343
1400	350	1389	1392	1400
1400	400	1357	1449	1458
1400	450	1493	1503	1513
1400	500	1449	1554	1564
1400	600	1478	1706	1718
1400	700	1769	1783	1816
1400	800	1709	1926	1972
1400	900	2001	2022	2078
1400	1000	1956	2193	2266
1400	1200	2375	2457	2547
1400	1400	2697	2747	2887
1600	100	1261	1261	1261
1600	200	1361	1748	1750
1600	250	1810	1809	1813
1600	300	1876	1876	1881
1600	400	1561	2008	2019
1600	500	2129	2143	2154
1600	600	1831	2285	2297
1600	800	2121	2829	2875
1600	1000	2416	2862	2935
1600	1200	2743	3205	3295
1600	1400	3073	3539	3679
1600	1600	3461	3975	4135

Full source weight-chart rows from the four archived chart images were transcribed into English, including the large-DN groups. Source specifications are reference values; check current approved dimensions, PN ratings and nominal weights before ordering. Nominal values are not independently certified shipping weights.
