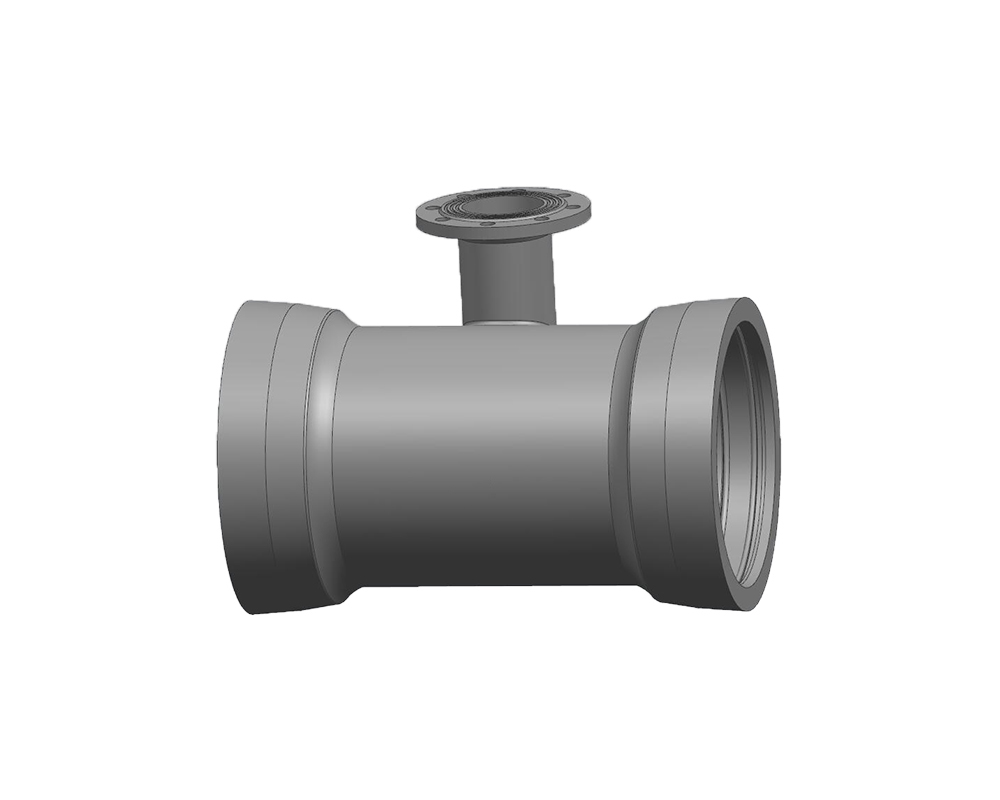

Double-Socket Tee with Flanged Branch and Base
Multi-photo catalogue · Technical reference · Export quotation
Product enquiry
Supply coordination by Aurorvix. Specify DN, PN, connection, dimensions, quantity and delivery port. Technical figures and connection type require order-specific confirmation.
01 · Parameters
Technical Parameters
| Product | Ductile cast-iron fitting |
|---|---|
| Model / type | Double-Socket Tee with Flanged Branch and Base |
| Reference standard on source page | GB/T 13295-2019 |
| Internal protection | Cement mortar |
| External protection | Zinc spray |
| Connection | Source lists socket type; confirm actual socket/flange combination against approved fitting drawing. |
| Applications | Municipal pipeline and water infrastructure; project suitability to be confirmed |
02 · Details
Technical drawings and weight references
Nominal source-chart masses, transcribed into searchable English tables. The figures are for quotation reference and not guaranteed dispatch weights.
| Size group (source) | Branch size (source) | Nominal mass (kg) |
|---|---|---|
| 200 | 100 | 40 |
| 200 | 150 | 48 |
| 250 | 100 | 52 |
| 250 | 150 | 69 |
| 250 | 200 | 72 |
| 300 | 100 | 65 |
| 300 | 150 | 81 |
| 300 | 200 | 88 |
| 350 | 100 | 80 |
| 350 | 150 | 101 |
| 350 | 200 | 160 |
| 400 | 100 | 98 |
| 400 | 150 | 111 |
| 400 | 200 | 127 |
| 400 | 250 | 147 |
| 450 | 100 | 125 |
| 450 | 150 | 143 |
| 450 | 200 | 156 |
| 450 | 250 | 170 |
| 450 | 300 | 191 |
| 500 | 100 | 136 |
| 500 | 150 | 164 |
| 500 | 200 | 174 |
| 500 | 250 | 200 |
| 500 | 300 | 221 |
| 500 | 350 | 235 |
| 600 | 100 | 205 |
| 600 | 150 | 219 |
| 600 | 200 | 225 |
| 600 | 250 | 263 |
| 600 | 300 | 283 |
| 600 | 350 | 311 |
| 600 | 400 | 323 |
| 700 | 100 | 266 |
| 700 | 150 | 291 |
| 700 | 200 | 299 |
| 700 | 300 | 330 |
| 800 | 100 | 330 |
| 800 | 150 | 335 |
| 800 | 200 | 342 |
| 800 | 250 | 386 |
| 800 | 300 | 408 |
| 900 | 150 | 450 |
| 900 | 200 | 462 |
| 900 | 300 | 500 |
| 1000 | 100 | 496 |
| 1000 | 150 | 508 |
| 1000 | 200 | 551 |
| 1000 | 300 | 557 |
| 1200 | 200 | 747 |
| 1200 | 400 | 881 |
All legible source table rows from both archived chart images, including larger DN groupings. Validate the base and flange configuration and project dimensions. Confirm DN, connection geometry, standard edition and nominal weights using approved order drawings.
