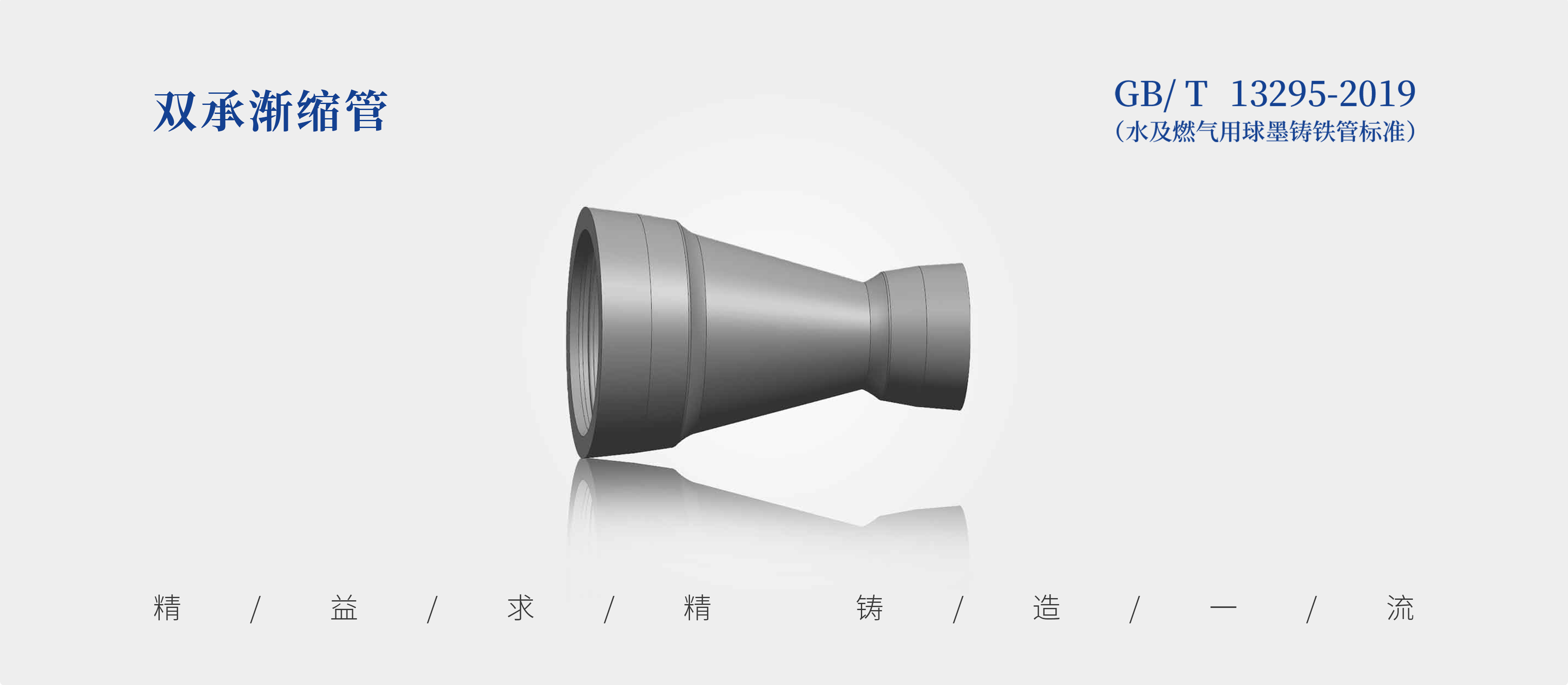

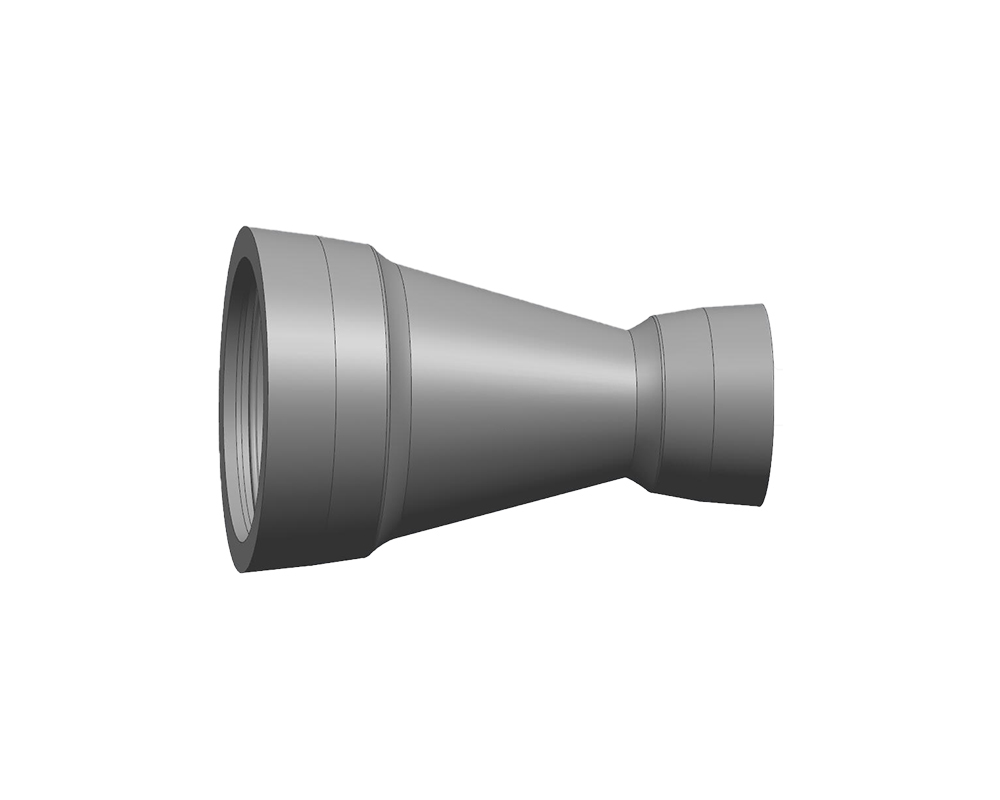

Double-Socket Reducer
Multi-photo catalogue · Technical reference · Export quotation
Product enquiry
Supply coordination by Aurorvix. Specify DN, PN, connection, dimensions, quantity and delivery port. Technical figures and connection type require order-specific confirmation.
01 · Parameters
Technical Parameters
| Product | Ductile cast-iron fitting |
|---|---|
| Model / type | Double-Socket Reducer |
| Reference standard on source page | GB/T 13295-2019 |
| Internal protection | Cement mortar |
| External protection | Zinc spray |
| Connection | Socket-type connection per archived source, subject to actual fitting drawing |
| Applications | Municipal pipeline and water infrastructure; project suitability to be confirmed |
02 · Details
Technical drawings and weight references
English HTML transcription of nominal source data. These reference weights and DN combinations must be confirmed against the approved quotation drawing.
| Size group (source) | Reduced size (source) | Nominal mass (kg) |
|---|---|---|
| 100 | 80 | 8.5 |
| 125 | 80 | 10.8 |
| 125 | 100 | 11.1 |
| 150 | 80 | 13.5 |
| 150 | 100 | 13.8 |
| 150 | 125 | 14.4 |
| 200 | 100 | 20.5 |
| 200 | 125 | 20.5 |
| 200 | 150 | 21 |
| 250 | 100 | 28.5 |
| 250 | 125 | 29 |
| 250 | 150 | 29 |
| 250 | 200 | 29 |
| 300 | 100 | 39 |
| 300 | 150 | 39.5 |
| 300 | 200 | 39.5 |
| 300 | 250 | 38.5 |
| 350 | 100 | 50 |
| 350 | 150 | 52 |
| 350 | 200 | 52 |
| 350 | 250 | 51 |
| 350 | 300 | 49.5 |
| 400 | 100 | 65 |
| 400 | 150 | 66.5 |
| 400 | 200 | 67 |
| 400 | 250 | 66 |
| 400 | 300 | 64 |
| 400 | 350 | 62 |
| 450 | 100 | 87.9 |
| 450 | 150 | 88.9 |
| 450 | 200 | 89.2 |
| 450 | 250 | 88.9 |
| 450 | 300 | 88.1 |
| 450 | 350 | 86 |
| 450 | 400 | 83.1 |
| 500 | 100 | 101 |
| 500 | 150 | 102 |
| 500 | 200 | 101 |
| 500 | 250 | 101 |
| 500 | 300 | 100 |
| 500 | 350 | 98 |
| 500 | 400 | 94 |
| 500 | 450 | 99.5 |
| 600 | 100 | 152 |
| 600 | 150 | 153 |
| 600 | 200 | 154 |
| 600 | 250 | 153 |
| 600 | 300 | 152 |
| 600 | 350 | 151 |
| 600 | 400 | 142 |
| 600 | 450 | 149 |
| 600 | 500 | 131 |
| 700 | 500 | 194 |
| 700 | 600 | 178 |
| 800 | 100 | 320 |
| 800 | 200 | 315 |
| 800 | 300 | 292 |
| 800 | 400 | 285 |
| 800 | 500 | 270 |
| 800 | 600 | 252 |
| 800 | 700 | 229 |
| 900 | 700 | 318 |
| 900 | 800 | 288 |
| 1000 | 600 | 430 |
| 1000 | 800 | 392 |
| 1000 | 900 | 354 |
| 1200 | 1000 | 570 |
| 1400 | 1200 | 711 |
| 1600 | 1400 | 950 |
Two dimensions are read as the source prints them, without silently reassigning connections. Some nominal mass values are non-monotonic and remain uncorrected. Nominal values are not independently certified shipping weights.
Manufacturing process overview
Moulding and castingSource-described sand preparation, moulding and pouring
FinishingMachining, surface treatment and corrosion protection
InspectionDimensions and testing subject to project specification
