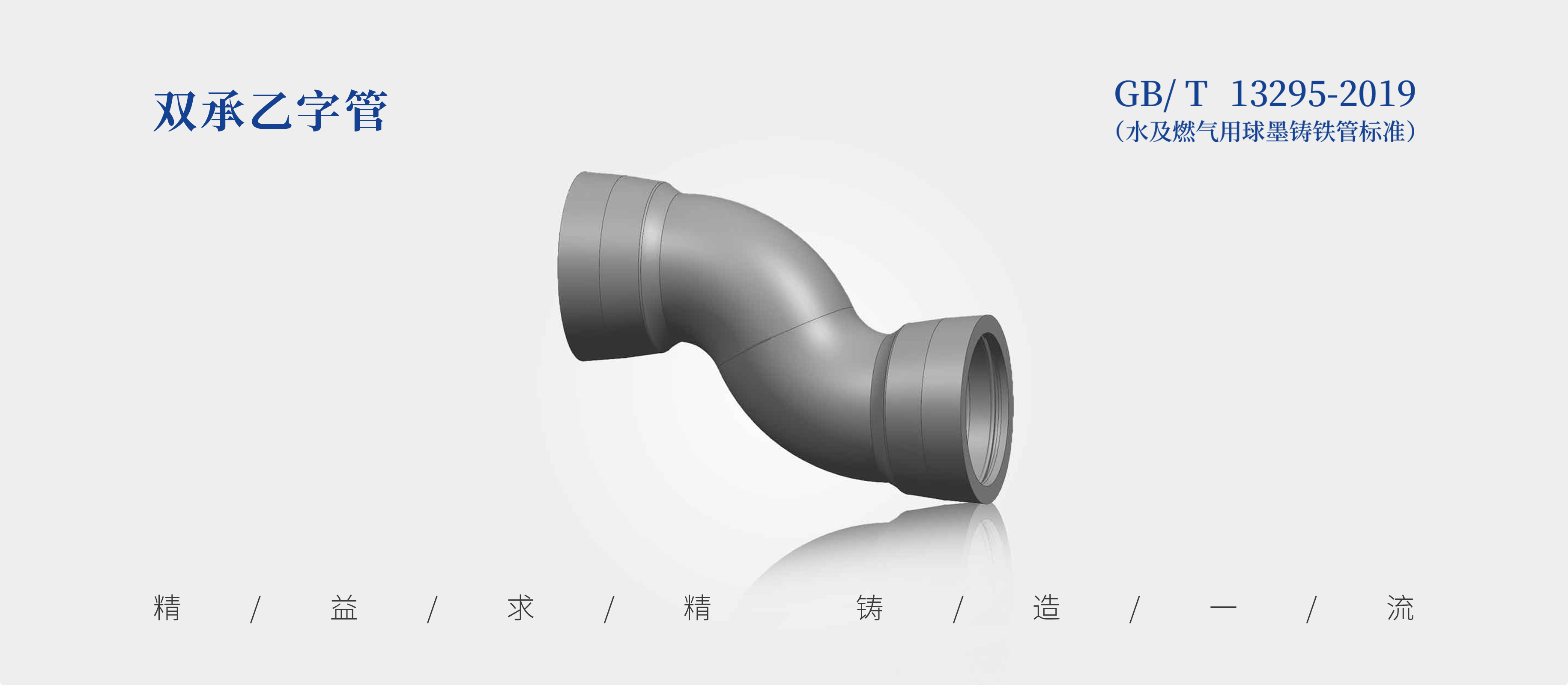

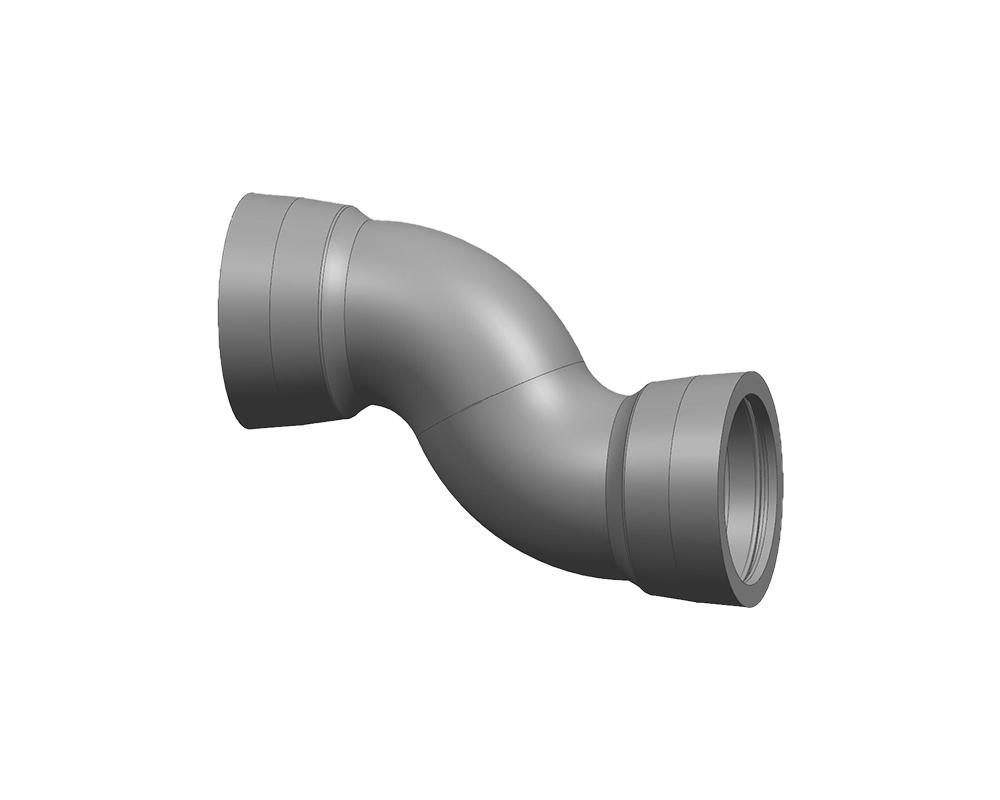

Double-Socket Offset Pipe
Multi-photo catalogue · Technical reference · Export quotation
Product enquiry
Supply coordination by Aurorvix. Specify DN, PN, connection, dimensions, quantity and delivery port. Technical figures and connection type require order-specific confirmation.
01 · Parameters
Technical Parameters
| Product | Ductile cast-iron fitting |
|---|---|
| Model / type | Double-Socket Offset Pipe |
| Reference standard on source page | GB/T 13295-2019 |
| Internal protection | Cement mortar |
| External protection | Zinc spray |
| Connection | Original page says socket-type even for flange-designated products; confirm the actual joint from drawing |
| Applications | Municipal pipeline and water infrastructure; project suitability to be confirmed |
02 · Details
Technical drawings and weight references
English HTML transcription of the original source product weight table. For quotation reference; verify ordered configuration and technical drawings.
| Nominal size (source) | Nominal mass (kg) |
|---|---|
| 100 | 18.7 |
| 150 | 36.2 |
| 200 | 51.6 |
| 250 | 70.4 |
| 300 | 90.7 |
| 350 | 123 |
| 400 | 161 |
| 450 | 222 |
| 500 | 256 |
| 600 | 383 |
| 700 | 519 |
| 1000 | 1220 |
Single-specification source chart. Confirm product geometry, effective length and joint tolerance with order drawings. All values are nominal source references, not shipment acceptance criteria.
Manufacturing process overview
Moulding and castingSource-described sand preparation, moulding and pouring
FinishingMachining, surface treatment and corrosion protection
InspectionDimensions and testing subject to project specification
