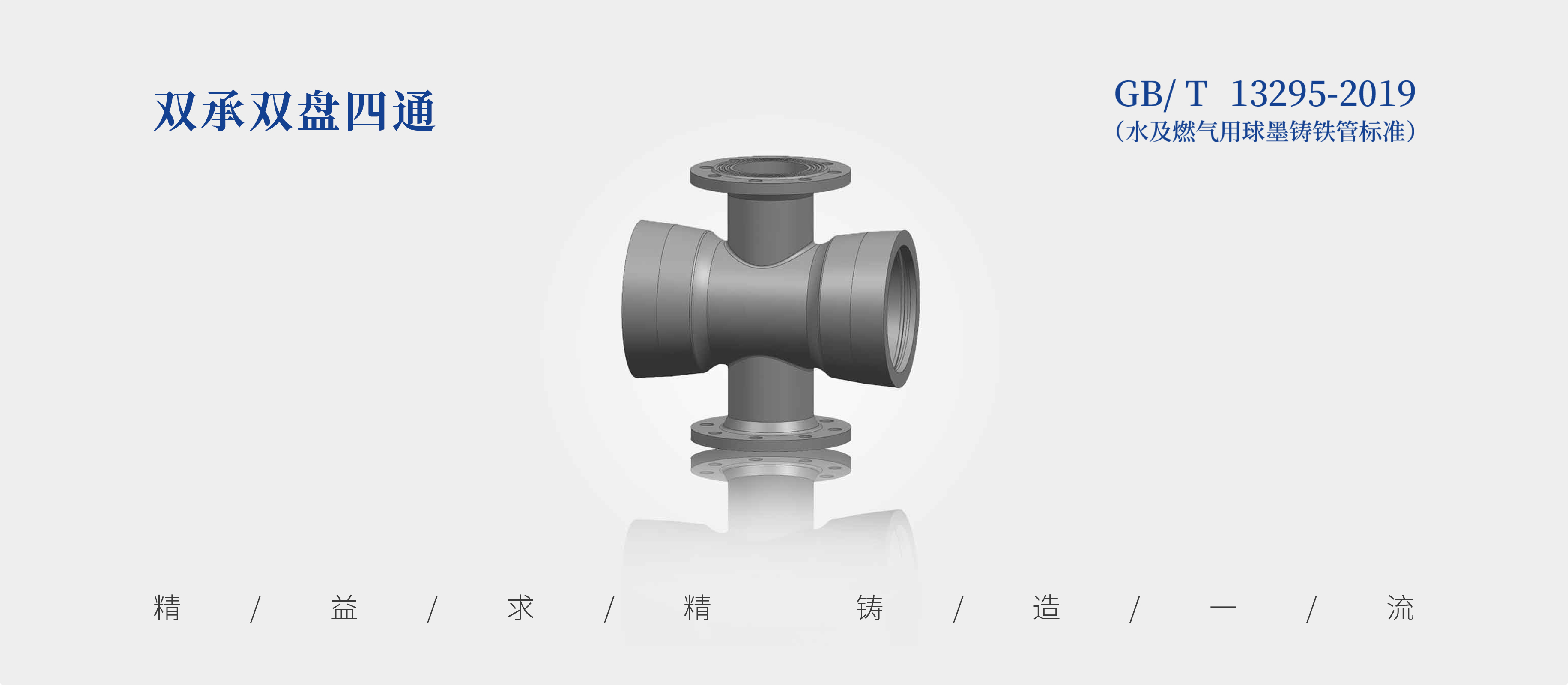

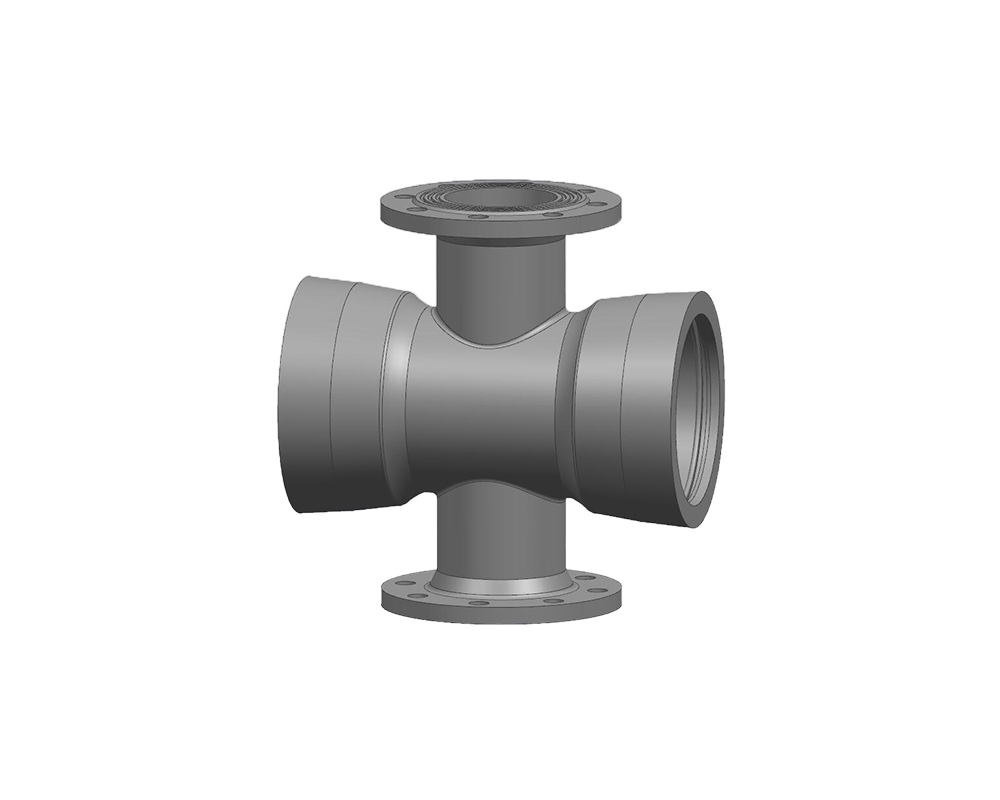

Double-Socket Double-Flanged Cross
Multi-photo catalogue · Technical reference · Export quotation
Product enquiry
Supply coordination by Aurorvix. Specify DN, PN, connection, dimensions, quantity and delivery port. Technical figures and connection type require order-specific confirmation.
01 · Parameters
Technical Parameters
| Product | Ductile cast-iron fitting |
|---|---|
| Model / type | Double-Socket Double-Flanged Cross |
| Reference standard on source page | GB/T 13295-2019 |
| Internal protection | Cement mortar |
| External protection | Zinc spray |
| Connection | Source states socket-type; confirm the exact combination of flanged and socket ends with the approved fitting drawing |
| Applications | Municipal pipeline and water infrastructure; project suitability to be confirmed |
02 · Details
Technical drawings and weight references
English HTML transcription of nominal source data. These reference weights and DN combinations must be confirmed against the approved quotation drawing.
| Size group (source) | Branch / second size (source) | Nominal mass (kg) |
|---|---|---|
| 100 | 80 | 20.6 |
| 100 | 100 | 23 |
| 150 | 100 | 30.4 |
| 150 | 150 | 38.8 |
| 200 | 100 | 39 |
| 200 | 150 | 48.4 |
| 200 | 200 | 60 |
| 250 | 100 | 50 |
| 250 | 150 | 60 |
| 250 | 200 | 70 |
| 250 | 250 | 85 |
| 300 | 80 | 60.5 |
| 300 | 100 | 61 |
| 300 | 150 | 75 |
| 300 | 200 | 84 |
| 300 | 250 | 105 |
| 300 | 300 | 117 |
| 350 | 100 | 74 |
| 350 | 150 | 87 |
| 350 | 200 | 100 |
| 350 | 350 | 156 |
| 400 | 80 | 89 |
| 400 | 100 | 91 |
| 400 | 150 | 110 |
| 400 | 200 | 116 |
| 400 | 240 | 137.5 |
| 400 | 300 | 159 |
| 400 | 400 | 202 |
| 500 | 80 | 123 |
| 500 | 100 | 127 |
| 500 | 150 | 150 |
| 500 | 200 | 156 |
| 500 | 300 | 194 |
| 500 | 400 | 252 |
| 500 | 500 | 322 |
| 600 | 100 | 179 |
| 600 | 200 | 204 |
| 600 | 300 | 257 |
| 600 | 400 | 311 |
| 600 | 500 | 395 |
| 600 | 600 | 479 |
| 700 | 200 | 256 |
| 700 | 300 | 312 |
| 700 | 400 | 369 |
| 700 | 500 | 481 |
| 700 | 600 | 537 |
| 700 | 700 | 593 |
| 800 | 200 | 383 |
| 800 | 300 | 447 |
| 800 | 400 | 520 |
| 800 | 500 | 578 |
| 800 | 600 | 710 |
| 800 | 700 | 755 |
| 800 | 800 | 800 |
The two generic source size columns are preserved. Confirm the engineering interpretation of each inlet/branch diameter against the approved drawing. Source pages 1–2 were read for this table. Nominal values are not independently certified shipping weights.
Manufacturing process overview
Moulding and castingSource-described sand preparation, moulding and pouring
FinishingMachining, surface treatment and corrosion protection
InspectionDimensions and testing subject to project specification
Email / Request a Quote
Double-Socket Double-Flanged Cross
Send size, pressure class, quantities and port.
Email: samson@aurorvix.com
