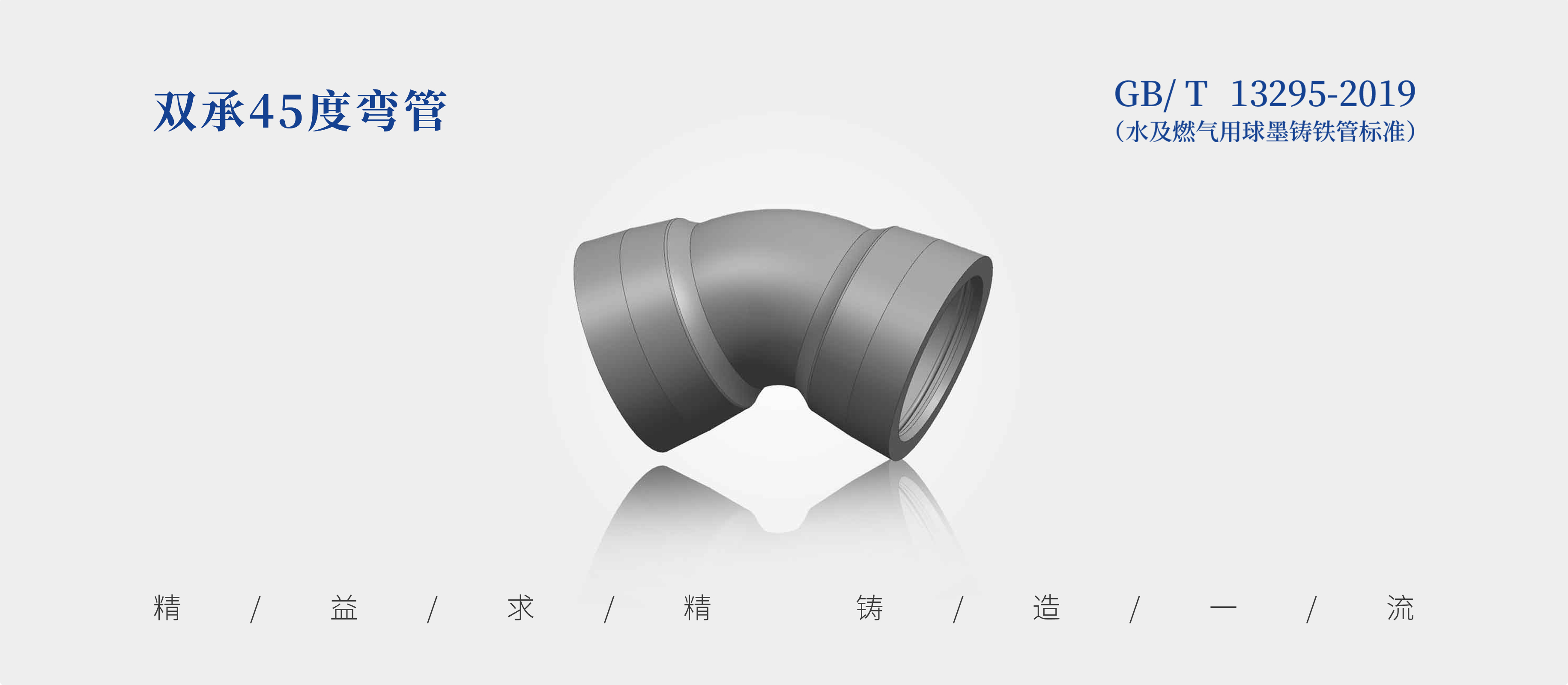

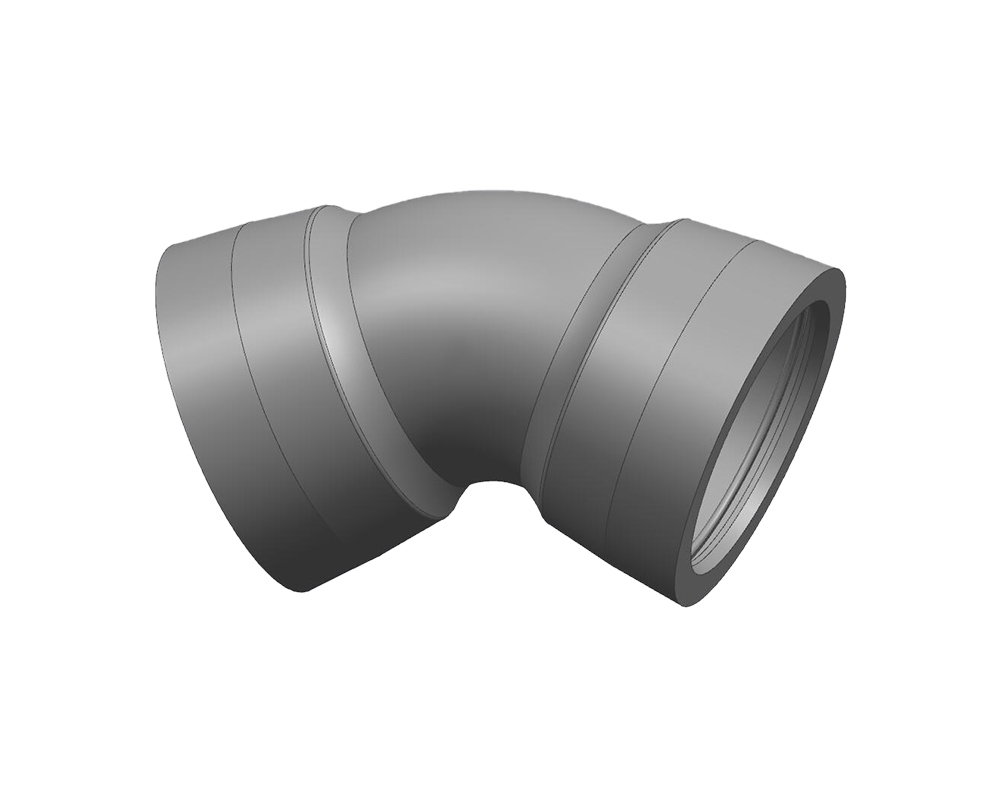

Double-Socket 45° Bend
Multi-photo catalogue · Technical reference · Export quotation
Product enquiry
Supply coordination by Aurorvix. Specify DN, PN, connection, dimensions, quantity and delivery port. Technical figures and connection type require order-specific confirmation.
01 · Parameters
Technical Parameters
| Product | Ductile cast-iron fitting |
|---|---|
| Model / type | Double-Socket 45° Bend |
| Reference standard on source page | GB/T 13295-2019 |
| Internal protection | Cement mortar |
| External protection | Zinc spray |
| Connection | Socket-type connection per archived source, subject to actual fitting drawing |
| Applications | Municipal pipeline and water infrastructure; project suitability to be confirmed |
02 · Details
Technical drawings and weight references
English HTML transcription of nominal source data. These reference weights and DN combinations must be confirmed against the approved quotation drawing.
| DN nominal size (source) | Nominal mass (kg) |
|---|---|
| 80 | 7.7 |
| 100 | 10.1 |
| 125 | 13.6 |
| 150 | 17.4 |
| 200 | 27 |
| 250 | 38.5 |
| 300 | 53 |
| 350 | 70 |
| 400 | 89 |
| 450 | 123 |
| 500 | 139 |
| 600 | 202 |
| 700 | 310 |
| 800 | 418 |
| 900 | 554 |
| 1000 | 710 |
| 1200 | 1109 |
| 1400 | 1632 |
| 1600 | 1693 |
Nominal weights reproduced from the source without filling missing structural dimensions. Nominal values are not independently certified shipping weights.
Manufacturing process overview
Moulding and castingSource-described sand preparation, moulding and pouring
FinishingMachining, surface treatment and corrosion protection
InspectionDimensions and testing subject to project specification
