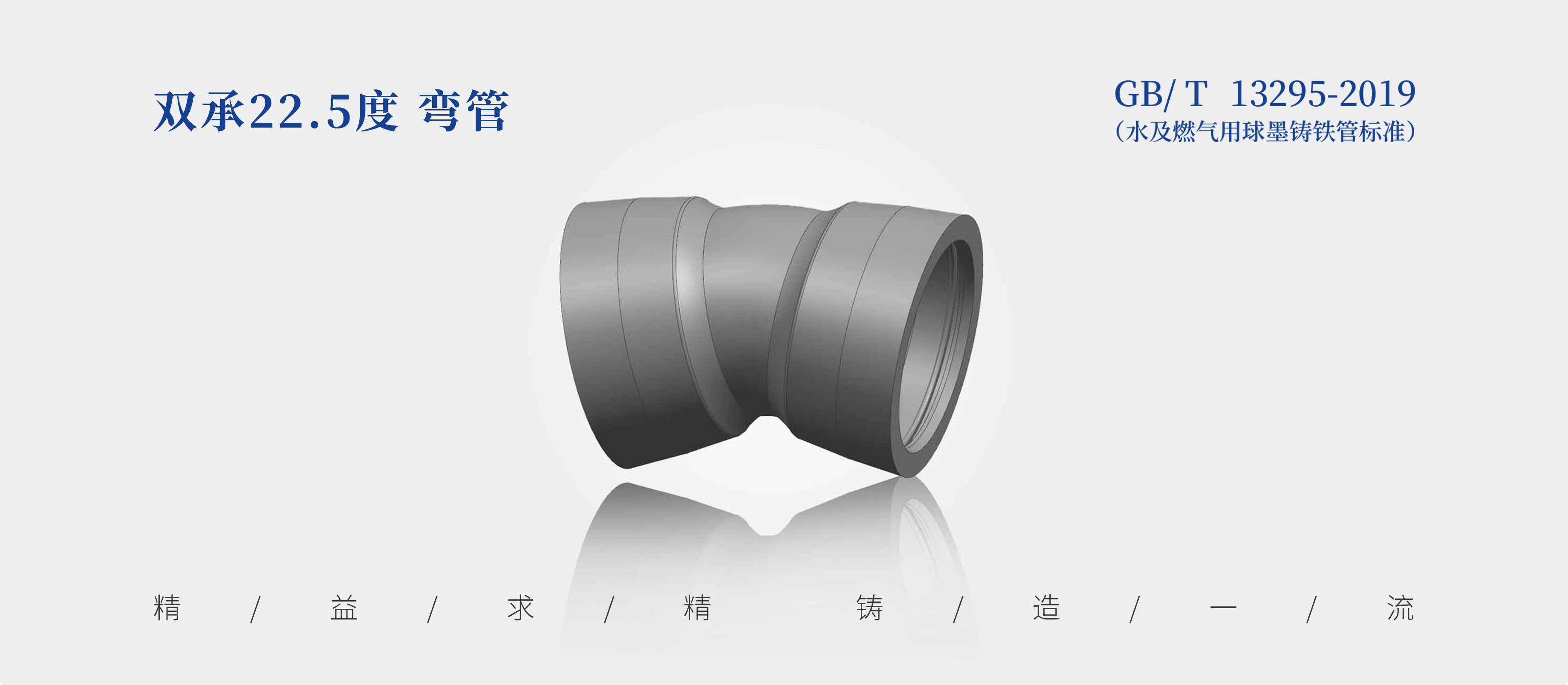

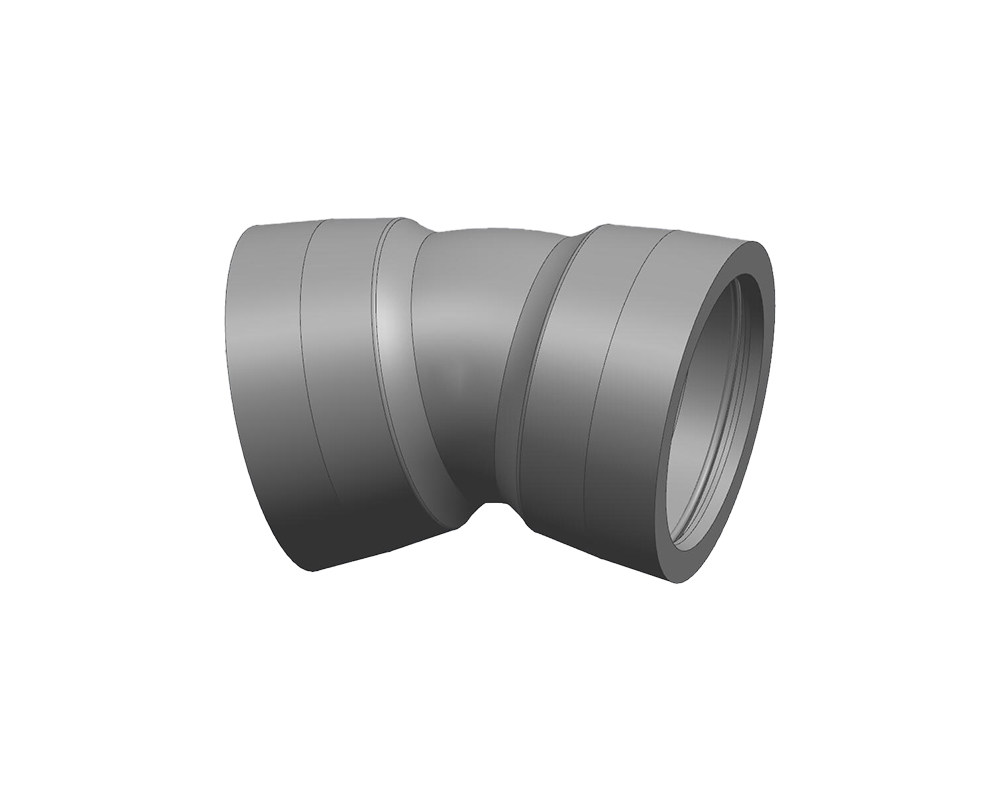

Double-Socket 22.5° Bend
Multi-photo catalogue · Technical reference · Export quotation
Product enquiry
Supply coordination by Aurorvix. Specify DN, PN, connection, dimensions, quantity and delivery port. Technical figures and connection type require order-specific confirmation.
01 · Parameters
Technical Parameters
| Product | Ductile cast-iron fitting |
|---|---|
| Model / type | Double-Socket 22.5° Bend |
| Reference standard on source page | GB/T 13295-2019 |
| Internal protection | Cement mortar |
| External protection | Zinc spray |
| Connection | Socket-type connection according to archived source; confirm with the approved cross drawing. |
| Applications | Municipal pipeline and water infrastructure; project suitability to be confirmed |
02 · Details
Technical drawings and weight references
Nominal mass data transcribed from archived technical figures. Confirm pressure class and dimensions when placing an order.
| DN nominal size (source) | Nominal mass (kg) |
|---|---|
| 80 | 7.3 |
| 100 | 9.3 |
| 125 | 12.6 |
| 150 | 15.9 |
| 200 | 24 |
| 250 | 33.5 |
| 300 | 44.5 |
| 350 | 58 |
| 400 | 74 |
| 450 | 102 |
| 500 | 111 |
| 600 | 157 |
| 700 | 248 |
| 800 | 331 |
| 900 | 432 |
| 1000 | 550 |
| 1200 | 851 |
| 1400 | 1241 |
| 1600 | 1377 |
All DN entries transcribed from the archived nominal-weight source image. Do not infer pressure classes from this single weight column. Values are for enquiry reference, not certified dispatch mass.
Manufacturing process overview
Moulding and castingSource-described sand preparation, moulding and pouring
FinishingMachining, surface treatment and corrosion protection
InspectionDimensions and testing subject to project specification
