Double-Flanged 22.5° Bend

Multi-photo catalogue · Technical reference · Export quotation

Product enquiry

Supply coordination by Aurorvix. Specify DN, PN, connection, dimensions, quantity and delivery port. Technical figures and connection type require order-specific confirmation.

Request a Quote Email Aurorvix

01 · Parameters

Technical Parameters

Product	Ductile cast-iron fitting

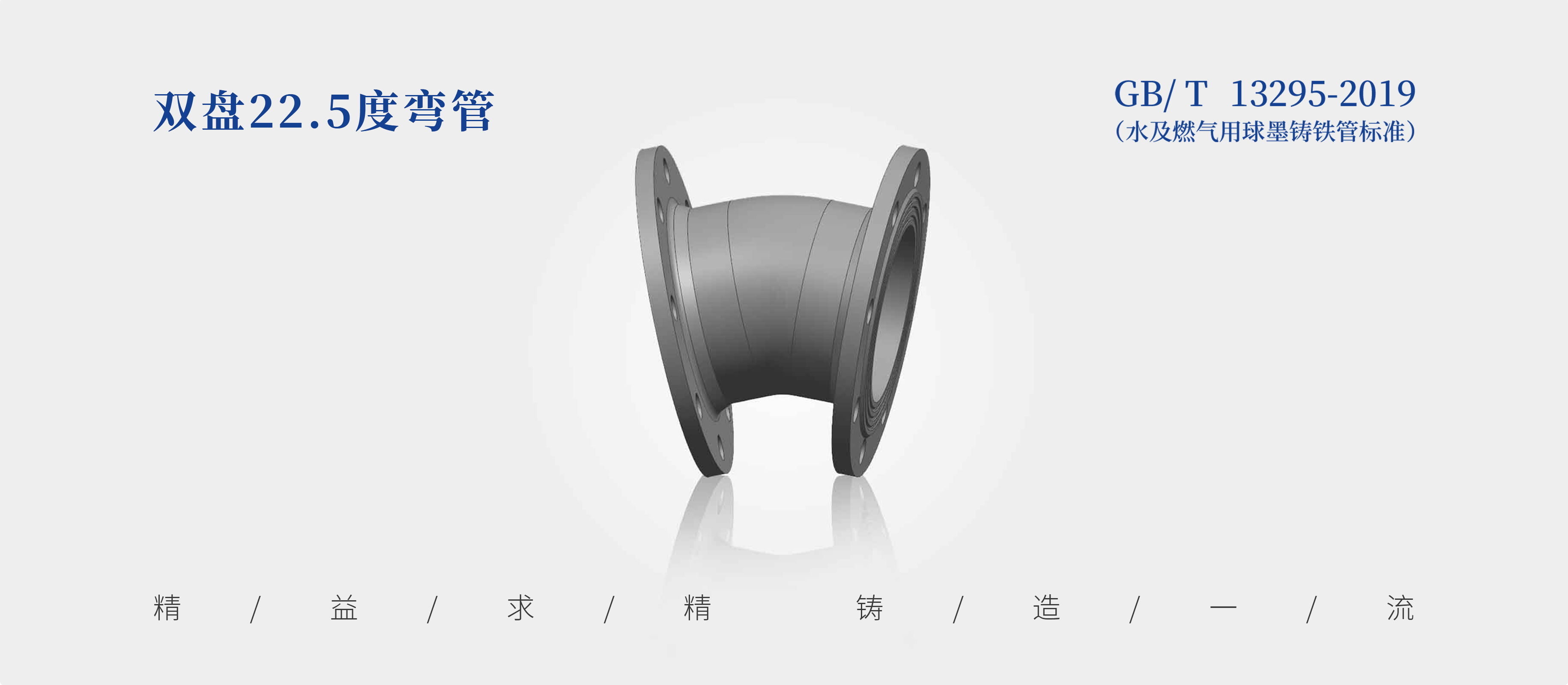

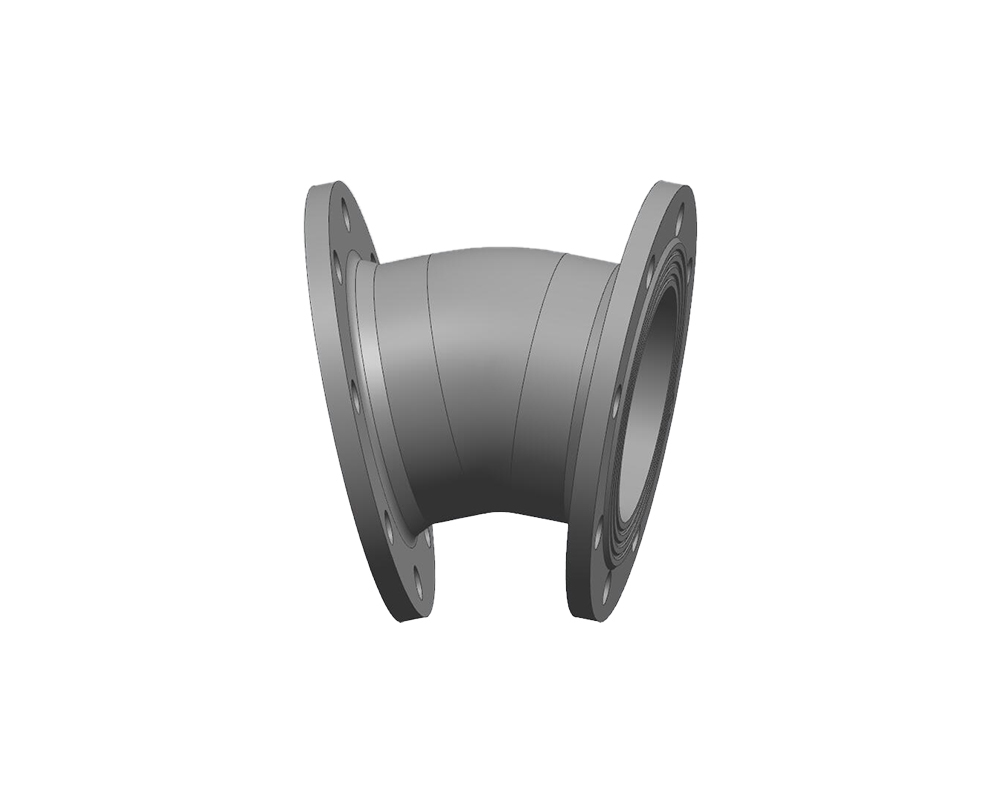

Model / type	Double-Flanged 22.5° Bend
Reference standard on source page	GB/T 13295-2019
Internal protection	Cement mortar
External protection	Zinc spray
Connection	Original page says socket-type even for flange-designated products; confirm the actual joint from drawing
Applications	Municipal pipeline and water infrastructure; project suitability to be confirmed

02 · Details

Technical drawings and weight references

English HTML transcription of the original source product weight table. For quotation reference; verify ordered configuration and technical drawings.

Source nominal size	PN10 mass (kg)	PN16 mass (kg)	PN25 mass (kg)
80	9.2	9.2	9.2
100	11.5	11.5	12.6
150	18.6	18.6	20.8
200	27.4	27	31
250	55.3	37.1	46
300	78.3	50.3	63
350	76.8	67.9	87.2
400	96	90.7	113.1
450	118	110	135.4
500	146	142.9	168.3
600	214	215.7	246
700	252	250.9	330.2
800	288	330.3	422.3
900	361	416.2	528.2
1000	459	552.6	697.8
1200	717	853.2	1035
1400	1021	1157	1388
1600	1190	1468	1789

PN10/PN16/PN25 columns replicate source as printed. In particular some intermediate size rows are non-monotonic; these were not corrected. All values are nominal source references, not shipment acceptance criteria.

Manufacturing process overview

Moulding and castingSource-described sand preparation, moulding and pouring

FinishingMachining, surface treatment and corrosion protection

InspectionDimensions and testing subject to project specification
