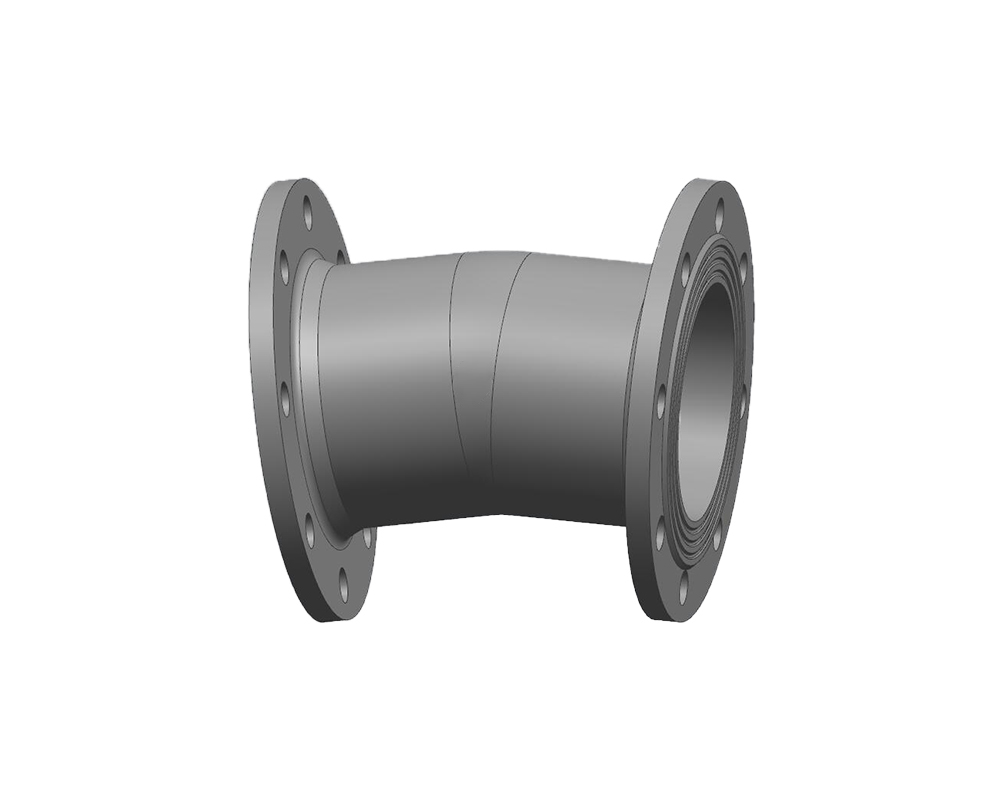

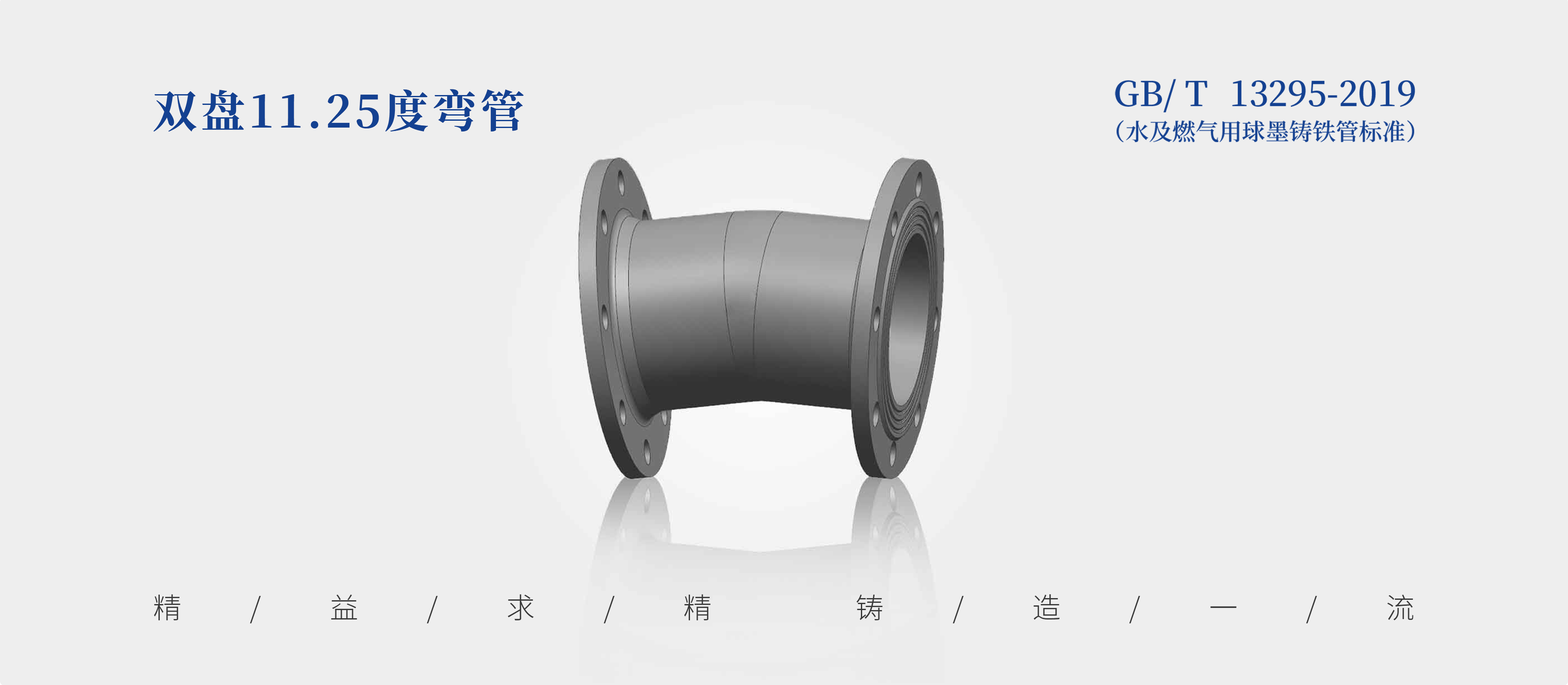

Double-Flanged 11.25° Bend

Multi-photo catalogue · Technical reference · Export quotation

Product enquiry

Supply coordination by Aurorvix. Specify DN, PN, connection, dimensions, quantity and delivery port. Technical figures and connection type require order-specific confirmation.

Request a Quote Email Aurorvix

01 · Parameters

Technical Parameters

Product	Ductile cast-iron fitting
Model / type	Double-Flanged 11.25° Bend
Reference standard on source page	GB/T 13295-2019
Internal protection	Cement mortar
External protection	Zinc spray
Connection	Original page says socket-type even for flange-designated products; confirm the actual joint from drawing
Applications	Municipal pipeline and water infrastructure; project suitability to be confirmed

02 · Details

Technical drawings and weight references

English HTML transcription of the original source product weight table. For quotation reference; verify ordered configuration and technical drawings.

Source nominal size	PN10 mass (kg)	PN16 mass (kg)	PN25 mass (kg)
80	9.2	9.2	9.2
100	11.5	11.5	12.5
150	18.6	17.2	19.5
200	27.9	24.4	28.8
250	55.8	33.8	42.8
300	78.8	45.7	58.4
350	77.3	61.8	81
400	96.8	82.7	105.1
450	118	99.3	124.7
500	147	128.7	154.1
600	215	195.7	225.9
700	240	241	320.3
800	270	308	367.3
900	303	351	450.2
1000	382	465	607
1200	590	755.8	937.2
1400	827	995.4	1275
1600	1203	1382	1664

Original source table transcribed without interpolation or adjustment. Confirm mass/PN values against the relevant production drawing. All values are nominal source references, not shipment acceptance criteria.

Manufacturing process overview

Moulding and castingSource-described sand preparation, moulding and pouring

FinishingMachining, surface treatment and corrosion protection

InspectionDimensions and testing subject to project specification
