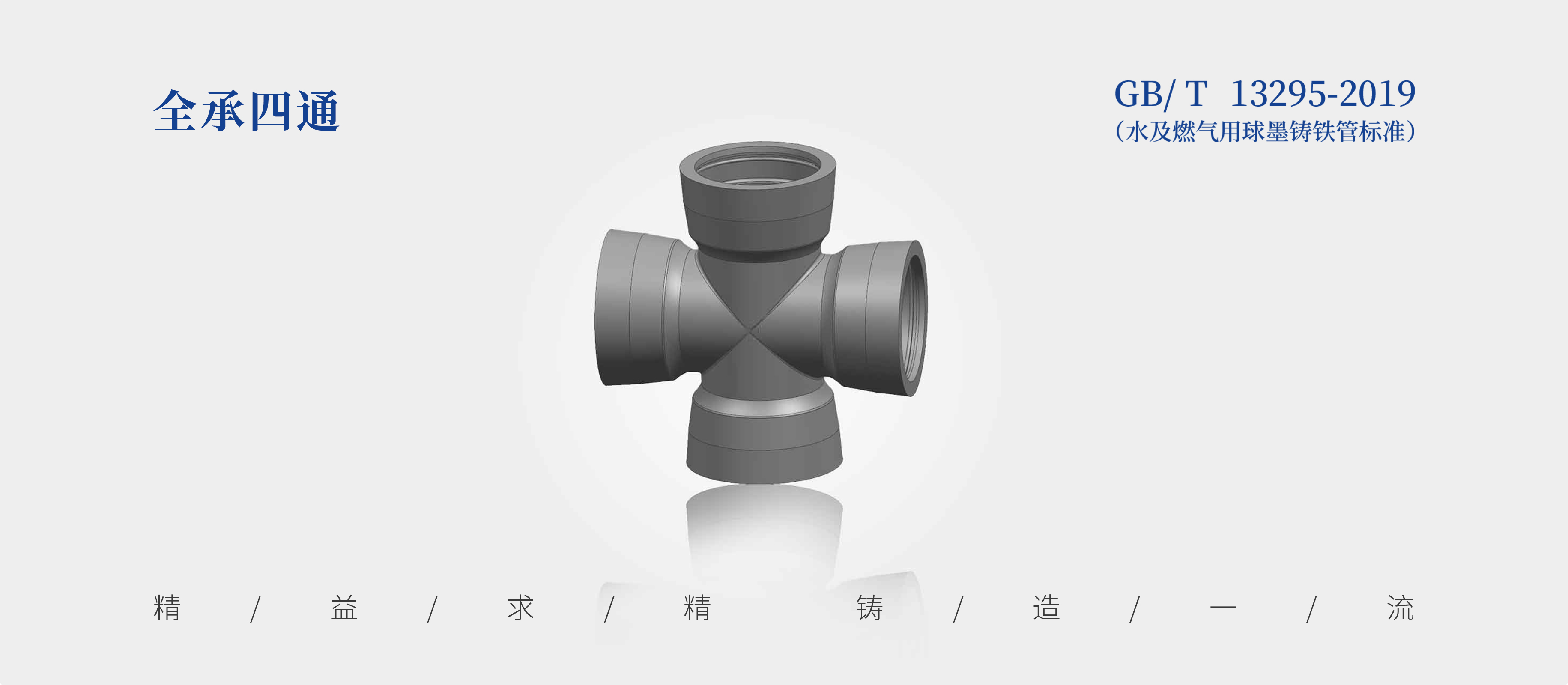

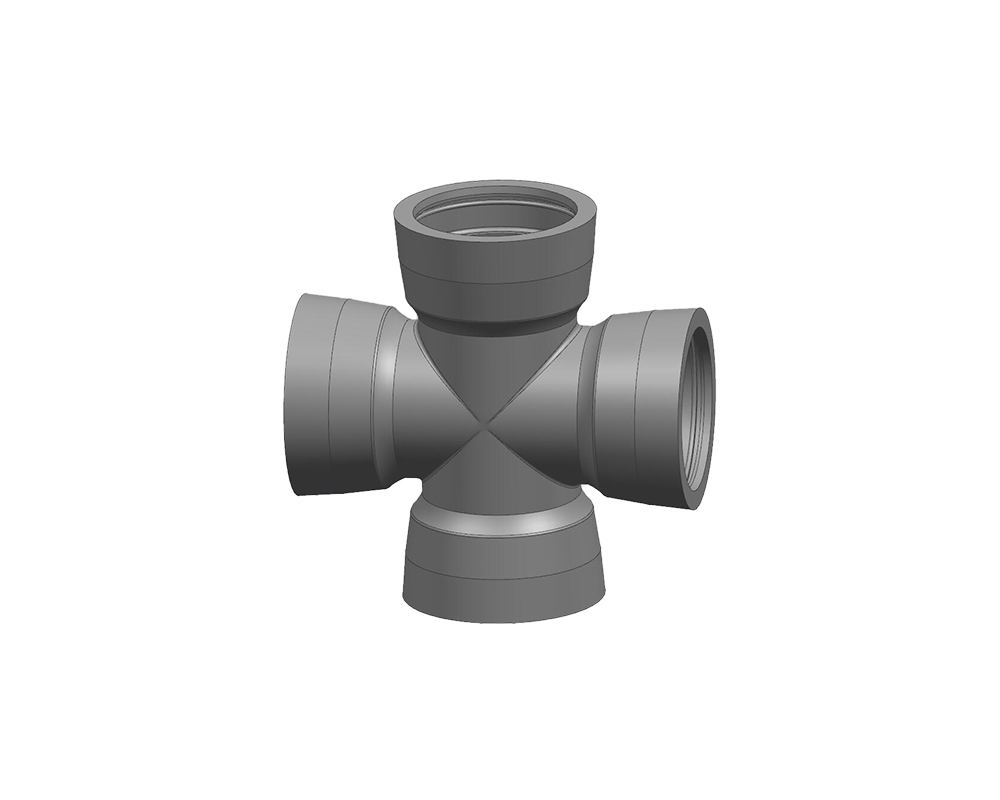

All-Socket Cross
Multi-photo catalogue · Technical reference · Export quotation
Product enquiry
Supply coordination by Aurorvix. Specify DN, PN, connection, dimensions, quantity and delivery port. Technical figures and connection type require order-specific confirmation.
01 · Parameters
Technical Parameters
| Product | Ductile cast-iron fitting |
|---|---|
| Model / type | All-Socket Cross |
| Reference standard on source page | GB/T 13295-2019 |
| Internal protection | Cement mortar |
| External protection | Zinc spray |
| Connection | Socket-type connection according to archived source; confirm with the approved cross drawing. |
| Applications | Municipal pipeline and water infrastructure; project suitability to be confirmed |
02 · Details
Technical drawings and weight references
Nominal mass data transcribed from archived technical figures. Confirm pressure class and dimensions when placing an order.
| Main size (source) | Branch size (source) | Nominal mass (kg) |
|---|---|---|
| 80 | 80 | 15.3 |
| 100 | 80 | 17.2 |
| 100 | 100 | 19.8 |
| 150 | 100 | 26.6 |
| 150 | 150 | 33.6 |
| 200 | 100 | 34.2 |
| 200 | 150 | 41.7 |
| 200 | 200 | 50.8 |
| 250 | 100 | 44.9 |
| 250 | 150 | 57.9 |
| 250 | 200 | 64.2 |
| 250 | 250 | 75.1 |
| 300 | 100 | 55.7 |
| 300 | 150 | 71.1 |
| 300 | 200 | 77.6 |
| 300 | 250 | 93.3 |
| 300 | 300 | 101 |
| 350 | 200 | 91.7 |
| 350 | 250 | 110 |
| 350 | 300 | 123 |
| 350 | 350 | 137 |
| 400 | 200 | 108 |
| 400 | 250 | 130 |
| 400 | 300 | 142 |
| 400 | 350 | 157 |
| 400 | 400 | 177 |
| 500 | 250 | 174 |
| 500 | 300 | 191 |
| 500 | 350 | 207 |
| 500 | 400 | 223 |
| 500 | 500 | 272 |
| 600 | 300 | 249 |
| 600 | 350 | 267 |
| 600 | 400 | 278 |
| 600 | 500 | 330 |
| 600 | 600 | 399 |
| 700 | 350 | 413 |
| 700 | 400 | 447 |
| 700 | 500 | 520 |
| 700 | 600 | 607 |
| 700 | 700 | 712 |
| 800 | 400 | 548 |
| 800 | 500 | 632 |
| 800 | 600 | 725 |
| 800 | 700 | 831 |
| 800 | 800 | 963 |
| 900 | 500 | 757 |
| 900 | 600 | 859 |
| 900 | 700 | 969 |
| 900 | 800 | 1105 |
| 900 | 900 | 1262 |
| 1000 | 600 | 1011 |
| 1000 | 700 | 1130 |
| 1000 | 800 | 1276 |
| 1000 | 900 | 1432 |
| 1000 | 1000 | 1612 |
| 1100 | 700 | 1312 |
| 1100 | 800 | 1459 |
| 1100 | 900 | 1622 |
| 1100 | 1000 | 1803 |
| 1100 | 1100 | 2011 |
| 1200 | 800 | 1677 |
| 1200 | 900 | 1847 |
| 1200 | 1000 | 2034 |
| 1200 | 1100 | 2246 |
| 1200 | 1200 | 2497 |
| 1400 | 900 | 2361 |
| 1400 | 1000 | 2468 |
| 1400 | 1100 | 2683 |
| 1400 | 1200 | 2940 |
| 1400 | 1400 | 3446 |
Both archived chart portions transcribed as size-pair nominal weights. Original source does not label these dimensions as inlet/outlet; confirm geometry with approved drawings. Values are for enquiry reference, not certified dispatch mass.
Manufacturing process overview
Moulding and castingSource-described sand preparation, moulding and pouring
FinishingMachining, surface treatment and corrosion protection
InspectionDimensions and testing subject to project specification
