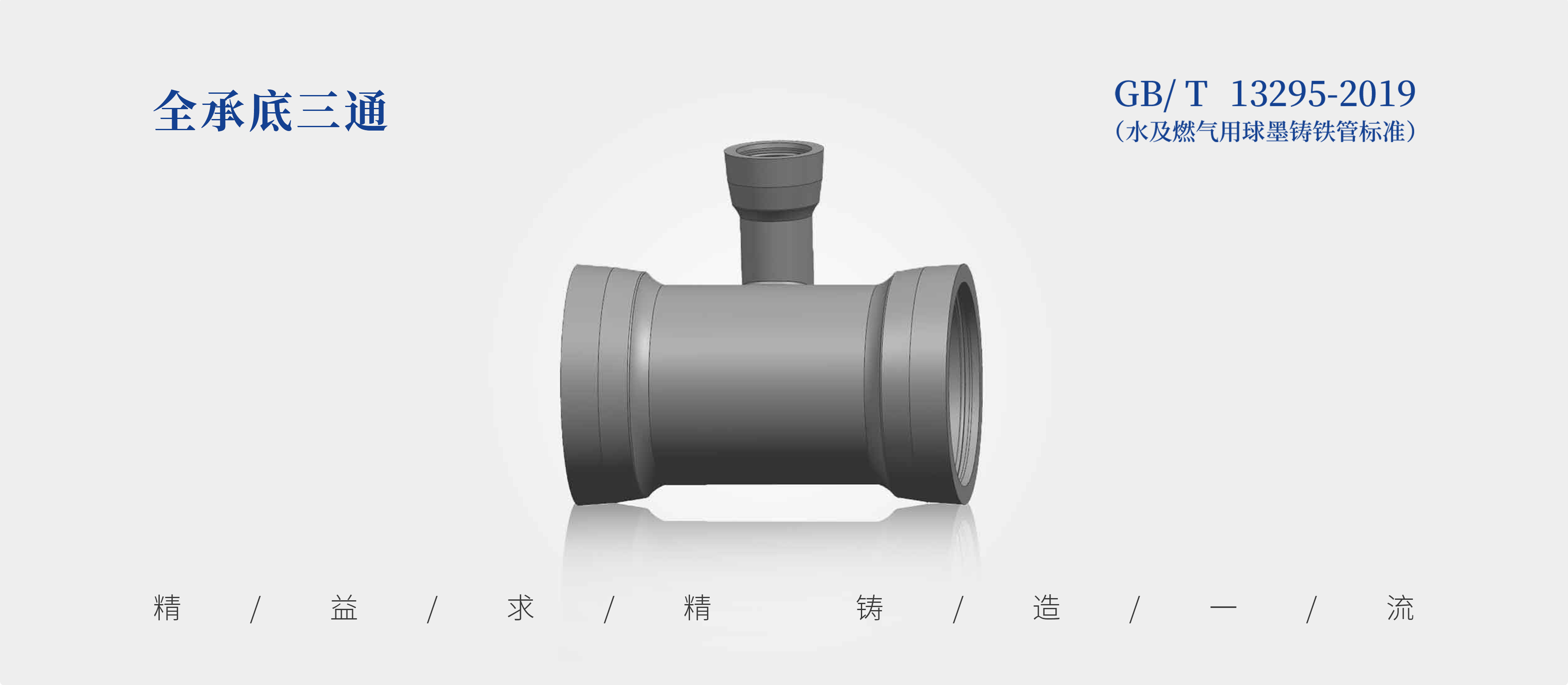

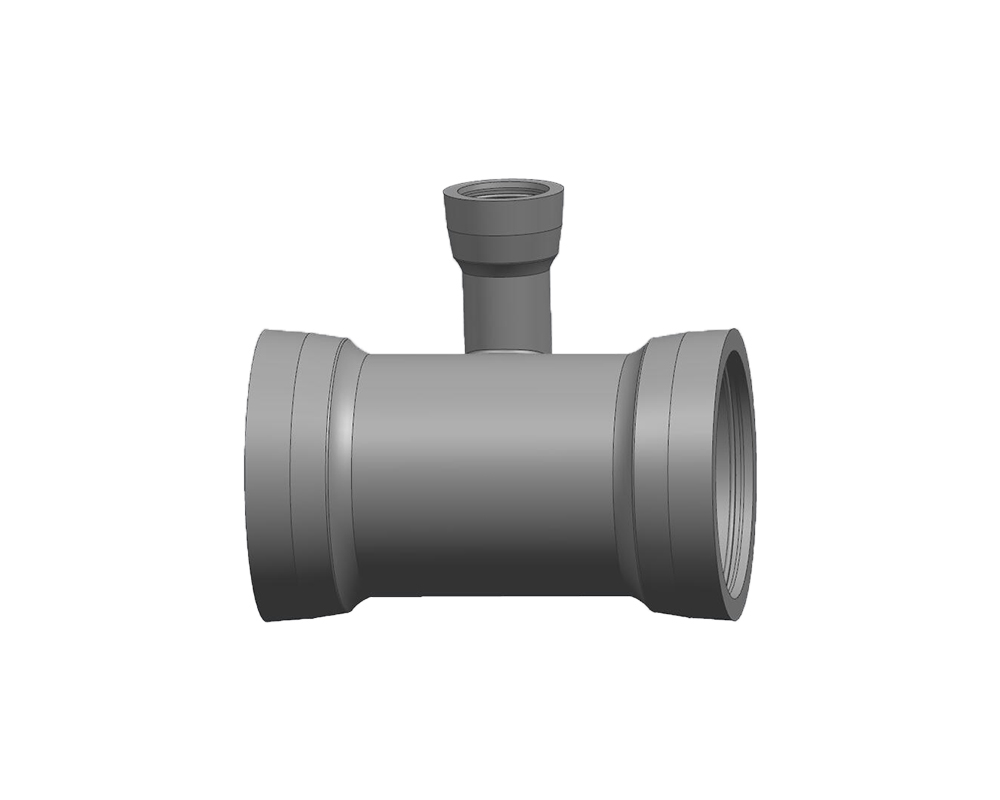

All-Socket Base Tee

Multi-photo catalogue · Technical reference · Export quotation

Product enquiry

Supply coordination by Aurorvix. Specify DN, PN, connection, dimensions, quantity and delivery port. Technical figures and connection type require order-specific confirmation.

Request a Quote Email Aurorvix

01 · Parameters

Technical Parameters

Product	Ductile cast-iron fitting
Model / type	All-Socket Base Tee
Reference standard on source page	GB/T 13295-2019
Internal protection	Cement mortar
External protection	Zinc spray
Connection	Source states socket connection; confirm the complete joint and geometry against the order drawing.
Applications	Municipal pipeline and water infrastructure; project suitability to be confirmed

02 · Details

Technical drawings and weight references

Nominal source-chart masses, transcribed into searchable English tables. The figures are for quotation reference and not guaranteed dispatch weights.

Size group (source)	Branch size (source)	Nominal mass (kg)
200	100	35
200	150	40.5
250	100	45.7
250	150	54.5
250	200	61.5
300	100	58.3
300	150	69.7
300	200	75.5
400	100	86.3
400	150	102
400	200	110
400	250	125
500	100	121
500	150	144
500	200	149
500	250	169
500	300	186
600	100	175
600	150	191
600	200	198
600	250	227
600	300	247
600	400	287

All size combinations in the available product-specific weight image transcribed; validate base geometry and exact joint with approved engineering drawings. Confirm DN, connection geometry, standard edition and nominal weights using approved order drawings.

Manufacturing process overview

Moulding and castingSource-described sand preparation, moulding and pouring

FinishingMachining, surface treatment and corrosion protection

InspectionDimensions and testing subject to project specification
