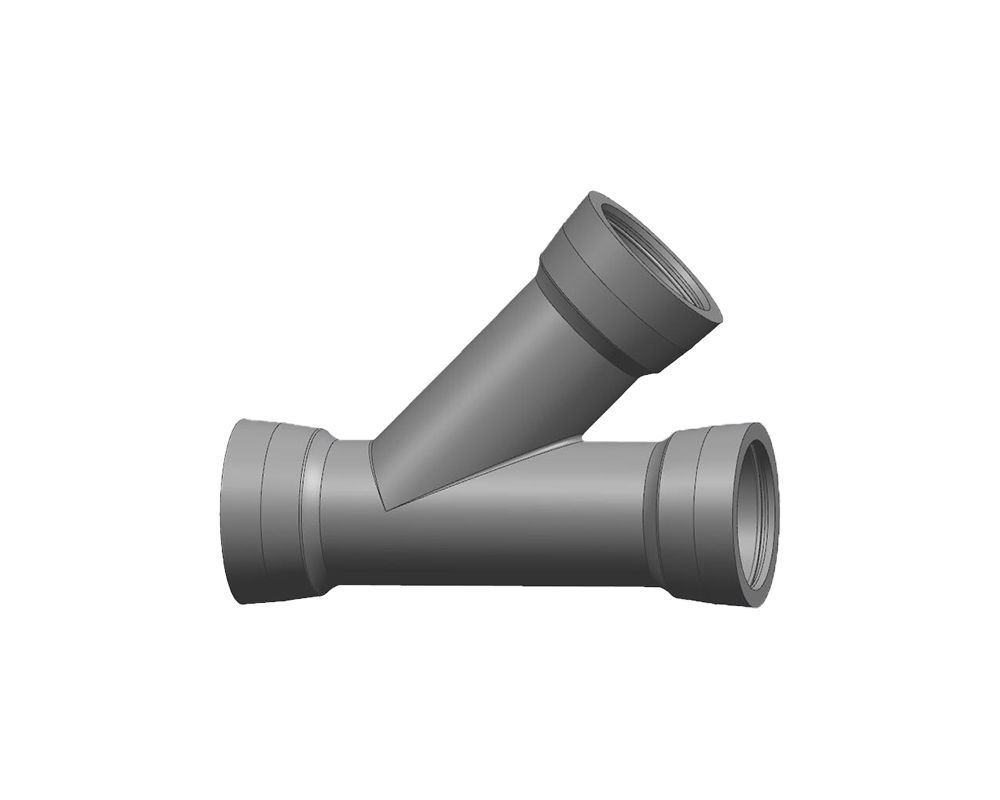

All-Socket 45° Wye Tee
Multi-photo catalogue · Technical reference · Export quotation
Product enquiry
Supply coordination by Aurorvix. Specify DN, PN, connection, dimensions, quantity and delivery port. Technical figures and connection type require order-specific confirmation.
Technical Parameters
| Product | Ductile cast-iron fitting |
|---|---|
| Model / type | All-Socket 45° Wye Tee |

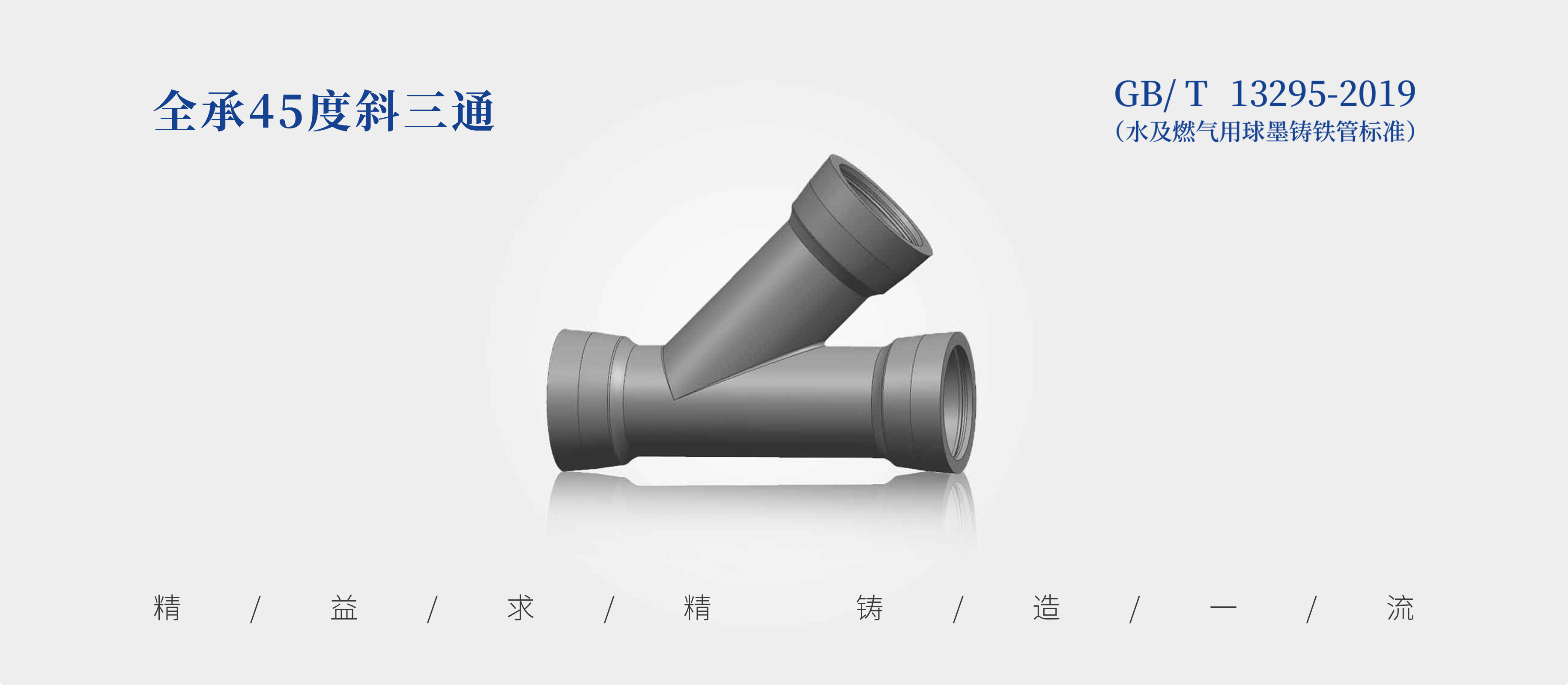

| Reference standard on source page | GB/T 13295-2019 |
| Internal protection | Cement mortar |
| External protection | Zinc spray |
| Connection | Source states socket connection; confirm the complete joint and geometry against the order drawing. |
| Applications | Municipal pipeline and water infrastructure; project suitability to be confirmed |
Technical drawings and weight references
Nominal source-chart masses, transcribed into searchable English tables. The figures are for quotation reference and not guaranteed dispatch weights.
| Size group (source) | Branch size (source) | PN10 nominal mass (kg) | PN16 nominal mass (kg) | PN25 nominal mass (kg) |
|---|---|---|---|---|
| 80 | 80 | 21.4 | 21.4 | 21.4 |
| 100 | 80 | 25 | 25 | 26 |
| 100 | 100 | 26.8 | 26.8 | 28.3 |
| 150 | 80 | 37.1 | 37.1 | 39.1 |
| 150 | 100 | 39.4 | 39.4 | 41.9 |
| 150 | 150 | 46 | 46 | 49 |
| 200 | 80 | 52.7 | 52.7 | 56.5 |
| 200 | 100 | 55.3 | 54.9 | 59.6 |
| 200 | 150 | 62.8 | 62.4 | 67.6 |
| 200 | 200 | 71.5 | 70.9 | 77.2 |
| 250 | 80 | 72.5 | 71.7 | 79.5 |
| 250 | 100 | 75.4 | 74.6 | 82.9 |
| 250 | 150 | 83.8 | 83 | 91.8 |
| 250 | 200 | 93.7 | 92.7 | 103 |
| 250 | 250 | 104 | 103 | 115 |
| 300 | 80 | 96.3 | 96 | 107 |
| 300 | 100 | 99.6 | 98.8 | 111 |
| 300 | 150 | 109 | 108 | 120 |
| 300 | 200 | 120 | 119 | 132 |
| 300 | 250 | 132 | 131 | 146 |
| 300 | 300 | 145 | 144 | 161 |
| 350 | 100 | 126 | 130 | 147 |
| 350 | 150 | 136 | 140 | 158 |
| 350 | 200 | 146 | 151 | 170 |
| 350 | 250 | 158 | 164 | 184 |
| 350 | 300 | 171 | 178 | 201 |
| 350 | 350 | 186 | 195 | 220 |
| 400 | 100 | 159 | 164 | 187 |
| 400 | 150 | 170 | 175 | 199 |
| 400 | 200 | 182 | 188 | 213 |
| 400 | 250 | 195 | 202 | 228 |
| 400 | 300 | 209 | 217 | 245 |
| 400 | 350 | 225 | 236 | 267 |
| 400 | 400 | 242 | 255 | 288 |
| 450 | 100 | 198 | 202 | 233 |
| 450 | 150 | 210 | 214 | 246 |
| 450 | 200 | 223 | 228 | 262 |
| 450 | 250 | 237 | 244 | 278 |
| 450 | 300 | 244 | 261 | 298 |
| 450 | 350 | 270 | 280 | 319 |
| 450 | 400 | 288 | 300 | 342 |
| 450 | 500 | 307 | 321 | 367 |
| 500 | 100 | 243 | 257 | 281 |
| 500 | 150 | 256 | 271 | 295 |
| 500 | 200 | 269 | 285 | 311 |
| 500 | 250 | 286 | 302 | 330 |
| 500 | 300 | 303 | 321 | 350 |
| 500 | 350 | 321 | 341 | 373 |
| 500 | 400 | 340 | 362 | 397 |
| 500 | 450 | 361 | 384 | 423 |
| 500 | 500 | 383 | 414 | 449 |
| 600 | 100 | 347 | 377 | 406 |
| 600 | 150 | 364 | 394 | 424 |
| 600 | 200 | 381 | 412 | 442 |
| 600 | 250 | 399 | 431 | 463 |
| 600 | 300 | 418 | 451 | 485 |
| 600 | 350 | 439 | 474 | 511 |
| 600 | 400 | 461 | 499 | 539 |
| 600 | 450 | 485 | 524 | 568 |
| 600 | 500 | 511 | 557 | 597 |
| 600 | 600 | 567 | 625 | 667 |
| 700 | 700 | 950 | — | — |
| 800 | 800 | 1769 | — | — |
| 900 | 900 | 1795 | — | — |
| 1000 | 1000 | 2310 | — | — |
| 1200 | 1200 | 3015 | — | — |
66 reference rows transcribed from both archived source weight-chart images (16891527819023.jpg and 16891527819466.jpg). The DN700–1200 single-size entries contain a PN10 figure only; unprinted PN16/PN25 cells are dashes, not zero. These are source-listed nominal values, not independently certified or guaranteed order weights. Confirm sizes, joint geometry, standard edition and weights against approved drawings before buying.
Manufacturing process overview
Email / Request a Quote
All-Socket 45° Wye Tee
Send size, pressure class, quantities and port.
Email: samson@aurorvix.com
