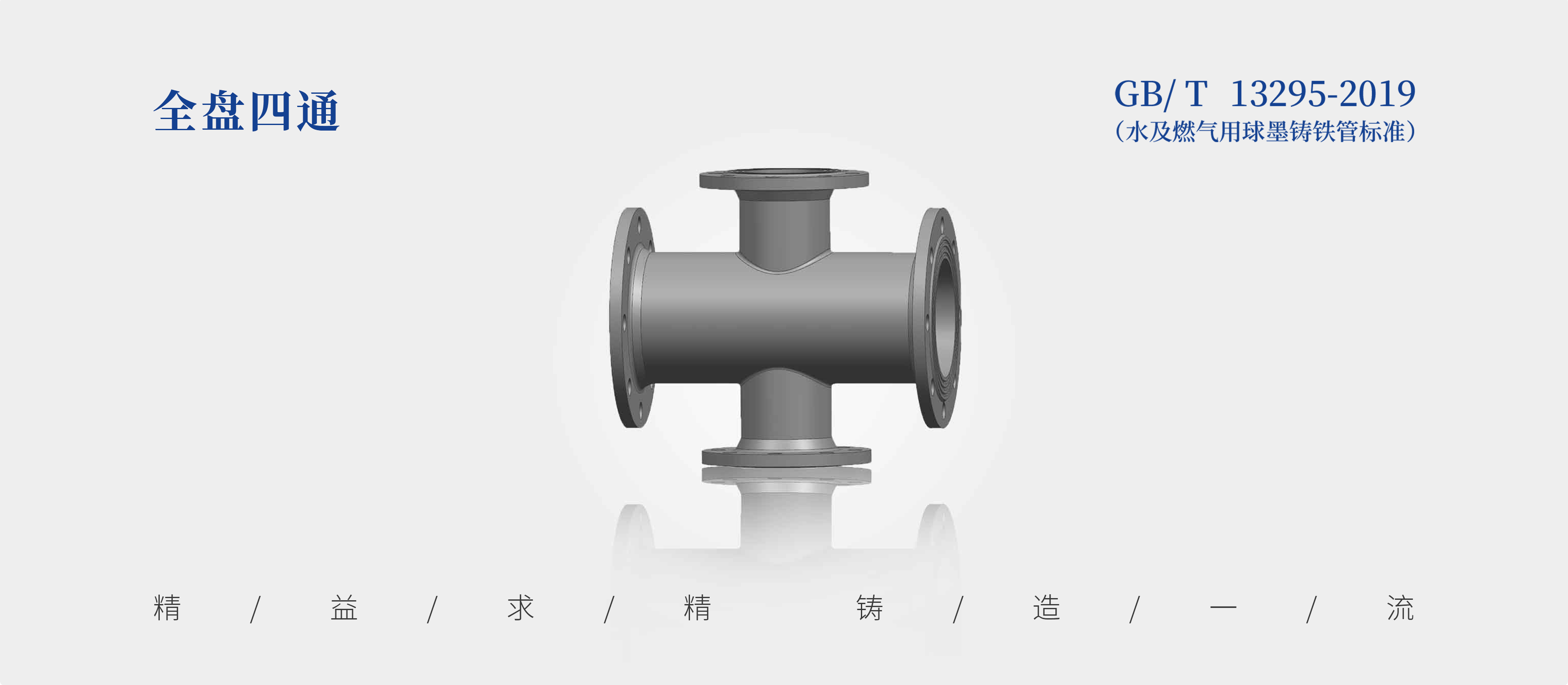

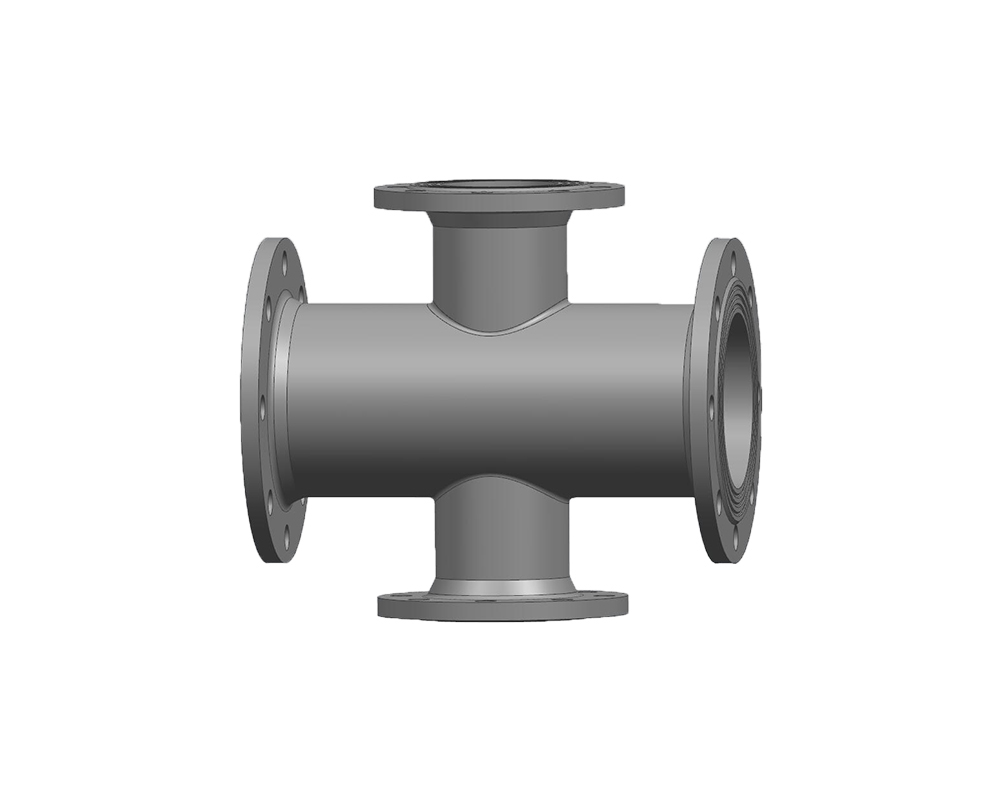

All-Flanged Cross
Multi-photo catalogue · Technical reference · Export quotation
Product enquiry
Supply coordination by Aurorvix. Specify DN, PN, connection, dimensions, quantity and delivery port. Technical figures and connection type require order-specific confirmation.
01 · Parameters
Technical Parameters
| Product | Ductile cast-iron fitting |
|---|---|
| Model / type | All-Flanged Cross |
| Reference standard on source page | GB/T 13295-2019 |
| Internal protection | Cement mortar |
| External protection | Zinc spray |
| Connection | Original source lists socket-type even though the product title specifies flanged ends; confirm the actual flanged interface from approved drawings. |
| Applications | Municipal pipeline and water infrastructure; project suitability to be confirmed |
02 · Details
Technical drawings and weight references
Nominal mass data transcribed from all 3 archived technical chart figures. Confirm pressure class and dimensions when placing an order.
| Size group (source) | Branch size (source) | PN10 nominal mass (kg) | PN16 nominal mass (kg) | PN25 nominal mass (kg) |
|---|---|---|---|---|
| 80 | 80 | 20.1 | 20.1 | 20.1 |
| 100 | 80 | 23 | 23 | 24.2 |
| 100 | 100 | 25 | 25 | 27.2 |
| 150 | 80 | 33.1 | 33.1 | 36.1 |
| 150 | 100 | 35.1 | 35.1 | 38.1 |
| 150 | 150 | 41.1 | 41.1 | 46.1 |
| 200 | 80 | 46.5 | 46 | 50.7 |
| 200 | 100 | 48.5 | 47.9 | 53.7 |
| 200 | 150 | 54.5 | 54.1 | 60.7 |
| 200 | 200 | 61.5 | 61.9 | 70.7 |
| 250 | 80 | 73.5 | 69.7 | 77 |
| 250 | 100 | 74.1 | 72 | 81 |
| 250 | 150 | 82.1 | 79 | 88.2 |
| 250 | 200 | 90.1 | 88.3 | 99.2 |
| 250 | 250 | 102 | 101 | 117 |
| 300 | 80 | 95.9 | 95.3 | 105.7 |
| 300 | 100 | 100 | 97.3 | 108.8 |
| 300 | 150 | 108 | 104.3 | 116.6 |
| 300 | 200 | 116 | 113.3 | 127.3 |
| 300 | 250 | 130 | 125.4 | 143.1 |
| 300 | 300 | 144 | 141.6 | 162.4 |
| 350 | 80 | 118.3 | 123.9 | 139.7 |
| 350 | 100 | 122 | 125.5 | 142.4 |
| 350 | 150 | 128 | 130.7 | 148.4 |
| 350 | 200 | 132 | 136.4 | 155.8 |
| 350 | 250 | 146 | 143.4 | 166.6 |
| 350 | 300 | 154 | 168.2 | 194.4 |
| 350 | 350 | 174 | 184.6 | 216.2 |
| 400 | 80 | 145.4 | 158.4 | 176.8 |
| 400 | 100 | 149 | 160 | 179.4 |
| 400 | 150 | 151 | 165 | 185.3 |
| 400 | 200 | 159 | 170.4 | 192.4 |
| 400 | 250 | 160 | 177.5 | 202.9 |
| 400 | 300 | 182 | 201.3 | 230.1 |
| 400 | 350 | 202 | 216.9 | 251.1 |
| 400 | 400 | 211 | 237.1 | 273.9 |
| 450 | 80 | 174.1 | 192.7 | 213.5 |
| 450 | 100 | 186 | 194.3 | 216.1 |
| 450 | 150 | 198 | 199.2 | 221.9 |
| 450 | 200 | 213 | 204.4 | 228.8 |
| 450 | 250 | 231 | 210.8 | 238.9 |
| 450 | 300 | 253 | 234.5 | 265.7 |
| 450 | 350 | 272 | 249.5 | 286.1 |
| 450 | 400 | 296 | 268.7 | 307.9 |
| 450 | 450 | 320 | 485.9 | 327.5 |
| 500 | 80 | 211.8 | 240.6 | 261.4 |
| 500 | 100 | 215 | 242.2 | 264 |
| 500 | 150 | 223 | 246.9 | 269.6 |
| 500 | 200 | 225 | 251.9 | 276.3 |
| 500 | 250 | 231 | 258 | 286.1 |
| 500 | 300 | 249 | 261.3 | 312.5 |
| 500 | 350 | 273 | 295.7 | 332.3 |
| 500 | 400 | 279 | 314.1 | 353.3 |
| 500 | 450 | 293 | 330.2 | 371.8 |
| 500 | 500 | 299 | 357.7 | 339.3 |
| 600 | 80 | 300.3 | 350.3 | 375.1 |
| 600 | 100 | 242 | 351.8 | 377.6 |
| 600 | 150 | 272 | 356.2 | 382.9 |
| 600 | 200 | 316 | 360.8 | 389.2 |
| 600 | 250 | 321 | 366.4 | 398.5 |
| 600 | 300 | 330 | 389 | 424.2 |
| 600 | 350 | 358 | 402.4 | 443 |
| 600 | 400 | 364 | 419.7 | 462.9 |
| 600 | 450 | 382 | 434.1 | 479.7 |
| 600 | 500 | 403 | 459.3 | 504.9 |
| 600 | 600 | 416 | 521 | 579 |
| 700 | 80 | 232.5 | 261.3 | 327.7 |
| 700 | 100 | 239.6 | 268.4 | 335.8 |
| 700 | 150 | 259.9 | 288.6 | 357.2 |
| 700 | 200 | 280.2 | 308.6 | 379.6 |
| 700 | 250 | 302.6 | 330.7 | 405.4 |
| 700 | 300 | 326.7 | 354.7 | 433 |
| 700 | 350 | 348.1 | 382.6 | 467 |
| 700 | 400 | 371.3 | 410.5 | 501 |
| 700 | 450 | 393.5 | 441.4 | 532.5 |
| 700 | 500 | 423.7 | 481.8 | 574.5 |
| 700 | 600 | 489.1 | 568.9 | 667.5 |
| 700 | 700 | 568.4 | 625.9 | 768.4 |
| 800 | 100 | 317.6 | 353.3 | 448.2 |
| 800 | 150 | 341.4 | 377.1 | 473.2 |
| 800 | 200 | 365.2 | 400.5 | 499.1 |
| 800 | 250 | 391 | 426 | 528.2 |
| 800 | 300 | 418.3 | 453.2 | 559.2 |
| 800 | 350 | 442.9 | 484.3 | 596.3 |
| 800 | 400 | 469.2 | 515 | 633.4 |
| 800 | 450 | 494.2 | 549 | 667.7 |
| 800 | 500 | 527.1 | 592.1 | 712.3 |
| 800 | 600 | 671.4 | 758.2 | 884.3 |
| 800 | 700 | 715.8 | 780.3 | 950.4 |
| 800 | 800 | 780.4 | 851.8 | 1053.2 |
| 900 | 100 | 393.9 | 438 | 553.4 |
| 900 | 150 | 421.2 | 465.3 | 581.9 |
| 900 | 200 | 449.2 | 492.9 | 611.9 |
| 900 | 250 | 478.7 | 522.2 | 644.8 |
| 900 | 300 | 509.7 | 553.1 | 679.4 |
| 900 | 350 | 537.8 | 587.7 | 720.1 |
| 900 | 400 | 567.5 | 622.1 | 760.6 |
| 900 | 450 | 596 | 659.2 | 798.2 |
| 900 | 500 | 632 | 705.4 | 846 |
| 900 | 600 | 842.8 | 938 | 1084.5 |
| 900 | 700 | 883.8 | 956.7 | 1147.2 |
| 900 | 800 | 942.6 | 1022.4 | 1244.2 |
| 900 | 900 | 1004.7 | 1093 | 1340.5 |
All 3 archived specification chart images have been transcribed into the English table for the ranges printed. Counter-intuitive values (e.g. PN16 at 450/450) are retained exactly as printed; confirm against approved drawing before ordering. Values are for enquiry reference, not certified dispatch mass.
Manufacturing process overview
Moulding and castingSource-described sand preparation, moulding and pouring
FinishingMachining, surface treatment and corrosion protection
InspectionDimensions and testing subject to project specification
