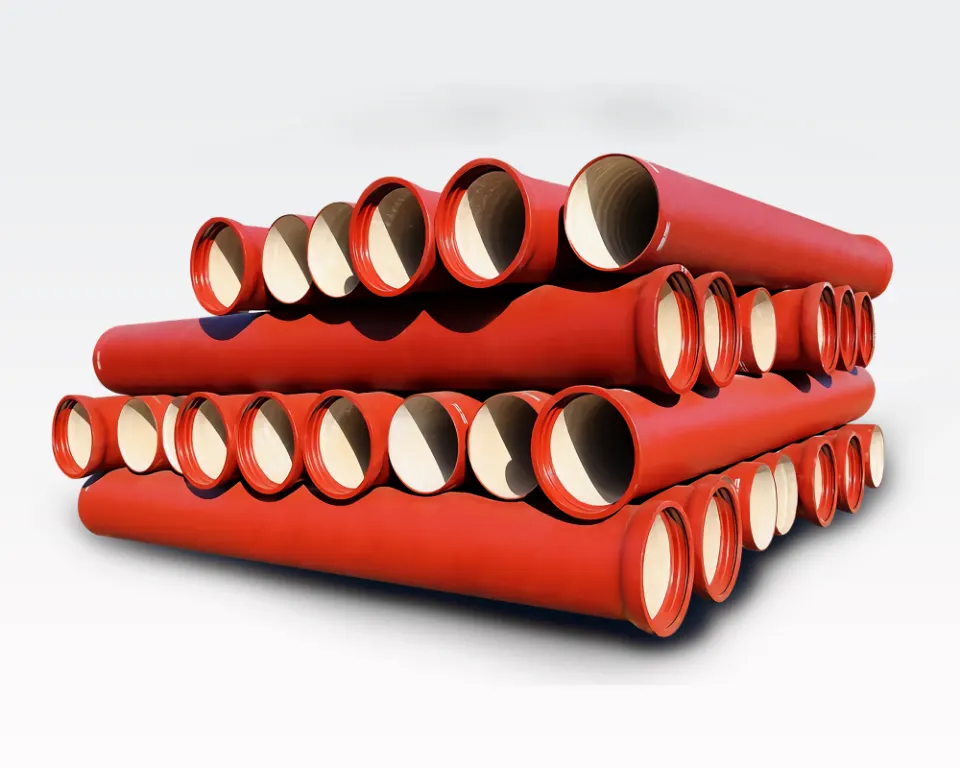

Ductile Iron Pipe for Drainage Projects
Drainage applications · DN and reference mass selection
Check the specifications before ordering
Ductile iron pipe options for drainage and sewerage projects. Review the diameter-by-class reference from the archived product image, then provide wastewater conditions, lining needs, joint type and required project standard for a tailored quotation.
Trade and order coordination by Aurorvix; product configuration and supporting documents are confirmed with the quotation.
Technical parameters
The items below reflect only the individual archived source page or its named product; unstated settings have not been assumed from another product.
| Product category | Ductile iron pipe for drainage applications |
|---|---|
| Intended use | Drainage / sewerage projects |
| Source page text parameters | Only the original brand field was supplied; exact lining, coating, joint and standard were not stated there |
| Required for quotation | DN, class, operating conditions, lining, coating, joint, quantity and delivery port |
The source chart refers to GB/T 26081-2022. Product-specific compliance must be confirmed with current documentation for the order.
Drainage pipe nominal diameter, class and mass
The original Chinese product-chart figure has been recreated below as an English, selectable table. The values are reference data for enquiry and must be confirmed for the actual order.
| Nominal diameter DN (mm) | Class on source chart | Nominal mass (kg) |
|---|---|---|
| 80 | — | — |
| 100 | C40 | 71 |
| 150 | C40 | 106 |
| 200 | C40 | 146 |
| 250 | C30 | 189 |
| 300 | C30 | 236 |
| 350 | C30 | 335 |
| 400 | C30 | 394 |
| 450 | C25 | 441 |
| 500 | C25 | 497 |
| 600 | C25 | 693 |
| 700 | C25 | 933 |
| 800 | C25 | 1165 |
| 900 | C25 | 1447 |
| 1000 | C25 | 1759 |
| 1100 | C25 | 2103 |
| 1200 | C25 | 2481 |
| 1400 | C25 | 3403 |
| 1500 | C25 | 3911 |
| 1600 | C25 | 4408 |
| 1800 | C25 | 5559 |
| 2000 | C25 | 6854 |
| 2200 | — | — |
| 2400 | — | — |
| 2600 | — | — |
The archived drainage-product figure provides these class/mass references. A dash means no figure was supplied for that DN; confirm size availability, fluid suitability, coatings and document requirements at quotation.
Production and inspection information
The archived product-detail images also describe a general process and quality checks. The text below is an English summary of those diagrams; it is not a certificate or a test report for an individual shipment.
