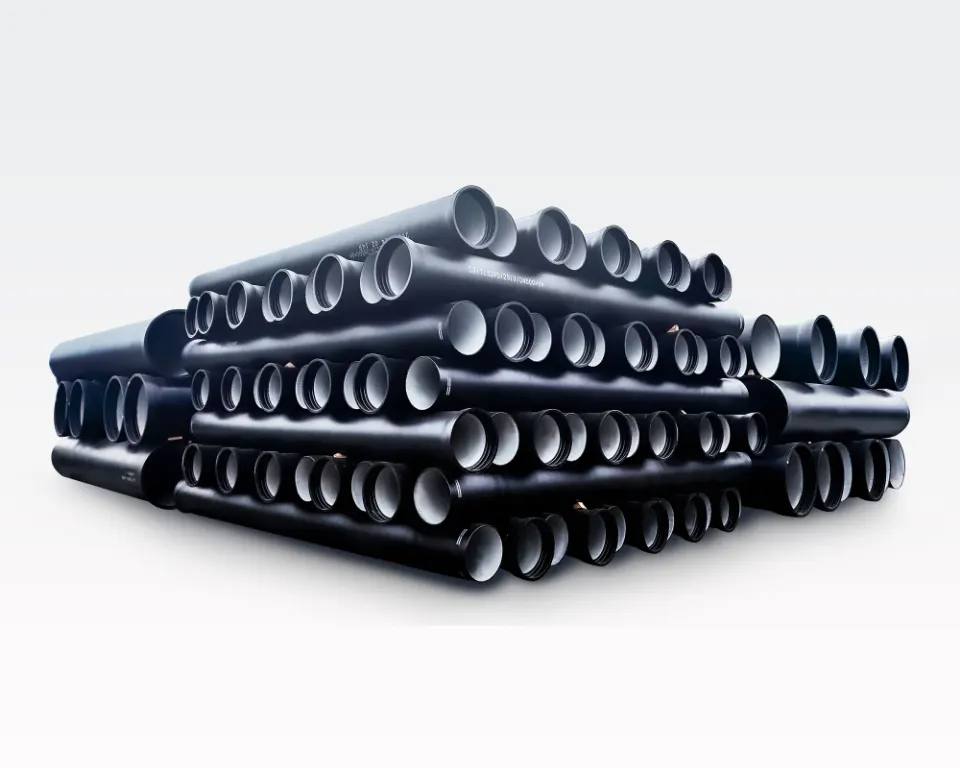

C-Class Ductile Iron Pipe

Name: C-Class Ductile Iron Pipe
Brand: Aurorvix

C40 / C30 / C25 references by DN · Project quotation

7 product photosEnglish DN dataExport quotations

Select a thumbnail to browse product photos; tap the large image to zoom.

Product selection

Check the specifications before ordering

C-class ductile iron pipe selections differ across nominal diameters. The source chart assigns a C40, C30 or C25 designation by DN; buyers should confirm the required rating, lining, coating, joint type and the applicable standard edition for their project.

Request a Quote Email Aurorvix

Trade and order coordination by Aurorvix; product configuration and supporting documents are confirmed with the quotation.

01 · Parameters

Technical parameters

The items below reflect only the individual archived source page or its named product; unstated settings have not been assumed from another product.

Product category	Ductile iron pipe
Designation	C-Class; source chart lists C40, C30 and C25 by DN
Source page text parameters	Only the original brand field was supplied; other configuration fields were not specified
Required for quotation	DN, required pressure class, standard, lining, coating, joint, quantity and destination

The chart refers to GB/T 13295-2019 and GB/T 26081-2022. These are source references, not a verified compliance statement for every quoted item.

02 · Product Details

C-class pressure designation and nominal mass

The original Chinese product-chart figure has been recreated below as an English, selectable table. The values are reference data for enquiry and must be confirmed for the actual order.

Nominal diameter DN (mm)	Class on source chart	Nominal mass (kg)
80	—	—
100	C40	71
150	C40	106
200	C40	146
250	C40	210
300	C40	282
350	C30	335
400	C30	394
450	C30	473
500	C30	566
600	C30	784
700	C25	933
800	C25	1165
900	C25	1447
1000	C25	1759
1100	C25	2103
1200	C25	2481
1400	C25	3403
1500	C25	3911
1600	C25	4408
1800	C25	5559
2000	C25	6854
2200	—	—
2400	—	—
2600	—	—

Entries copied from the archived C-class product-chart image. A dash means the source chart did not state a class or mass; it does not prove the size is unavailable. Source page text does not specify lining, coating or joint configuration.

Production and inspection information

The archived product-detail images also describe a general process and quality checks. The text below is an English summary of those diagrams; it is not a certificate or a test report for an individual shipment.

01 · Material & formingSource-described production stages include melt preparation, nodularisation and centrifugal casting.

02 · Heat treatment & finishingAnnealing, socket/spigot gauging, surface finishing and protective coatings are described in the product material.

03 · Inspection checkpointsSource images describe chemistry, mechanical-property, dimensional, hydrostatic and coating-thickness checks. Order-specific records require confirmation.
