W1 Short-Radius Elbow
W1 drainage fitting · source-based English dimensions
One original product photograph is available. The technical chart is recreated below in English.
W1 Short-Radius Elbow
The source product figure supplies DN-based reference dimensions. The table below reproduces those data without inventing omitted values.
Aurorvix coordinates export enquiries; specifications and documentation are confirmed for the actual ordered item.
Product parameters
English translation of source webpage claims. Not independently certified for a specific shipment.
| Product family | W1-type cast iron drainage fitting |
|---|---|
| Reference standard (as printed) | GB/T 12772-2016 W1 |
| Internal corrosion protection | Highly chlorinated polyethylene (HCPE), source description |
| External corrosion protection | Highly chlorinated polyethylene (HCPE), source description |
| Joint / connection | Stainless-steel clamp / no-hub connection, source description |
| Shipping | Road, rail or sea, subject to quotation |
| Configuration | Confirm size, tolerances and connection with approved order drawing |

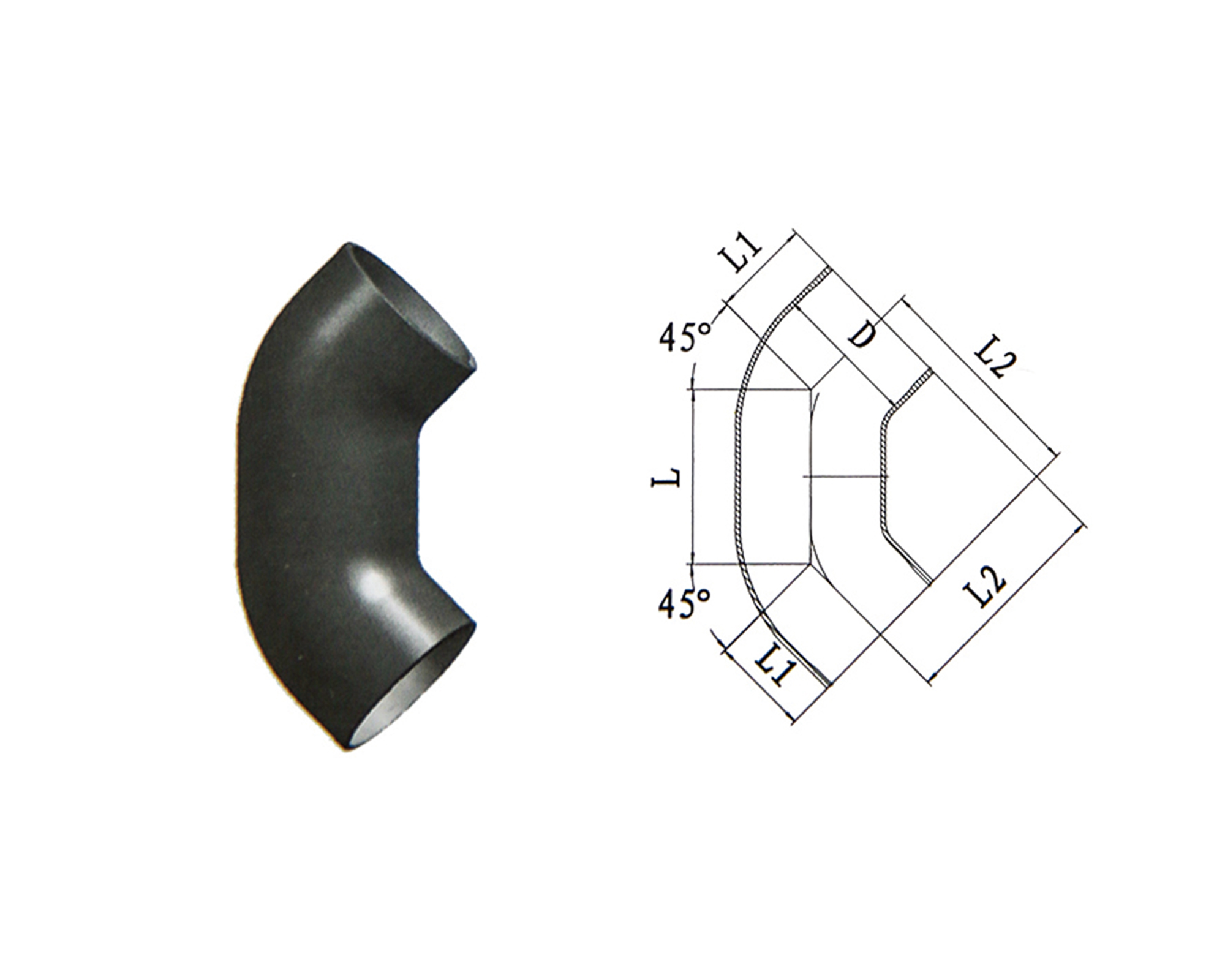

W1 fitting dimensions
Reference values manually transcribed from this product's archived technical figure, not copied from adjacent products.
| DN (mm) | L (mm) | L1 (mm) |
|---|---|---|
| 50 | 34 | 29 |
| 75 | 38 | 29 |
| 100 | 52 | 29 |
| 150 | 54 | 38 |
Short-radius dimensions are the source L and L1 references; no bend radius value was stated. Values and compliance must be confirmed with current approved engineering drawings.
Confirm before ordering
Get pricing for your project
W1 Short-Radius Elbow
Send DN, quantity, destination and drawing requirements.
Email: samson@aurorvix.com
