W1 P-Trap
W1 drainage fitting · source-based English dimensions

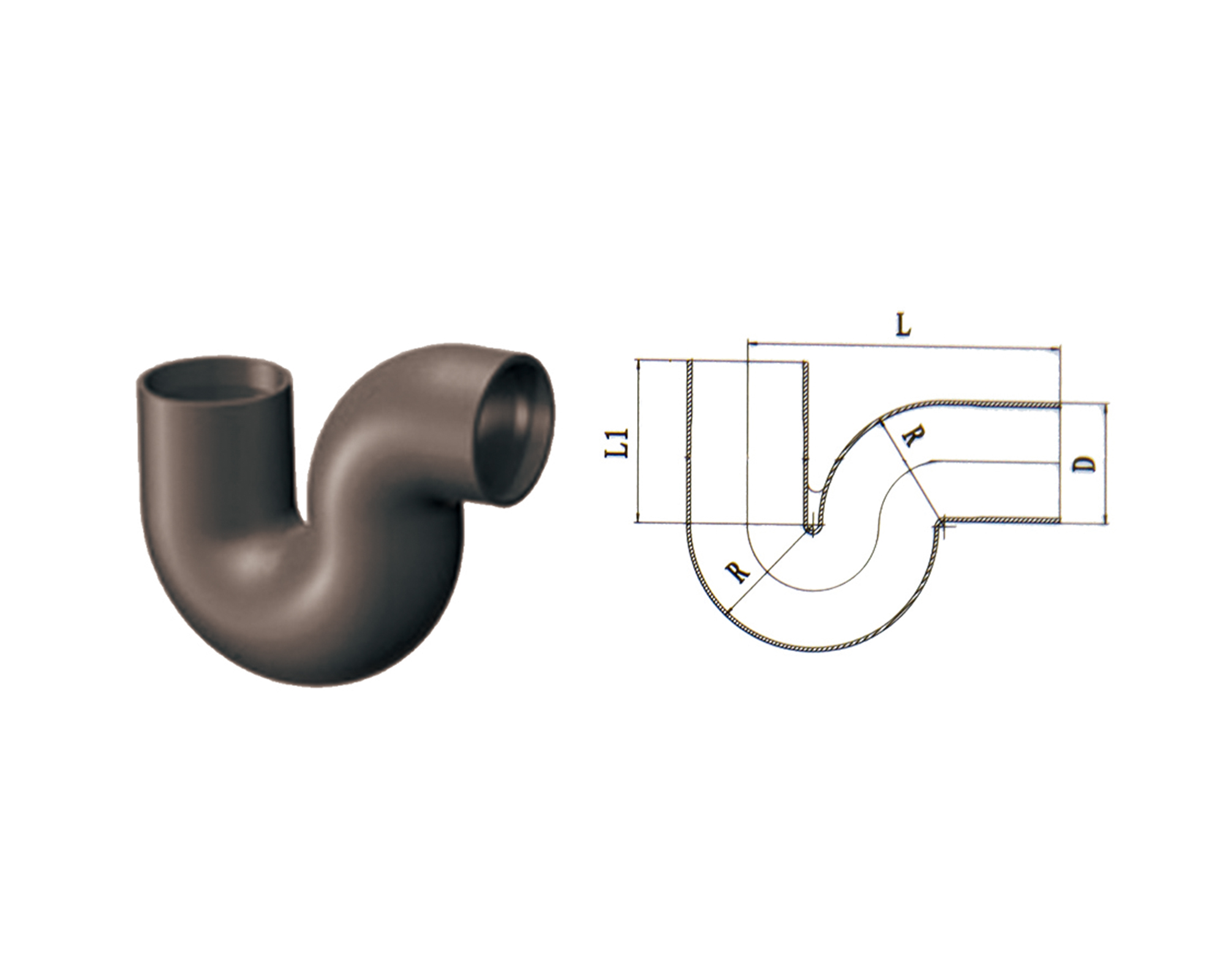

One original product photograph is available. The technical chart is recreated below in English.
W1 P-Trap
The source product figure supplies DN-based reference dimensions. The table below reproduces those data without inventing omitted values.
Aurorvix coordinates export enquiries; specifications and documentation are confirmed for the actual ordered item.
Product parameters
English translation of source webpage claims. Not independently certified for a specific shipment.
| Product family | W1-type cast iron drainage fitting |
|---|---|
| Reference standard (as printed) | GB/T 12772-2016 W1 |
| Internal corrosion protection | Highly chlorinated polyethylene (HCPE), source description |
| External corrosion protection | Highly chlorinated polyethylene (HCPE), source description |
| Joint / connection | Stainless-steel clamp / no-hub connection, source description |
| Shipping | Road, rail or sea, subject to quotation |
| Configuration | Confirm size, tolerances and connection with approved order drawing |
W1 fitting dimensions
Reference values manually transcribed from this product's archived technical figure, not copied from adjacent products.
| DN (mm) | L (mm) | L1 (mm) | R (mm) |
|---|---|---|---|
| 50 | 134 | 60 | 35 |
| 75 | 178 | 69 | 50 |
| 100 | 216 | 58 | 63 |
| 150 | 356 | 152 | 102 |
The source shows L=216 for DN100; do not replace with L=217 from the different P-type access bend. Values and compliance must be confirmed with current approved engineering drawings.
