W1 h-Pipe
W1 drainage fitting · source-based English dimensions
One original product photograph is available. The technical chart is recreated below in English.
W1 h-Pipe
The source product figure supplies DN-based reference dimensions. The table below reproduces those data without inventing omitted values.
Aurorvix coordinates export enquiries; specifications and documentation are confirmed for the actual ordered item.
Product parameters
English translation of source webpage claims. Not independently certified for a specific shipment.
| Product family | W1-type cast iron drainage fitting |
|---|---|
| Reference standard (as printed) | GB/T 12772-2016 W1 |
| Internal corrosion protection | Highly chlorinated polyethylene (HCPE), source description |
| External corrosion protection | Highly chlorinated polyethylene (HCPE), source description |
| Joint / connection | Stainless-steel clamp / no-hub connection, source description |
| Shipping | Road, rail or sea, subject to quotation |
| Configuration | Confirm size, tolerances and connection with approved order drawing |

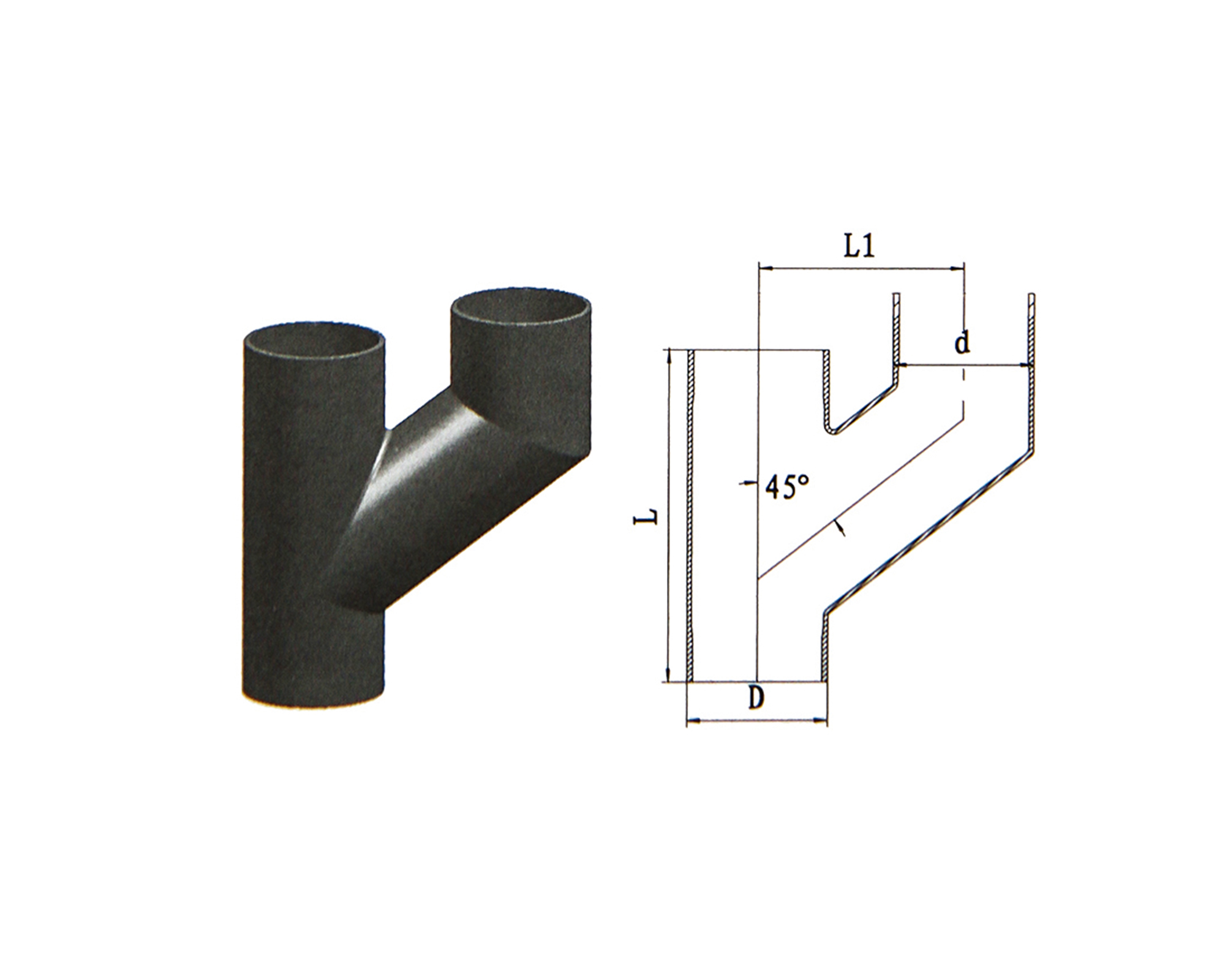

W1 fitting dimensions
Reference values manually transcribed from this product's archived technical figure, not copied from adjacent products.
| Primary nominal size (source, mm) | Secondary nominal size (source, mm) | L (mm) | L1 (mm) |
|---|---|---|---|
| 100 | 100 | 236 | 180 |
| 150 | 100 | 240 | 241 |
| 150 | 150 | 305 | 241 |
Original uses two values in a combined nominal diameter heading. Their joint orientation is not defined there. This lowercase h-Pipe is separate from W1 H-Pipe. Values and compliance must be confirmed with current approved engineering drawings.
