W1 Y-Type Tee
W1 drainage fitting · source-based English dimensions

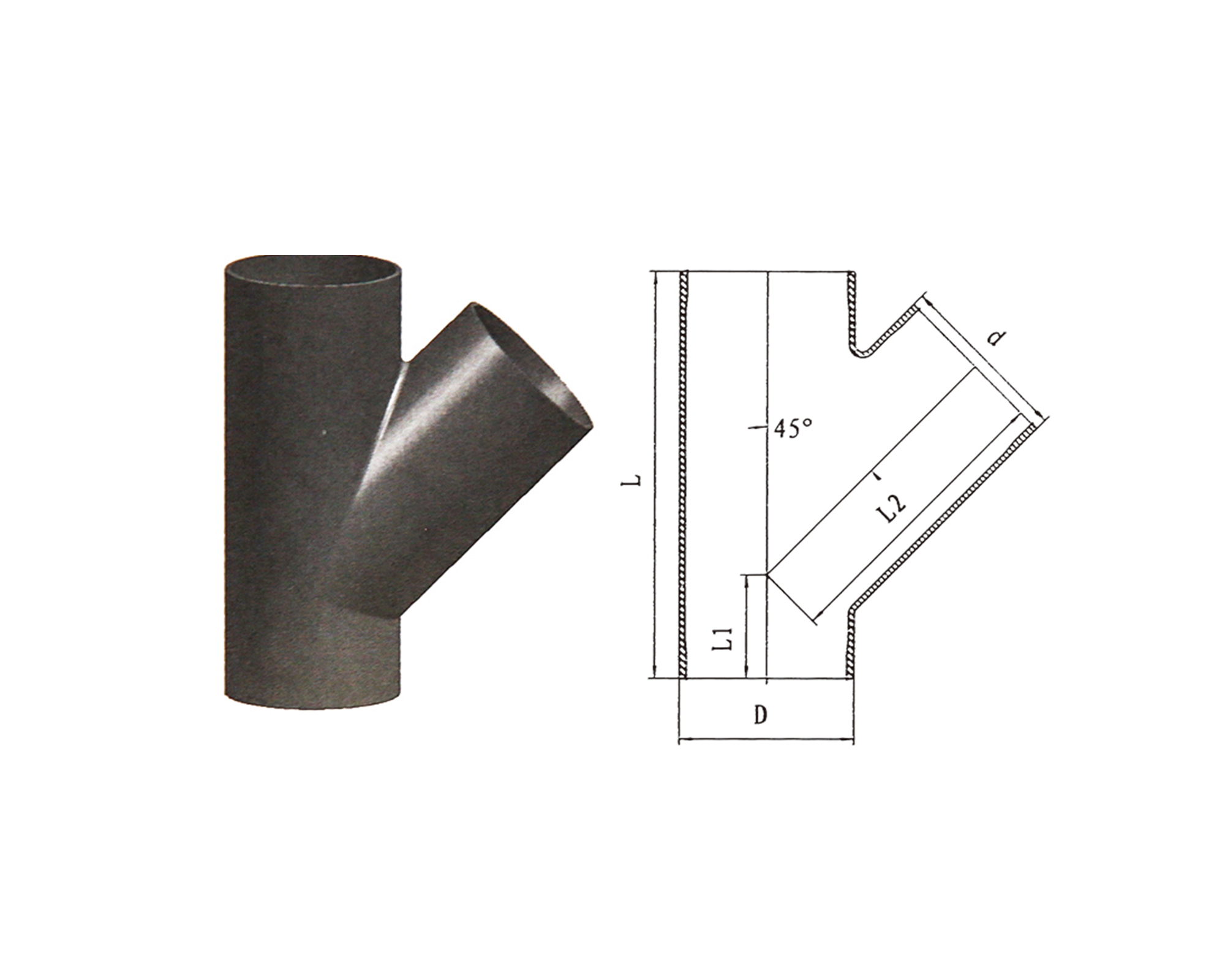

One original product photograph is available. The technical chart is recreated below in English.
W1 Y-Type Tee
The source product figure supplies DN-based reference dimensions. The table below reproduces those data without inventing omitted values.
Aurorvix coordinates export enquiries; specifications and documentation are confirmed for the actual ordered item.
Product parameters
English translation of source webpage claims. Not independently certified for a specific shipment.
| Product family | W1-type cast iron drainage fitting |
|---|---|
| Reference standard (as printed) | GB/T 12772-2016 W1 |
| Internal corrosion protection | Highly chlorinated polyethylene (HCPE), source description |
| External corrosion protection | Highly chlorinated polyethylene (HCPE), source description |
| Joint / connection | Stainless-steel clamp / no-hub connection, source description |
| Shipping | Road, rail or sea, subject to quotation |
| Configuration | Confirm size, tolerances and connection with approved order drawing |
W1 fitting dimensions
Reference values manually transcribed from this product's archived technical figure, not copied from adjacent products.
| Primary DN (mm) | Secondary DN (mm) | L (mm) | L1 (mm) | L2 (mm) |
|---|---|---|---|---|
| 50 | 50 | 153 | 43 | 110 |
| 75 | 50 | 153 | 30 | 128 |
| 75 | 75 | 188 | 48 | 140 |
| 100 | 50 | 153 | 18 | 147 |
| 100 | 75 | 189 | 35 | 159 |
| 100 | 100 | 224 | 53 | 171 |
| 150 | 50 | 180 | 5 | 186 |
| 150 | 75 | 206 | 19 | 194 |
| 150 | 100 | 242 | 37 | 207 |
| 150 | 150 | 328 | 83 | 247 |
| 200 | 100 | 285 | 29 | 250 |
| 200 | 150 | 355 | 63 | 290 |
| 200 | 200 | 430 | 101 | 330 |
The DN150/50 row has L1=5 and L2=186 as printed; these values require dimension-drawing confirmation rather than silent adjustment. Values and compliance must be confirmed with current approved engineering drawings.
