W1 Y-Type Cross
W1 drainage fitting · source-based English dimensions

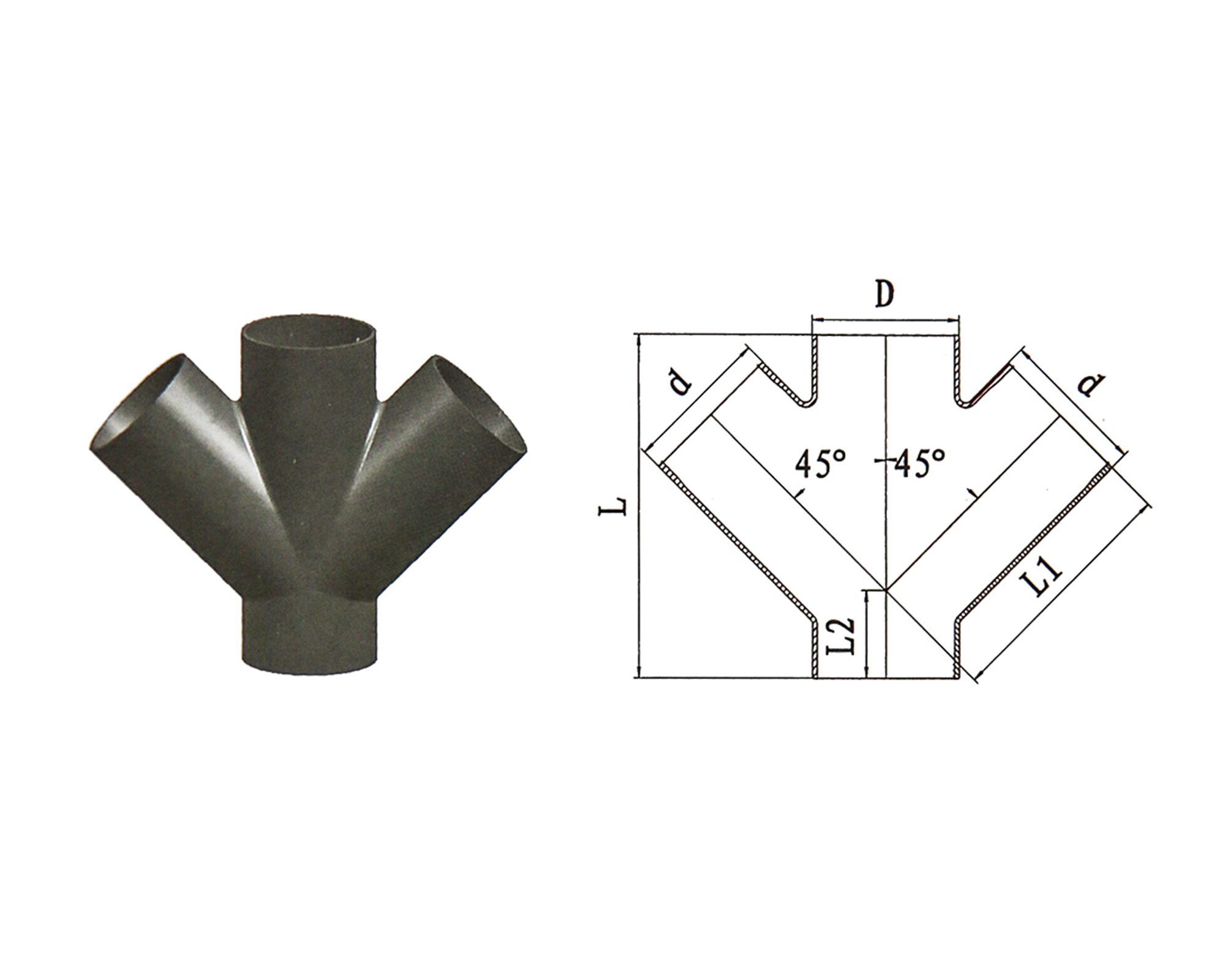

One original product photograph is available. The technical chart is recreated below in English.
W1 Y-Type Cross
The source product figure supplies DN-based reference dimensions. The table below reproduces those data without inventing omitted values.
Aurorvix coordinates export enquiries; specifications and documentation are confirmed for the actual ordered item.
Product parameters
English translation of source webpage claims. Not independently certified for a specific shipment.
| Product family | W1-type cast iron drainage fitting |
|---|---|
| Reference standard (as printed) | GB/T 12772-2016 W1 |
| Internal corrosion protection | Highly chlorinated polyethylene (HCPE), source description |
| External corrosion protection | Highly chlorinated polyethylene (HCPE), source description |
| Joint / connection | Stainless-steel clamp / no-hub connection, source description |
| Shipping | Road, rail or sea, subject to quotation |
| Configuration | Confirm size, tolerances and connection with approved order drawing |
W1 fitting dimensions
Reference values manually transcribed from this product's archived technical figure, not copied from adjacent products.
| Primary DN (mm) | Secondary DN (mm) | L (mm) | L1 (mm) | L2 (mm) |
|---|---|---|---|---|
| 50 | 50 | 160 | 115 | 45 |
| 75 | 50 | 175 | 135 | 40 |
| 75 | 75 | 210 | 150 | 55 |
| 100 | 50 | 185 | 150 | 35 |
| 100 | 75 | 215 | 165 | 45 |
| 100 | 100 | 235 | 175 | 55 |
| 150 | 100 | 275 | 220 | 50 |
| 150 | 150 | 350 | 260 | 85 |
| 200 | 200 | 430 | 330 | 101 |
The source lists two nominal-diameter columns; verify the number and orientation of branch connections on the approved drawing. Values and compliance must be confirmed with current approved engineering drawings.
