W1 TY-Type Cross
W1 drainage fitting · source-based English dimensions

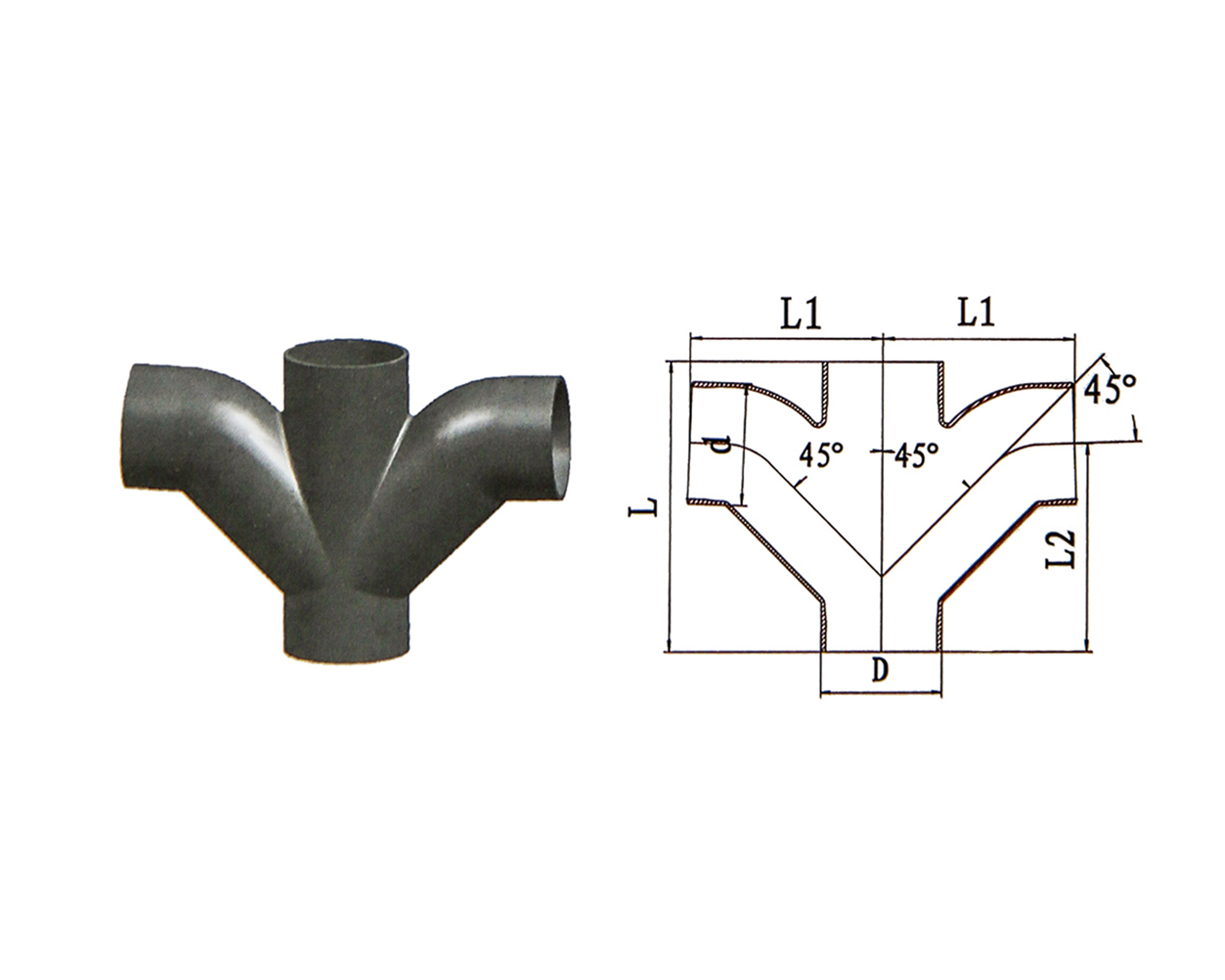

One original product photograph is available. The technical chart is recreated below in English.
W1 TY-Type Cross
The source product figure supplies DN-based reference dimensions. The table below reproduces those data without inventing omitted values.
Aurorvix coordinates export enquiries; specifications and documentation are confirmed for the actual ordered item.
Product parameters
English translation of source webpage claims. Not independently certified for a specific shipment.
| Product family | W1-type cast iron drainage fitting |
|---|---|
| Reference standard (as printed) | GB/T 12772-2016 W1 |
| Internal corrosion protection | Highly chlorinated polyethylene (HCPE), source description |
| External corrosion protection | Highly chlorinated polyethylene (HCPE), source description |
| Joint / connection | Stainless-steel clamp / no-hub connection, source description |
| Shipping | Road, rail or sea, subject to quotation |
| Configuration | Confirm size, tolerances and connection with approved order drawing |
W1 fitting dimensions
Reference values manually transcribed from this product's archived technical figure, not copied from adjacent products.
| Primary DN (mm) | Secondary DN (mm) | L (mm) | L1 (mm) | L2 (mm) |
|---|---|---|---|---|
| 50 | 50 | 160 | 112 | 107 |
| 75 | 50 | 163 | 140 | 124 |
| 75 | 75 | 198 | 142 | 139 |
| 100 | 50 | 149 | 123 | 98 |
| 100 | 75 | 179 | 129 | 114 |
| 100 | 100 | 216 | 150 | 145 |
| 150 | 100 | 230 | 168 | 147 |
| 150 | 150 | 298 | 197 | 192 |
As printed in the original TY-type cross table. Some dimensional totals are not additive; keep the independent source columns. Values and compliance must be confirmed with current approved engineering drawings.
