W1 T-Type Tee
W1 drainage fitting · source-based English dimensions

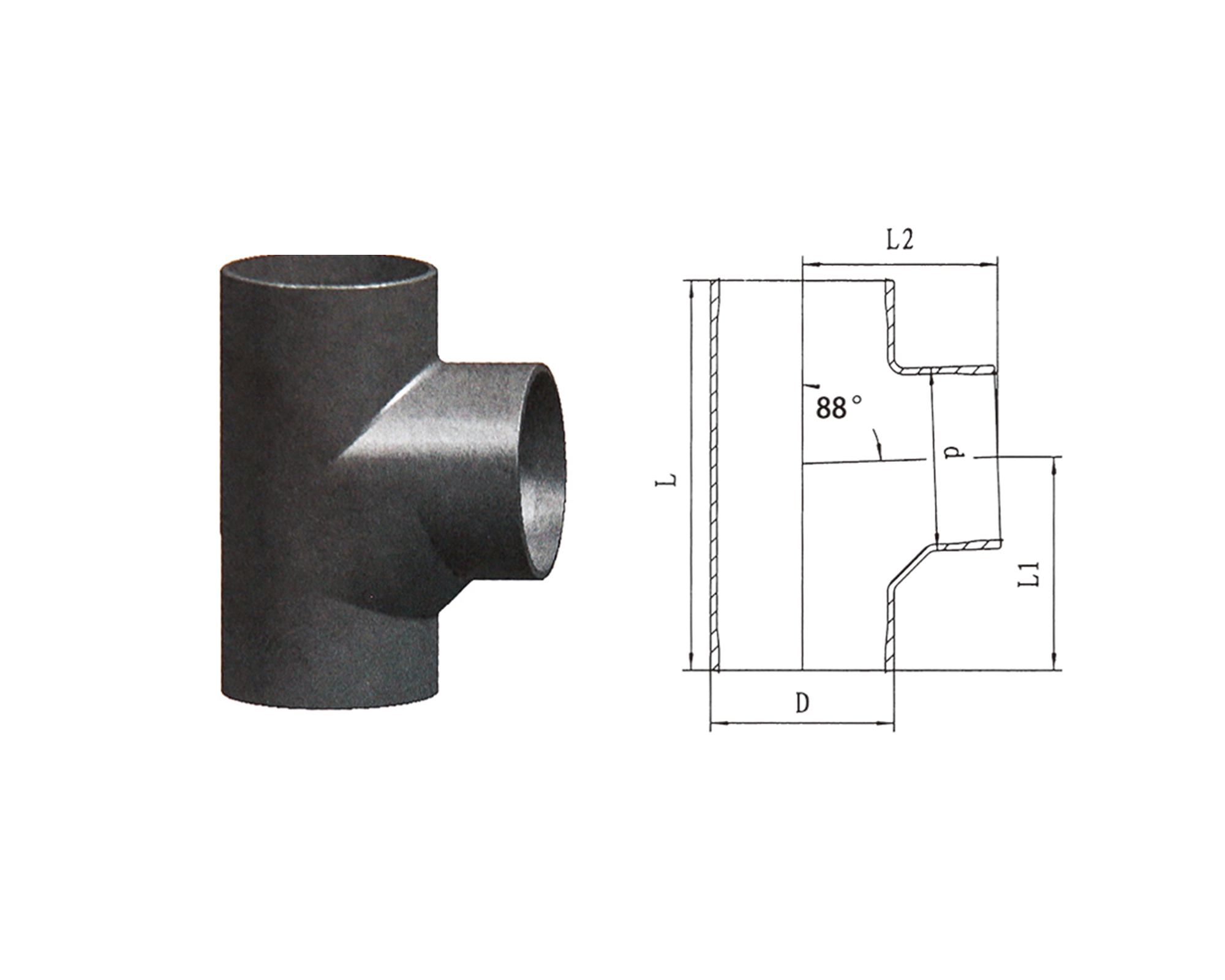

One original product photograph is available. The technical chart is recreated below in English.
W1 T-Type Tee
The source product figure supplies DN-based reference dimensions. The table below reproduces those data without inventing omitted values.
Aurorvix coordinates export enquiries; specifications and documentation are confirmed for the actual ordered item.
Product parameters
English translation of source webpage claims. Not independently certified for a specific shipment.
| Product family | W1-type cast iron drainage fitting |
|---|---|
| Reference standard (as printed) | GB/T 12772-2016 W1 |
| Internal corrosion protection | Highly chlorinated polyethylene (HCPE), source description |
| External corrosion protection | Highly chlorinated polyethylene (HCPE), source description |
| Joint / connection | Stainless-steel clamp / no-hub connection, source description |
| Shipping | Road, rail or sea, subject to quotation |
| Configuration | Confirm size, tolerances and connection with approved order drawing |
W1 fitting dimensions
Reference values manually transcribed from this product's archived technical figure, not copied from adjacent products.
| Primary DN (mm) | Secondary DN (mm) | L (mm) | L1 (mm) | L2 (mm) |
|---|---|---|---|---|
| 50 | 50 | 131 | 69 | 69 |
| 75 | 50 | 131 | 69 | 81 |
| 75 | 75 | 158 | 84 | 84 |
| 100 | 50 | 139 | 78 | 99 |
| 100 | 75 | 160 | 86 | 99 |
| 100 | 100 | 191 | 104 | 104 |
| 150 | 50 | 177 | 101 | 124 |
| 150 | 75 | 179 | 96 | 124 |
| 150 | 100 | 219 | 123 | 139 |
| 150 | 150 | 268 | 148 | 148 |
| 200 | 100 | 242 | 136 | 164 |
| 200 | 150 | 315 | 165 | 175 |
| 200 | 200 | 355 | 180 | 180 |
Original W1 T-type tee dimensions preserve the two DN columns. Confirm branches, L and L1/L2 measuring points with drawing. Values and compliance must be confirmed with current approved engineering drawings.
Confirm before ordering
Get pricing for your project
W1 T-Type Tee
Send DN, quantity, destination and drawing requirements.
Email: samson@aurorvix.com
