W1 Spatial Cross
W1 drainage fitting · source-based English dimensions

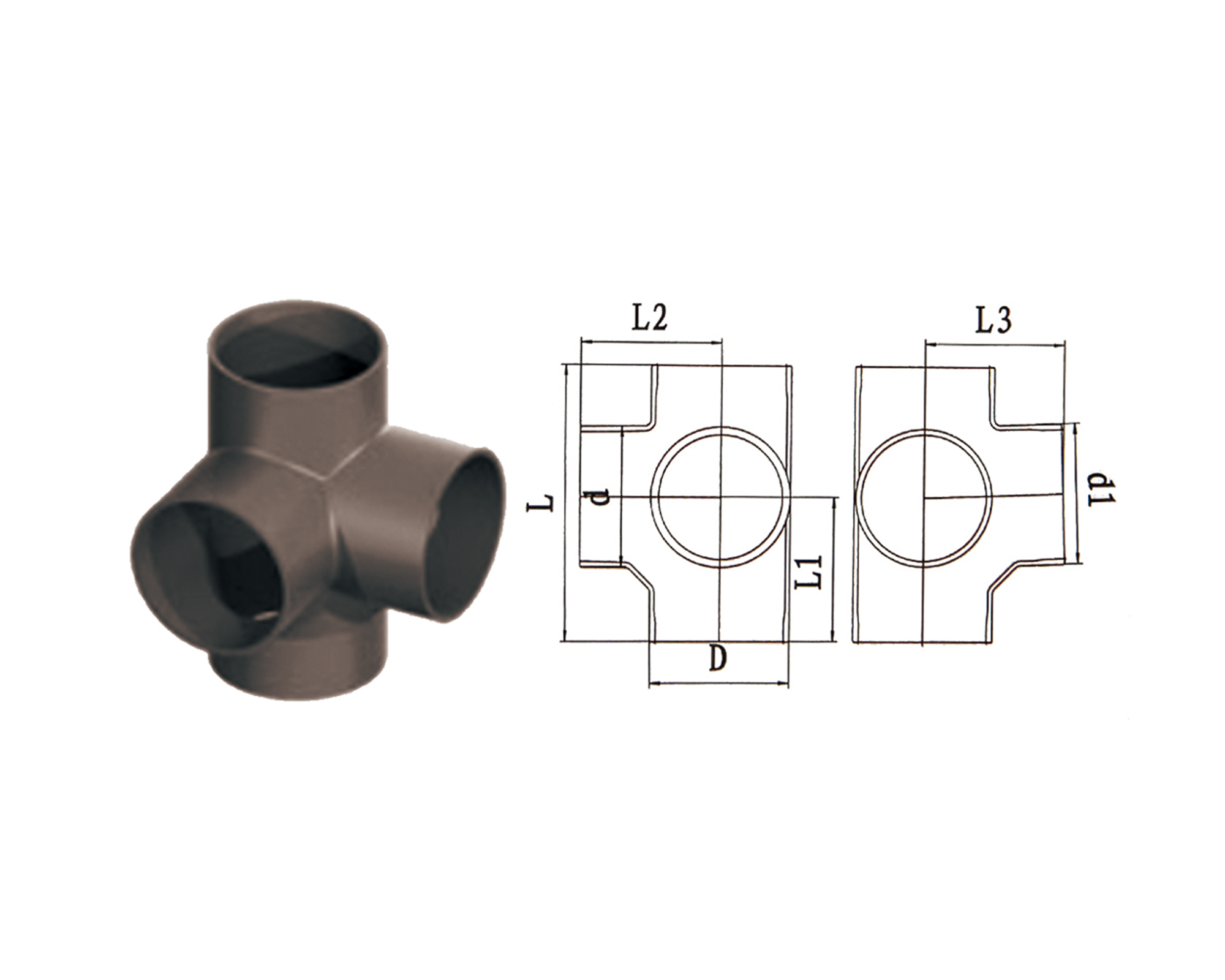

One original product photograph is available. The technical chart is recreated below in English.
W1 Spatial Cross
The source product figure supplies DN-based reference dimensions. The table below reproduces those data without inventing omitted values.
Aurorvix coordinates export enquiries; specifications and documentation are confirmed for the actual ordered item.
Product parameters
English translation of source webpage claims. Not independently certified for a specific shipment.
| Product family | W1-type cast iron drainage fitting |
|---|---|
| Reference standard (as printed) | GB/T 12772-2016 W1 |
| Internal corrosion protection | Highly chlorinated polyethylene (HCPE), source description |
| External corrosion protection | Highly chlorinated polyethylene (HCPE), source description |
| Joint / connection | Stainless-steel clamp / no-hub connection, source description |
| Shipping | Road, rail or sea, subject to quotation |
| Configuration | Confirm size, tolerances and connection with approved order drawing |
W1 fitting dimensions
Reference values manually transcribed from this product's archived technical figure, not copied from adjacent products.
| Primary DN (mm) | Branch A DN (mm) | Branch B DN (mm) | L (mm) | L1 (mm) | L2 (mm) | L3 (mm) |
|---|---|---|---|---|---|---|
| 100 | 50 | 50 | 139 | 78 | 99 | 99 |
| 100 | 100 | 100 | 191 | 104 | 104 | 104 |
| 150 | 100 | 100 | 240 | 128 | 140 | 140 |
Three nominal-diameter values are grouped in the source header. The product diagram shows L, L1, L2 and L3; confirm port orientation. Values and compliance must be confirmed with current approved engineering drawings.
Confirm before ordering
Get pricing for your project
W1 Spatial Cross
Send DN, quantity, destination and drawing requirements.
