B-Type y(h) Vent Pipe
Product view · English technical dimensions · Export RFQ

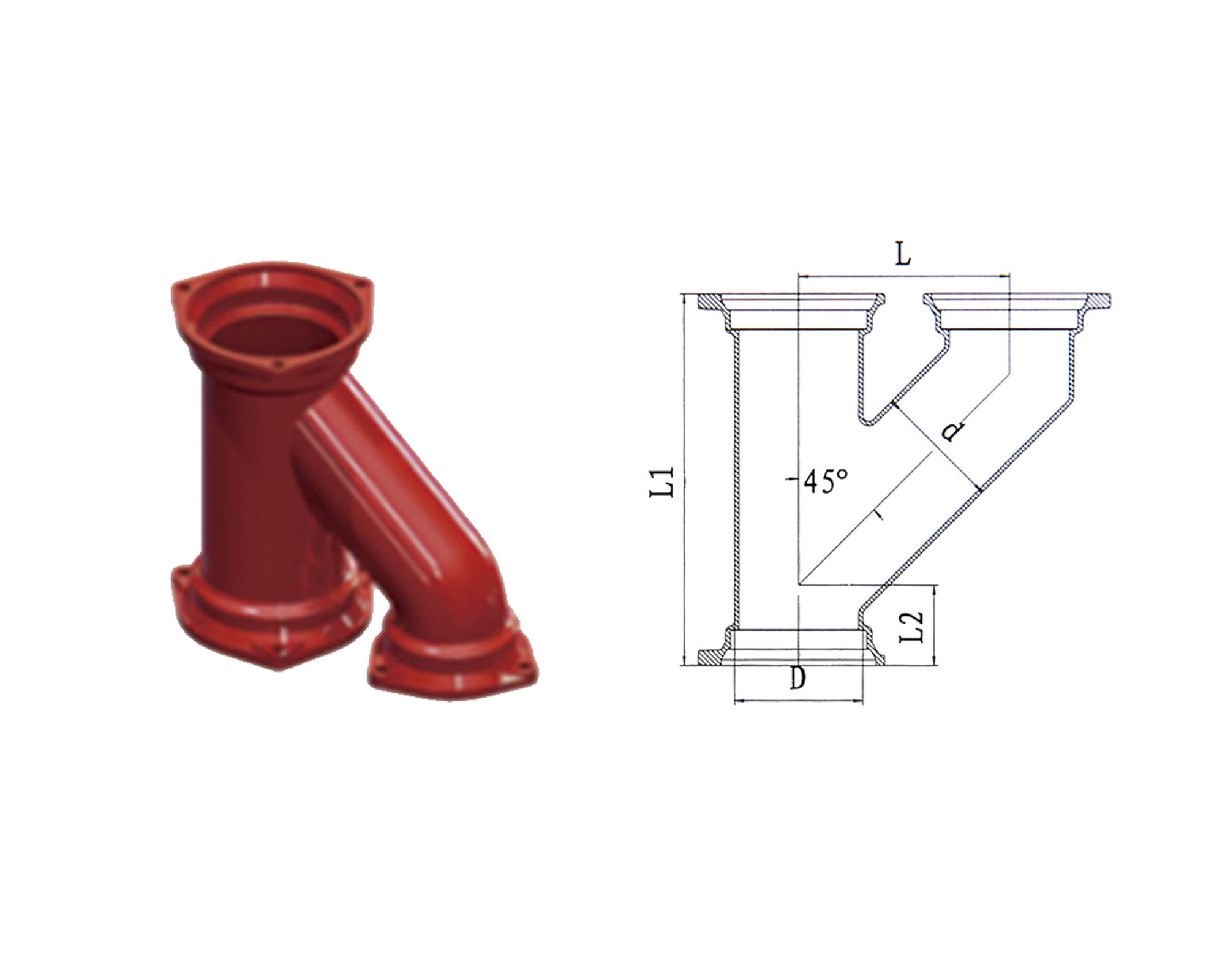

One original product view is available. Technical figures have been transcribed below without reproducing the source's Chinese chart image.
B-Type y(h) Vent Pipe
For B-type cast iron drainage projects. Check the dimension chart, then provide connection type, DN, quantity and destination for a quotation.
Product parameters
| Product family | B-type cast iron drainage fitting |
|---|---|
| Source-listed joint | Flanged connection; exact flange and gasket geometry requires drawing |
| Inner protection | Highly chlorinated polyethylene (HCPE), source text |
| Outer protection | Highly chlorinated polyethylene (HCPE), source text |
| Source-listed use | Domestic wastewater and building rainwater drains |
| Source-listed shipping modes | Road, railway or sea |
| Reference standard | Not specified in this individual archived product page |
Archived source text is not independent proof of current compliance, flange dimensions, test performance or applicable product certification.
English dimensional reference
Numeric values transcribed from the exact archived product figure. Dimensions are in millimetres; source symbols are preserved.
| Primary DN (source, mm) | Secondary DN (source, mm) | Unlabeled size C (mm) | L (mm) | L1 (mm) | L2 (mm) |
|---|---|---|---|---|---|
| 100 | 75 | 150 | 150 | 262 | 52 |
| 100 | 100 | 160 | 160 | 298 | 69 |
| 100 | — | 180 | 180 | 318 | 69 |
| 150 | 100 | 190 | 190 | 315 | 56 |
| 150 | 150 | 240 | 240 | 404 | 82 |
The y(h) type is a distinct product from H type. One secondary size is absent in the source and has not been fabricated. Confirm size, measurement points, tolerances and fitting interfaces against the approved drawing before purchase.
Request pricing and approved drawings
B-Type y(h) Vent Pipe
Provide DN, flange arrangement, quantity, specifications and delivery port.
Email: samson@aurorvix.com
