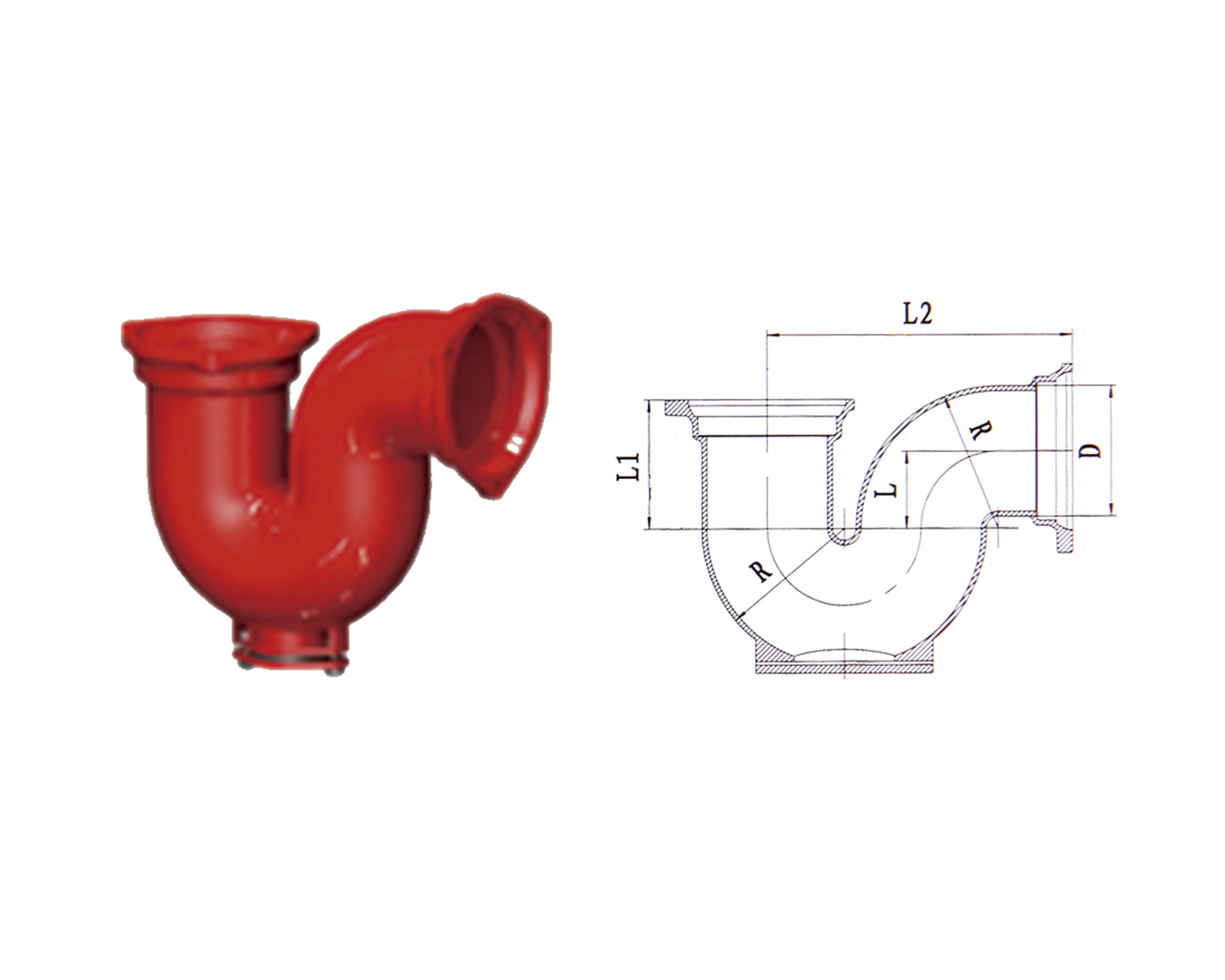

One original product view is available. Technical figures have been transcribed below without reproducing the source's Chinese chart image.
B-Type P Access Bend
For B-type cast iron drainage projects. Check the dimension chart, then provide connection type, DN, quantity and destination for a quotation.
Product parameters
| Product family | B-type cast iron drainage fitting |
|---|---|
| Source-listed joint | Flanged connection; exact flange and gasket geometry requires drawing |
| Inner protection | Highly chlorinated polyethylene (HCPE), source text |
| Outer protection | Highly chlorinated polyethylene (HCPE), source text |
| Source-listed use | Domestic wastewater and building rainwater drains |
| Source-listed shipping modes | Road, railway or sea |
| Reference standard | Not specified in this individual archived product page |
Archived source text is not independent proof of current compliance, flange dimensions, test performance or applicable product certification.
English dimensional reference
Numeric values transcribed from the exact archived product figure. Dimensions are in millimetres; source symbols are preserved.
| DN (mm) | L (mm) | L1 (mm) | L2 (mm) | R (mm) |
|---|---|---|---|---|
| 50 | 39 | 74 | 172 | 69 |
| 75 | 53 | 94 | 218 | 96 |
| 100 | 65 | 109 | 258 | 120 |
The source lists three nominal sizes for this P access bend. Dimensions L, L1, L2 and R are preserved as printed. Reference values come from the archived source figure and are not independently certified. Confirm dimensions and tolerances against an approved order drawing before purchasing.
Request pricing and approved drawings
B-Type P Access Bend
Provide DN, flange arrangement, quantity, specifications and delivery port.
