W1 TY-Type Tee
W1 drainage fitting · DN-specific drawing required
One original product image is available. The archived source does not supply a numerical DN-specific dimension chart.
W1 TY-Type Tee
The archived source provides a product diagram but no numeric DN-specific dimensions. Request an approved technical drawing with your quotation.
Aurorvix coordinates export enquiries; specifications and documentation are confirmed for the actual ordered item.
Product parameters
English translation of source webpage claims. Not independently certified for a specific shipment.
| Product family | W1-type cast iron drainage fitting |
|---|---|
| Reference standard (as printed) | GB/T 12772-2016 W1 |
| Internal corrosion protection | Highly chlorinated polyethylene (HCPE), source description |
| External corrosion protection | Highly chlorinated polyethylene (HCPE), source description |
| Joint / connection | Stainless-steel clamp / no-hub connection, source description |
| Shipping | Road, rail or sea, subject to quotation |
| Configuration | Confirm size, tolerances and connection with approved order drawing |
W1 fitting dimensions
The available source shows a product diagram only. Dimensions have not been inferred from similarly named fittings.
No numeric source dimension table was supplied for this product. Please request a complete DN-specific technical drawing with the quotation.

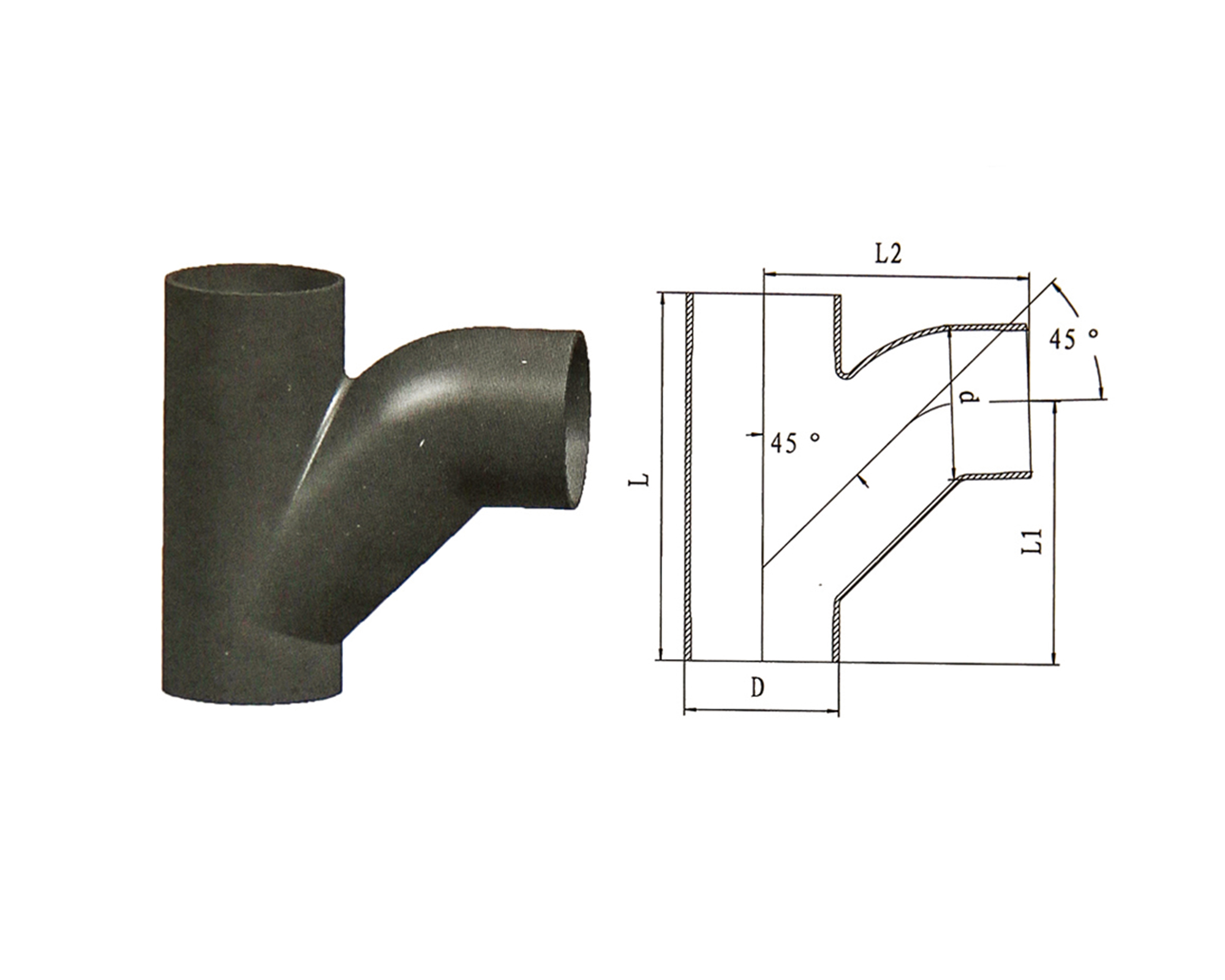

No dimensional table is included in the archived product HTML or detail-image folder. The product illustration shows L, L1 and L2 symbols but gives no numeric sizes. Request signed product drawing and DN options before buying. Values and compliance must be confirmed with current approved engineering drawings.
Confirm before ordering
Get pricing for your project
W1 TY-Type Tee
Send DN, quantity, destination and drawing requirements.
Email: samson@aurorvix.com
